8 Set up
8 .1 Select the mode
The following modes can be adjusted on DPT10:
l Flow measurement
l Level measurement
l Differential pressure measurement
8 .2 Flow measurement
In flow measurement, normally DPT10 is used without isolating
diaphragm.
Before adjusting DPT10, you have to clean the effective pressure lines
and the instrument must be filled with the medium.
+ –
I
II
+
6 7
3
2 4
A B

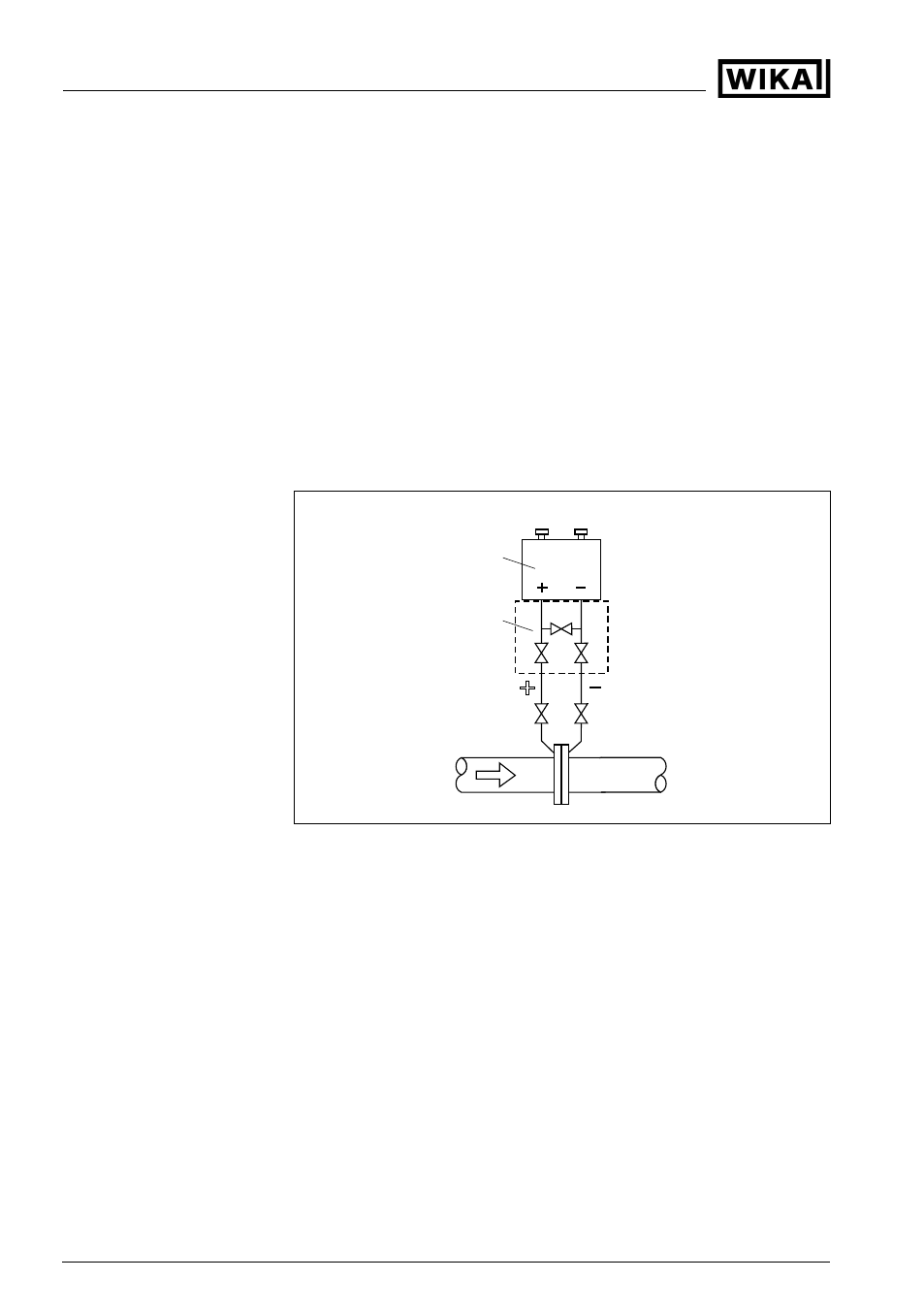

Fig. 44: Preferred installation for gases
I DPT10
II 3 -fold valve block
2 .4 Inlet valves
3 Breather valve
6 .7 Vent valves on DPT10
A, B Blocking valves
Instructions
Installation for gases
