INDOOR DISPLAY
LEDARRAY
MNS
SERIES
Model
(weight)

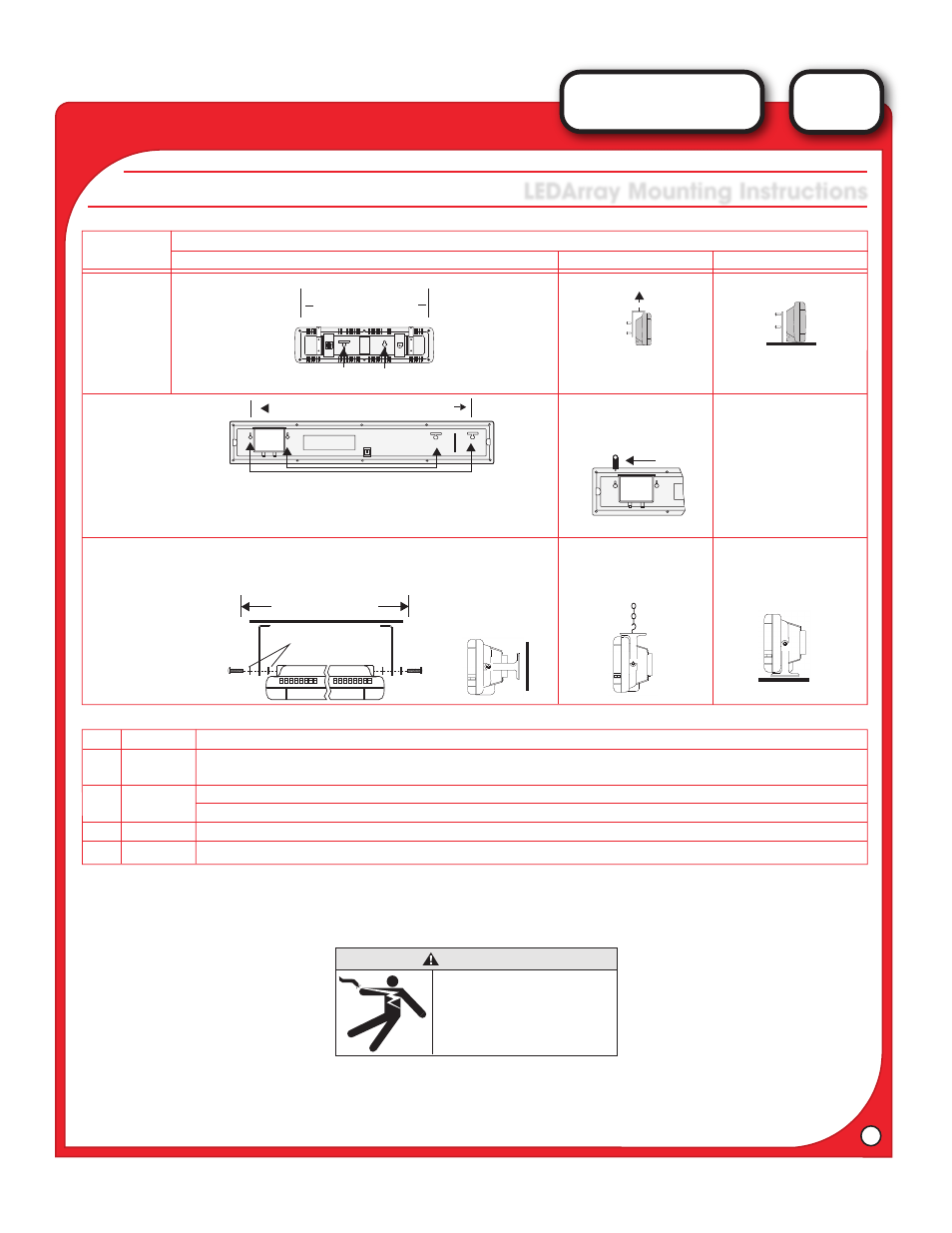

Mounting Instructions
Counter Ceiling Wall
PPD
(1 lb 5 oz, 595.35 g)
BEFORE MOUNTING A SIGN, REMOVE POWER FROM THE SIGN!
NOTE: LEDArray signs are for indoor use only and should not be continuously exposed to direct sunlight.
NOTE: Mounting hardware that is used to hang or suspend a sign must be able of supporting at least 4 times the
weight of the sign.
WARNING
Hazardous voltage.
Contact with high voltage may
cause death or serious injury.
Always disconnect power
to sign prior to servicing.
Wall mounting holes 4" (10.2 cm) apart
Ceiling mounts
9 3/8" (23.8 cm) apart
The mounting bracket and
screws are included.
LEDArray
(6.25 lb, 2.83 kg)
or
A mounting kit can be used to mount the sign on a wall, ceiling, or counter.
(The kit contains brackets that attach to the end of the sign and can swivel.)
1
Wall mounting holes 24" (61 cm) or 16" (40.6 cm) apart
Flip-up ceiling mounts 24" (61 cm) apart
The flip-up ceiling mounts will
come out if the sign is turned
over. The sign will stand up if placed
on a counter. However, for
greater stability, use a mounting
kit.
MegaDot
(12.25 lbs, 5.6 kg)
1. Attach two wall brackets in the mounting kit to a wall 46 3/4”
(118.7 cm) apart. (measured from the center of each bracket).
2. Attach the mounting brackets to the sign as shown.
Wall mounting distance
Lock washers
Using the mounting kit and a
chain (not supplied in the kit),
mount the sign from the ceiling
as shown: The sign will stand up if placed
on a counter. However, for
greater stability, use the
mounting kit:
The mounting bracket and
screws are included.
LEDArray Mounting Instructions
3
P/N
---
MNS-Cable
MNS-Adpt
MNS-Cntr
Ferrite: Insert the end of the 4-conductor data cable (B) with the ferrite core into the RJ11 port on the electronic
display - the ferrite core must be closer to the electronic display than it is to the modular network adapter.
DESCRIPTION
RS485 8ft cable
RS485 1ft cable
Modular Network Adapter
Contact Monitor & Sign Controller
A
B
C
*D
Rev. 2
FIG.
See Pg. 4 Figure 1
*See Pg. 6 Enclosures
