Features

109 Portwatch Way Wilmington, N.C. 28412 Phone: (800) 251-2512 Fax: (800) 251-9878

Internet: www.ledinc.com Email: [email protected]

Graphic Annunciators * Water Leak Detection

Fireman’s Smoke Control Panels * ARA Systems

SS

SERIES

The unit is to be connected to normally open contacts. When a device is activated, the field contact will close
and activate the appropriate indicator on the Status Panel.

The indicator will remain lit, even if the device resets. The sonalert will sound to alert the operator. This may
be silenced by operating the switch marked “SILENCE.” Operation of the silence switch will not affect the
indicators.

To clear the Display, operate the switch marked “RESET.” When the unit is reset, the sonalert will resound to
remind the operator to return the Silence Switch to its “Normal” position.

A visual indication of the CCTV camera is on and its physical location can also be displayed to assist the
operator in security operations.

Operation

ANNUNCIATORS

SECURITY STATUS

General Description

The Security Status Annunciator, SS Series, provides a means to monitor security devices and pinpoint the
location. This allows the operator to keep track of entrances, exits and secured areas.

The SS Series is similar to the Standard Annunciator in construction. A Floor Plan of the protected area will be
shown on the front of the unit. Each monitored device will be shown on the Floor Plan, along with its corre-
sponding Alarm indicator.

The unit includes Lamp Test function, Audible Alarm, Auxillary Contact, and Reset Switch. Input Power
Requirements are 120 VAC that is converted to 12 VDC for stand alone systems, or the annunciator can be
powered from the security panel.

Custom switches can be provided at the customer’s request. These may be used to operate door strikes,
alarm device bypass, or any other required function. These switches, including the system switches, may be
key-operated as an option.

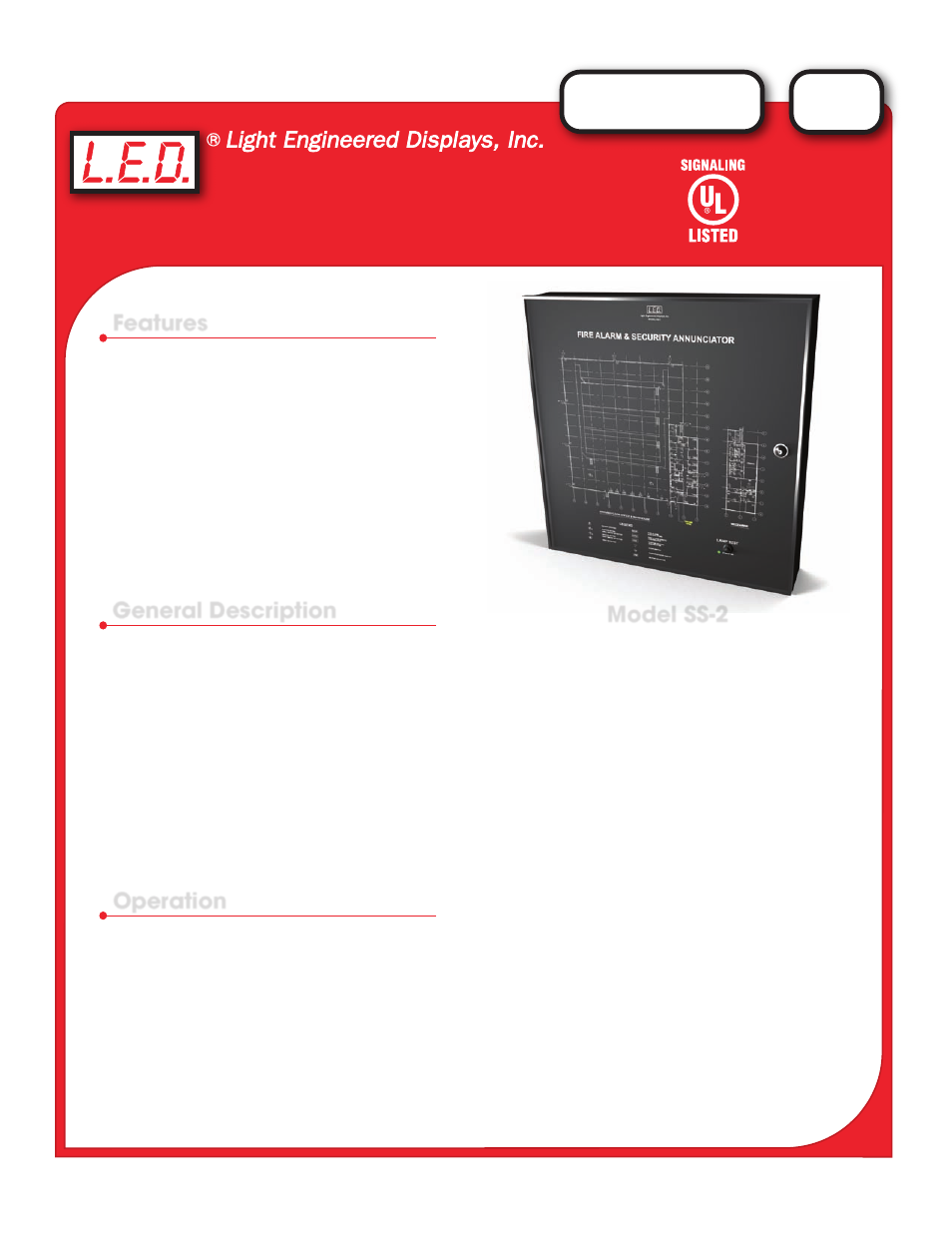

Model SS-2
