Flash Memory Upgrade
27
27
6. The Open File window opens. Select the correct HEX file that
contains the updated version of the firmware for RC-108 (for example
44M_V1p2.hex) and click Open.
7. Press the keyboard shortcut key F3 (or select the
“Communication/RS232” command from the Settings menu, or press
the keys: Alt SCR).
The “RS232” window appears. Change the COM port according to the
configuration of your computer and select the 9600 baud rate:

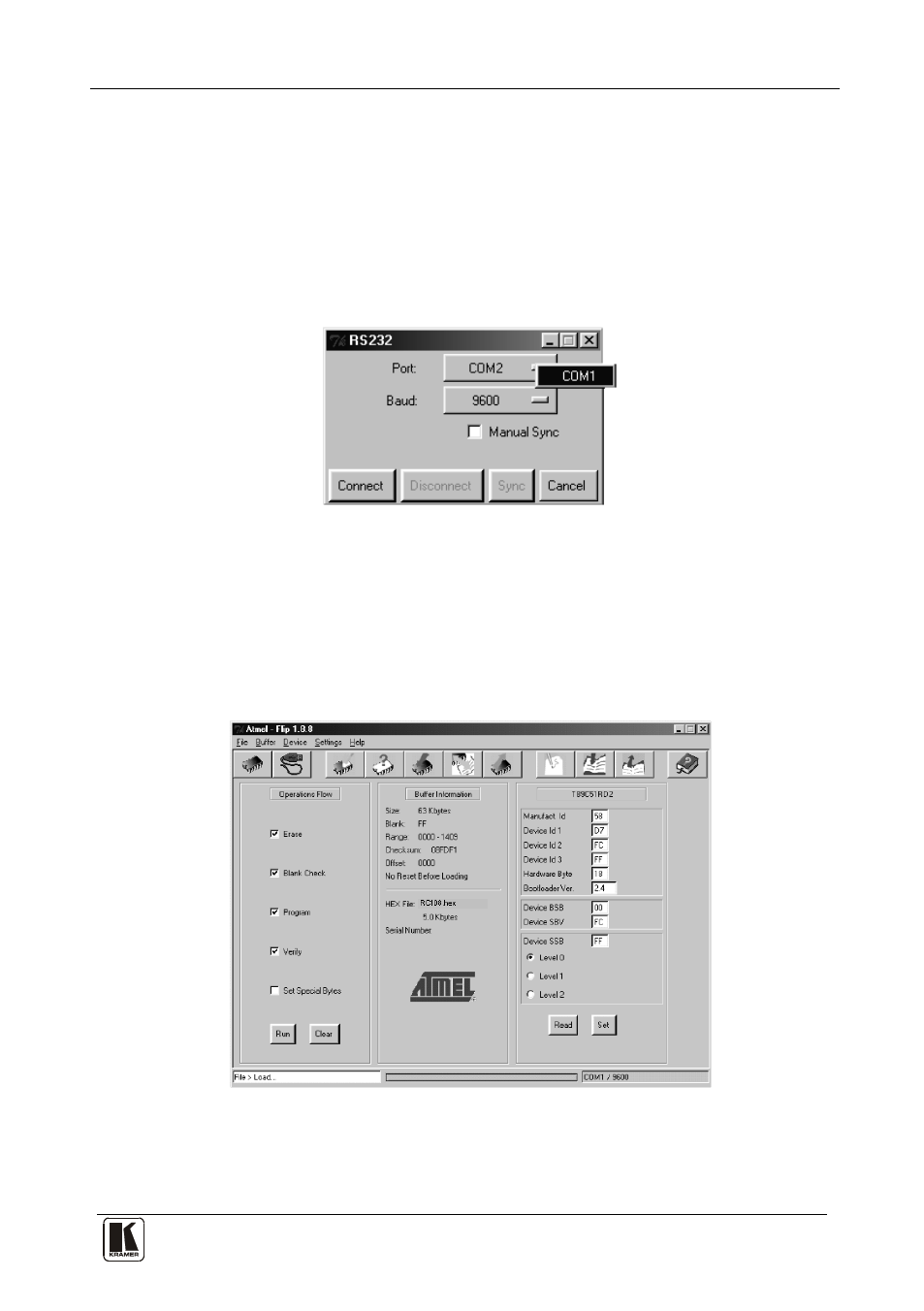

Figure 22: RS-232 Window
8. Click Connect.
In the “Atmel – Flip” window, in the Operations Flow column, the
Run button is active, and the name of the chip appears as the name of
the third column: AT89C51RD2.
Verify that in the Buffer Information column, the
“HEX File: RC108.hex” appears.
Figure 23: Atmel – Flip Window (Connected)
