Configuring a TP-107AVR System
14
5. On the TP-122:
 Adjust 1
 If necessary, set the H SYNC and V SYNC switches
the video output signal level and/or cable compensation
equalization level, if required
2 on the
underside

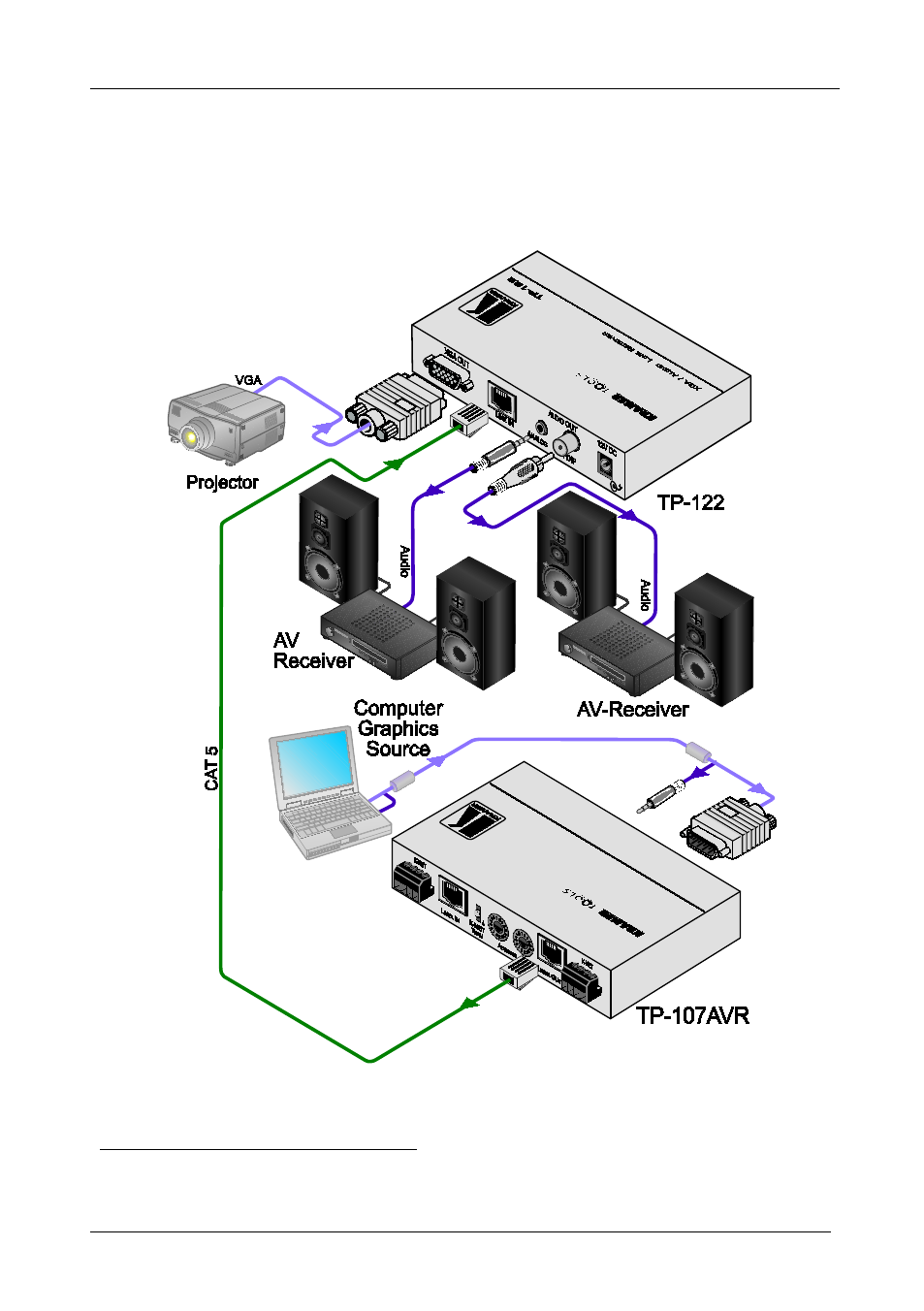

Figure 9: Connecting the XGA/Audio Line Transmitter/Receiver System
1 Use a screwdriver to carefully rotate the trimmer, adjusting the appropriate level
2 By default, both switches are set down (for negative V SYNC and H SYNC polarity)
