Figure 4 and Table 6 define the underside of the TP-122 XGA/Audio Line
Receiver:

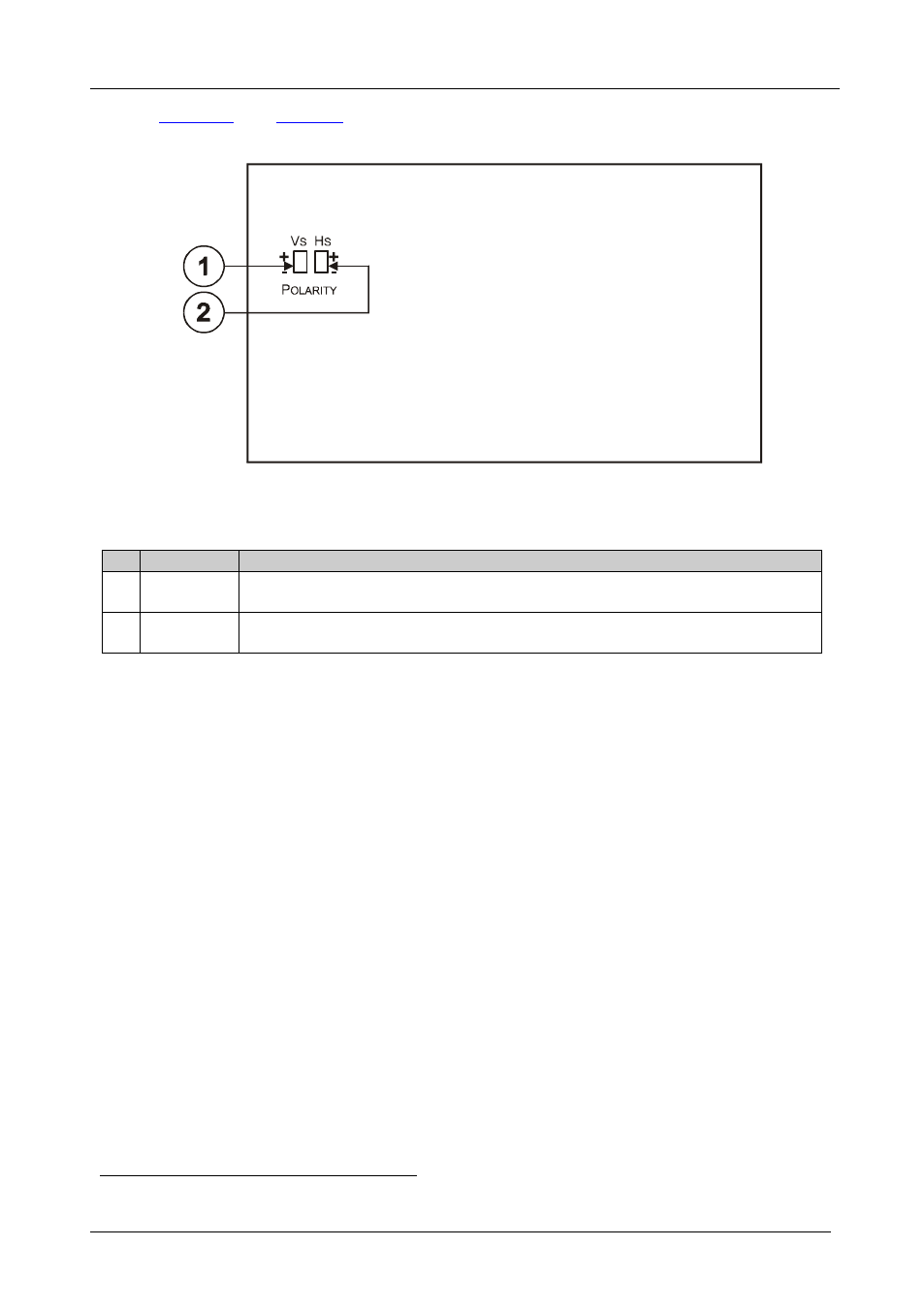

Figure 4: TP-122 XGA/Audio Line Receiver (Underside)
Table 6: TP-122 XGA/Audio Line Receiver (Underside) Features
# Feature Function
1 VS Switch Slide the switch down, to set the V SYNC to negative polarity; slide the switch up 1 ,
to set the V SYNC to positive polarity
2 HS Switch Slide the switch down, to set the H SYNC to negative polarity; slide the switch up 1 ,
to set the H SYNC to positive polarity
1 By default, both switches are set down (for a negative V SYNC and H SYNC polarity)
