Your Line Transmitter, Receiver and Presentation Controllers
9
9
4.2 Your TP-122 XGA/Audio Line Receiver

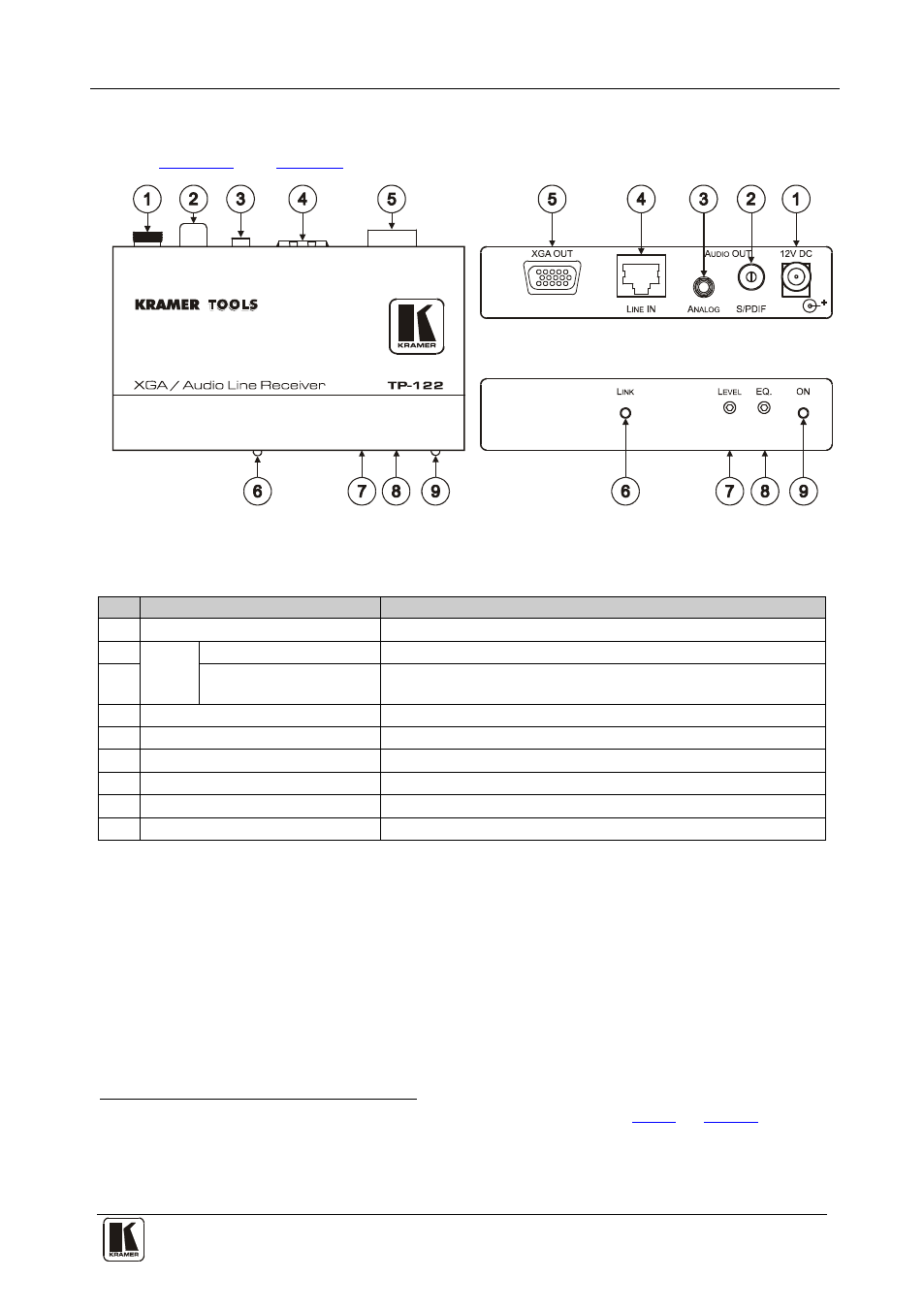

Figure 3 and Table 5 define the TP-122 XGA/Audio Line Receiver:
Figure 3: TP-122 XGA/Audio Line Receiver
Table 5: TP-122 XGA/Audio Line Receiver Features
# Feature Function
1 12V DC +12V DC connector for powering the unit
2
A
UDI
O
OU
T S/PDIF RCA connector Connects to the digital audio acceptor
3 ANALOG 3.5mm Mini
Jack
Connects to the analog audio acceptor
4 LINE IN RJ-45 Connector Connects to 1
5
LINE OUT RJ-45 connector on the TP-107AVR
XGA OUT 15-pin HD Connector Connects to the XGA acceptor
6 LINK LED Illuminates when receiving the correct input signal
7 LEVEL Trimmer Adjusts 3 the output signal level
8 EQ. 2 Adjusts Trimmer 3
9
the cable compensation equalization level
ON LED Illuminates when receiving power
1 Using an STP CAT 5 cable with RJ-45 connectors at both ends (the PINOUT is defined in Table 9 and Figure 12 )
2 Degradation and VGA/XGA signal loss can result from using long cables (due to stray capacitance), sometimes leading to a
total loss of sharpness in high-resolution signals
3 Use a screwdriver to carefully rotate the trimmer, adjusting the appropriate level
