6.1 Setting the DIP-Switches
This section describes the machine setup and DIP-switch selection. Figure 7
and Table 5 describe the
VS-808xl DIP-switches.
Table 5: DIP-switch Settings
DIPS
Function
Description
1, 2, 3
Self Address
Determines the machine number
4
RS-485 Term
1
ON for RS-485 Line Termination
OFF for no RS-485 Line Termination
5
Reply
ON enables reply from the switcher to
PC
OFF disables reply from the switcher to
PC
6, 7
Reserved
OFF
8
RS-232\RS-485 ON enables RS-232 communication
between the switcher and PC
OFF enables RS-485 communication
between the switcher and PC
1 2
4 5
8
3

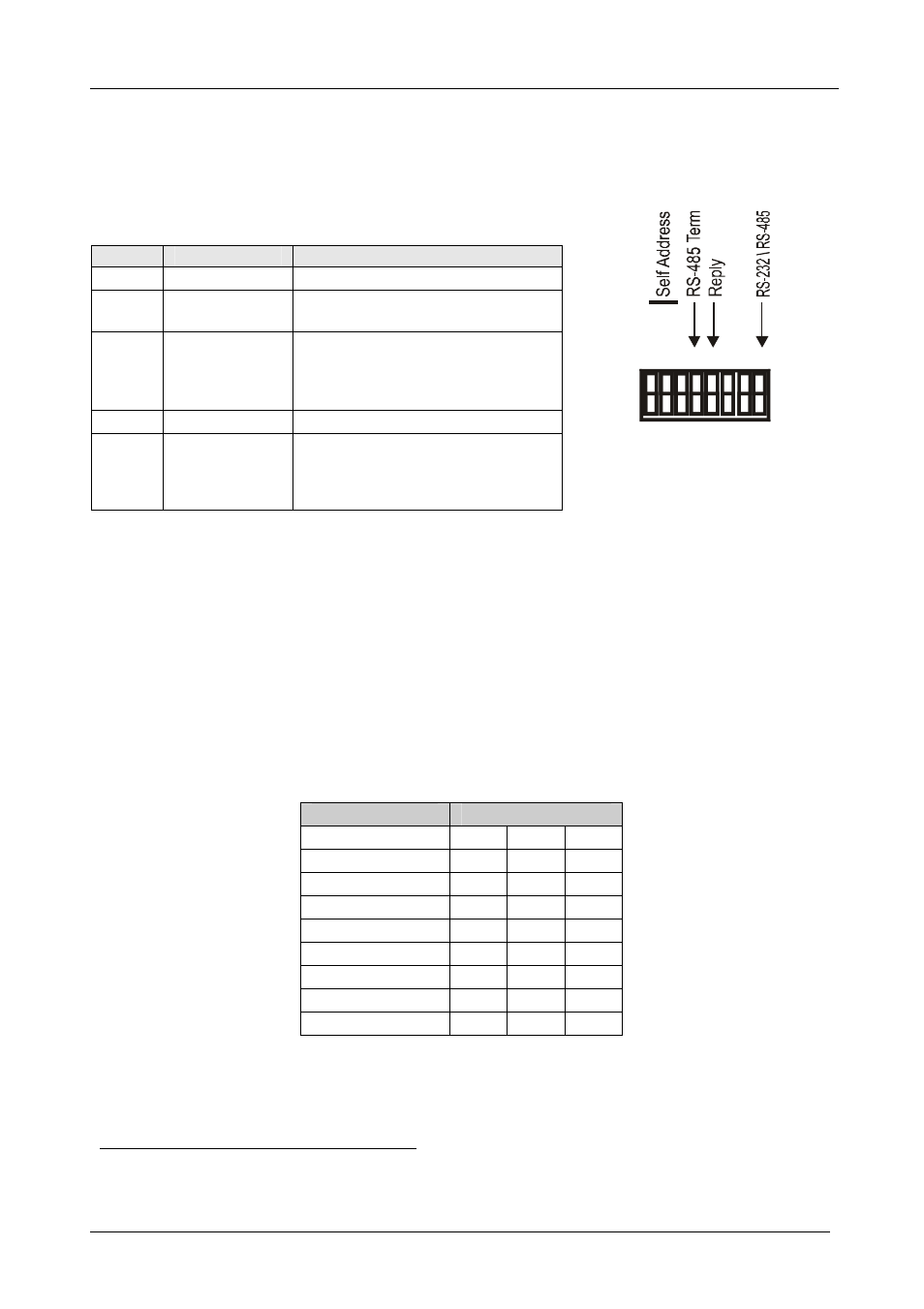

Figure 7: DIP-switch
Configuration
To set the DIP-switches, use a small flathead screwdriver to move the DIP-
switches to the ON or OFF position as described in the following sections.
6.1.1 Self Address DIP-Switches
The Self Address DIP-switch determines the position of a
VS-808xl unit in
the sequence, specifying which
VS-808xl unit is being controlled, when
several
VS-808xl units are controlled by a PC or serial controller. Set the
Self Address on a
VS-808xl unit via DIP-switches 1, 2, and 3, according to
Table 6.
Table 6: Self Address DIP-switch Settings
Self Address
DIPs
3
2
1
1
Master
ON
ON
ON
2
ON
ON
OFF
3
ON
OFF
ON
4
ON
OFF
OFF
5
OFF
ON
ON
6
OFF
ON
OFF
7
OFF
OFF
ON
8
OFF
OFF
OFF
Up to 8 Matrix Switchers may be cascaded for control via a single port by
configuring one Matrix Switcher as a Master (Self Address = 1)
1
, while all
the others are assigned as Slave Matrix Switchers or an ID other than "1".
1 In the case of interconnection between more than two RS-485 receivers-transmitters (including PC), the termination resistor
must be disconnected on all the devices, except for the first (usually the PC) and last units on the communication line
