VS-5x5 - Operating the VS-5x5 17
Actions no longer require user confirmation and the TAKE button no longer
illuminates.
7.4.2 Confirming a Switching Action
To confirm a switching action (in CONFIRM mode), do the following:
1. Press an OUT-IN combination.
The corresponding 7-segment display flashes. The TAKE button also
flashes.
2. Press the flashing TAKE button to confirm the action.
The corresponding 7-segment display no longer flashes. The TAKE button
illuminates.
3. To confirm several actions (in CONFIRM mode), do the following:
Press each OUT-IN combination in sequence.
The corresponding 7-segment display flashes. The TAKE button also
flashes.
4. Press the flashing TAKE button to confirm all the actions.
The corresponding 7-segment display no longer flashes. The TAKE button
illuminates.
7.5 Storing/Recalling Input/Output Configurations
You can store and recall up to 10 input/output configurations using the 5 input
buttons and the 5 output buttons, as Figure 12 illustrates:
The 10 input/output configurations (or setups) also include the relevant audio-follow-video / breakaway option
definition

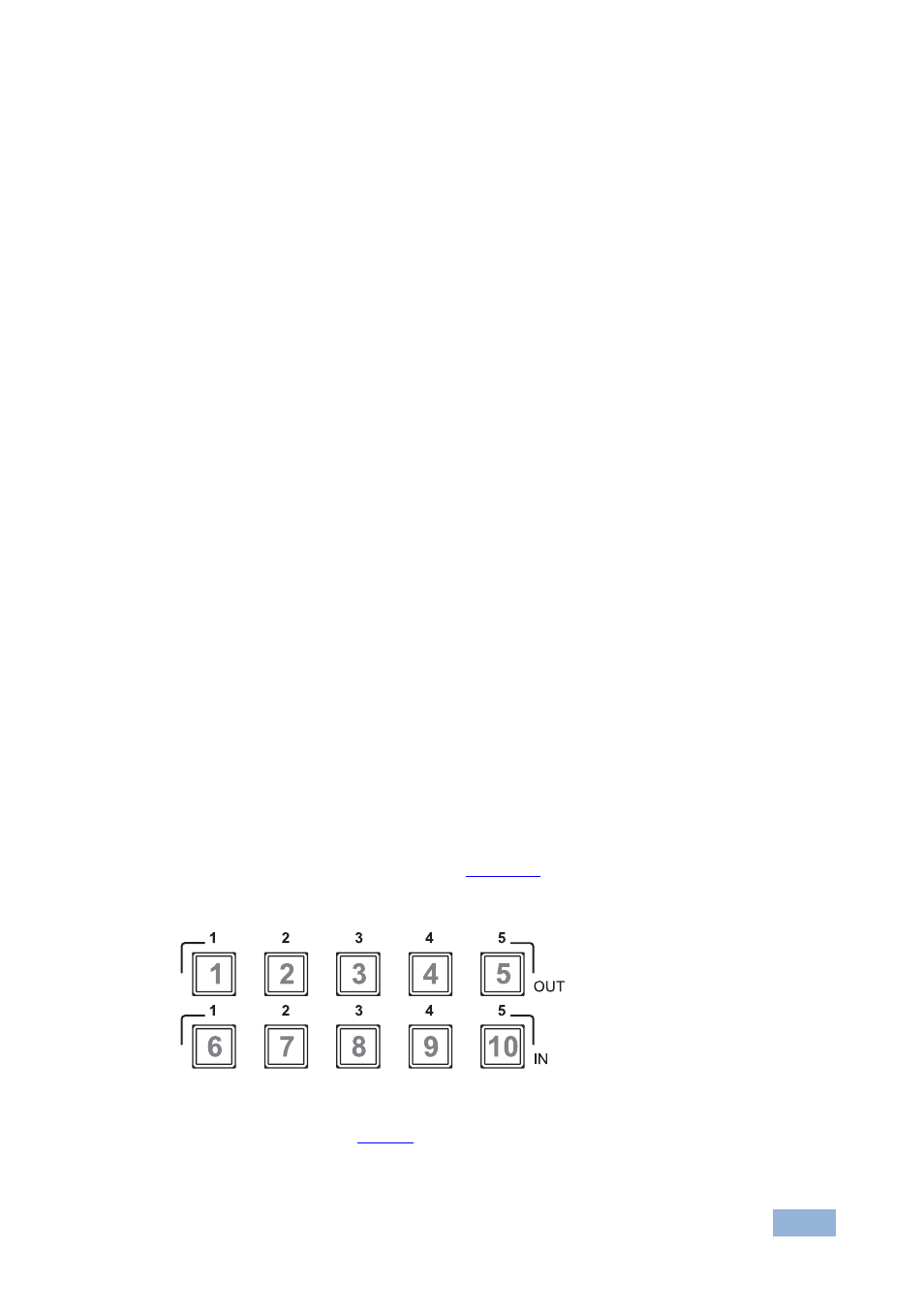

Figure 12: Storing and Recalling using the Input / Output Buttons
The gray numbers (1 to 10) in Figure 12 that illustrate the corresponding store/recall configuration numbers,
are for the purpose of illustration only and do not appear on the buttons
