8 VS-5x5 - Connecting the VS-5x5 5x5 Video Audio Matrix Switcher
5. Connect the power cord.
We recommend that you use only the power cord that is supplied with this machine

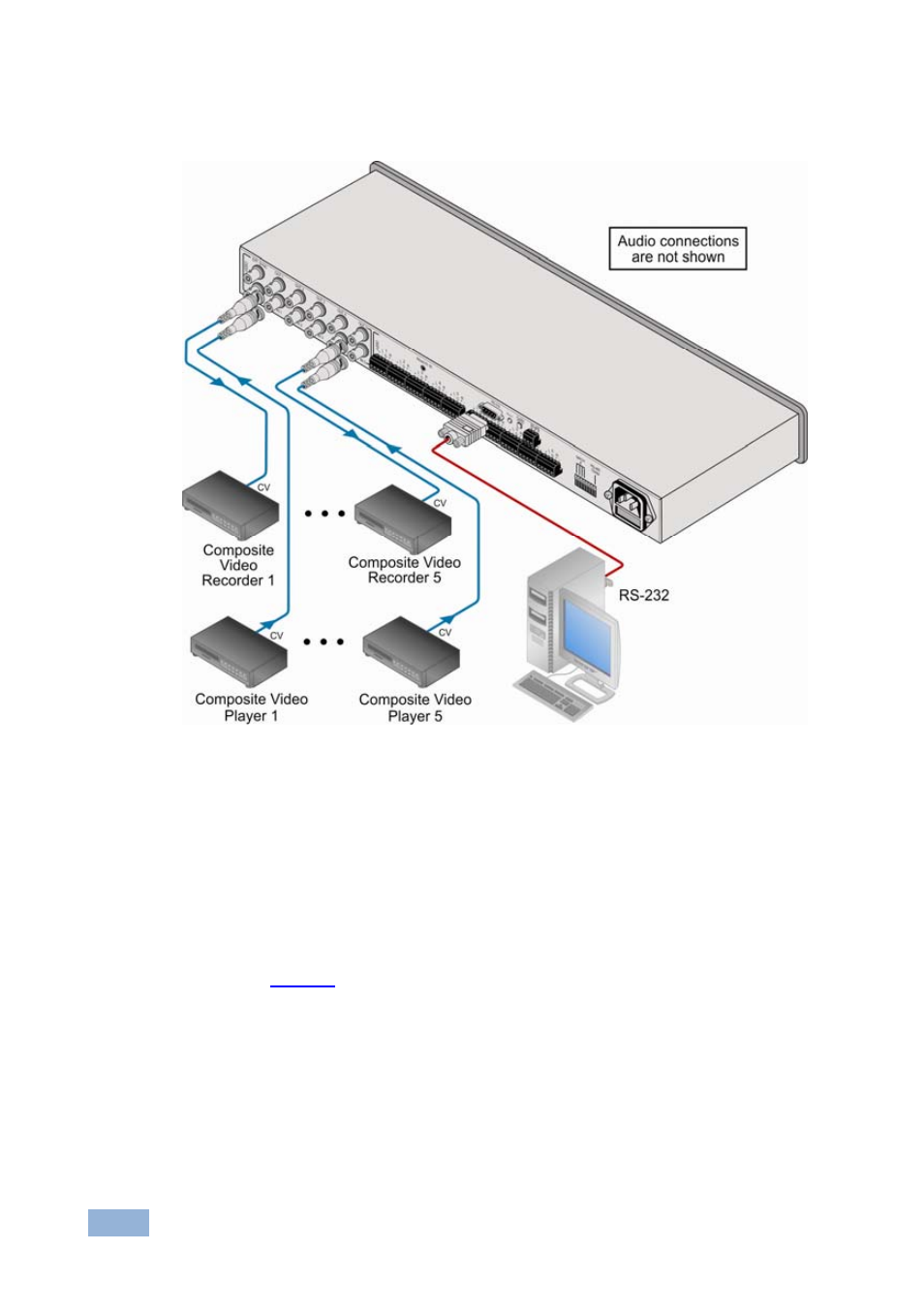

Figure 3: Connecting the VS-5x5 5x5 Video Audio Matrix Switcher
5.2 Connecting to the VS-5x5 via RS-232
You can connect to the unit via a crossed RS-232 connection, using for example,
a PC. A crossed cable or null-modem is required as shown in method A and B
respectively. If a shielded cable is used, connect the shield to pin 5.
Method A ( Figure 4 )—Connect the RS-232 9-pin D-sub port on the unit via a
crossed cable (only pin 2 to pin 3 , pin 3 to pin 2 , and pin 5 to pin 5 need be
connected) to the RS-232 9-pin D-sub port on the PC.
Note: There is no need to connect any other pins.
