44 VP-725NA - Configuring and Controlling the VP-725NA

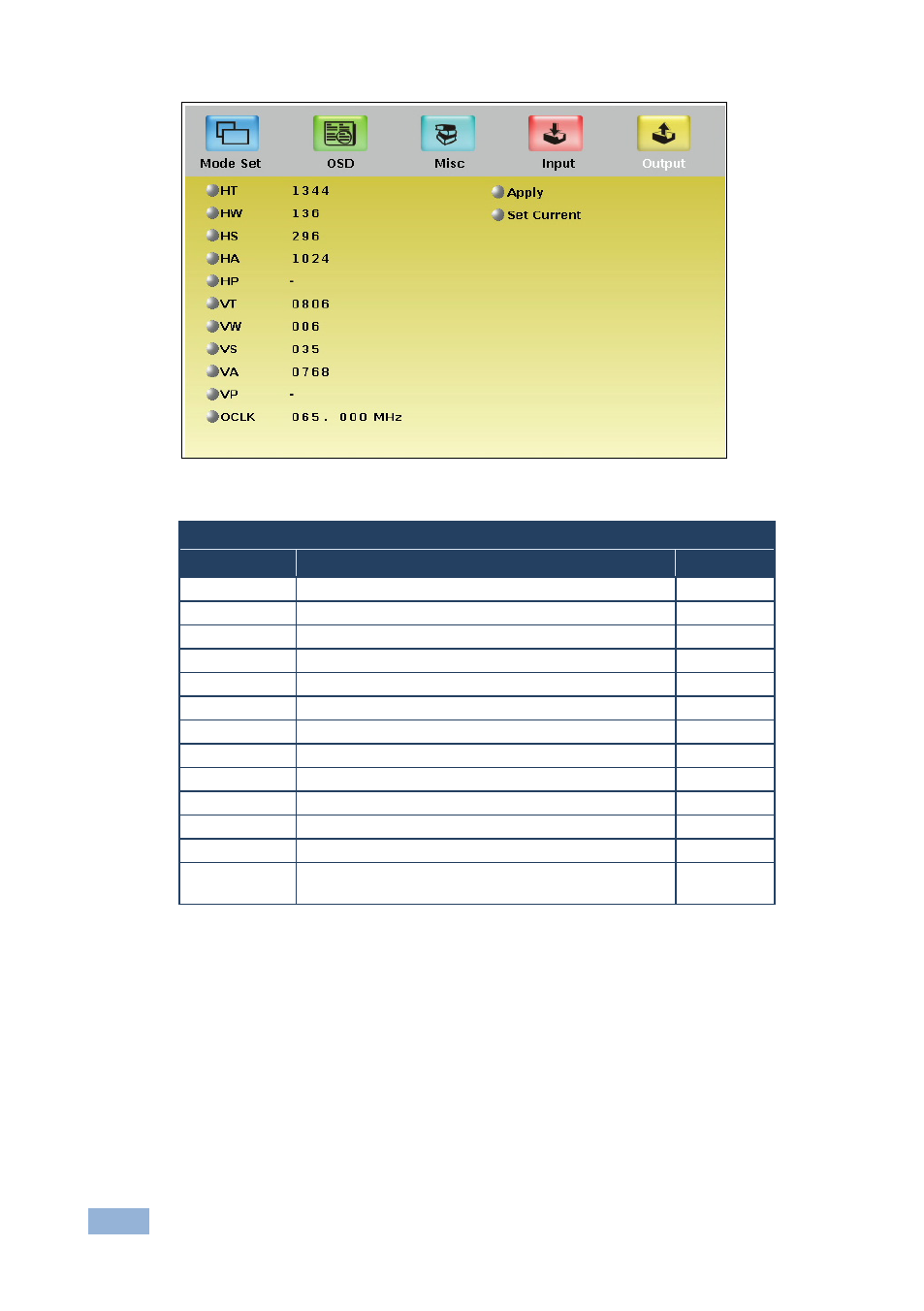

Figure 25: Output Setup Screen
Output Functions
Setting Function Default
HT Horizontal total 1344
HW Horizontal sync pulse width 136
HS Horizontal active start point 296
HA Horizontal active region 1024
HP Horizontal polarity
VT Vertical total 806
VW Vertical sync pulse width 6
VS Vertical active start point 35
VA Vertical active region 768
VP Vertical polarity
OCLK Output clock 65
Apply Press to apply the settings
Set Current Import the values of the currently selected output
resolution into the User Mode Setting
