16 VP-725NA - Connecting the VP-725NA Presentation Switcher/Scaler
 Connect the UXGA connector to the UXGA acceptor, for example, a
monitor (not illustrated in
Figure 3 )
7. Connect the MASTER OUT terminal block connector to the balanced audio
input on the audio amplifier, and route the audio input (corresponding to the
converted video input) to the MASTER OUT.
8. Connect the power cord (not illustrated in Figure 3 ).
We recommend that you use only the power cord that is supplied with this machine.
9. If required connect:
 A PC (see Section 5.3 ).
 The Ethernet port (see Section 5.4 ).

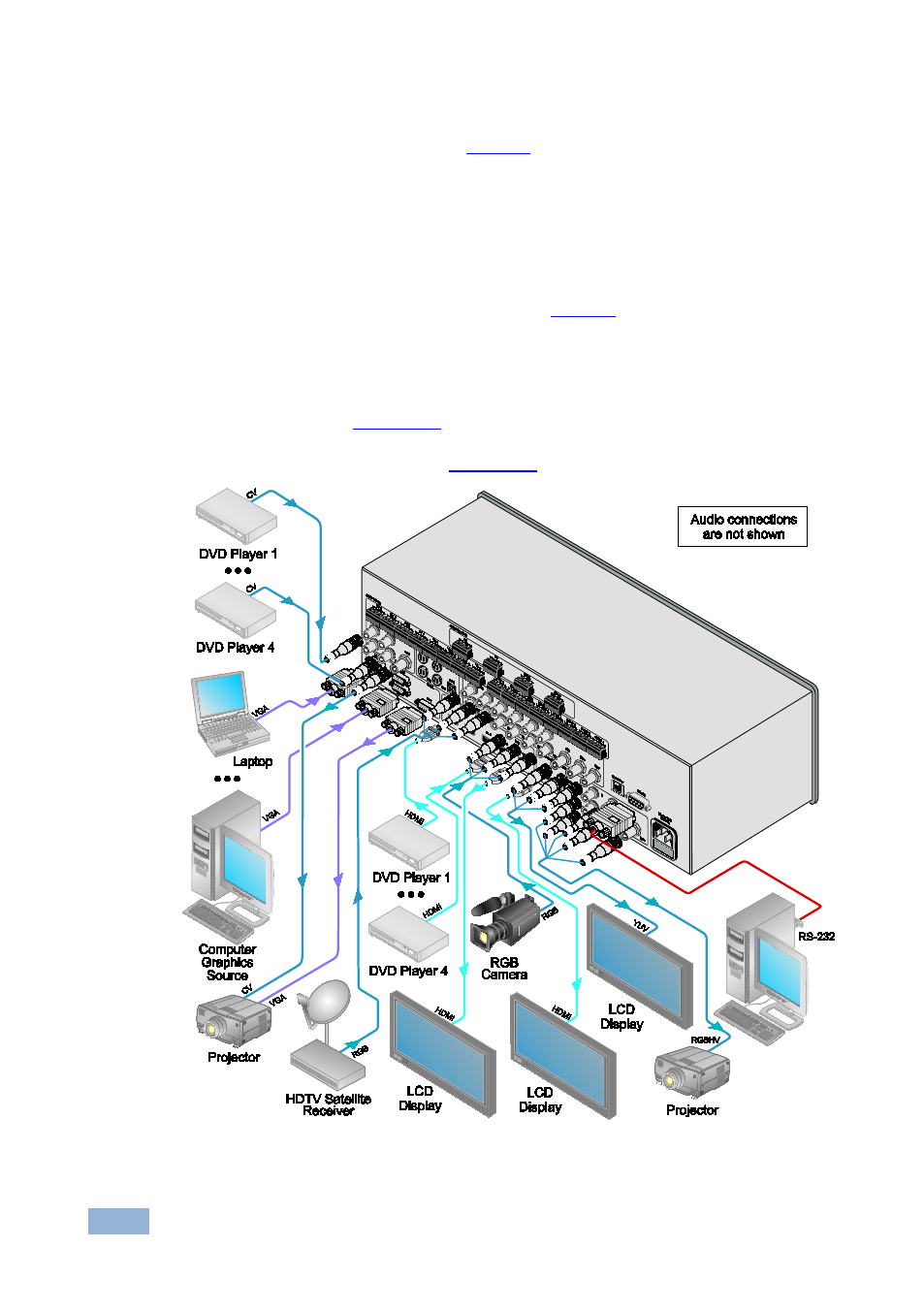

Figure 3: Connecting to the VP-725NA Presentation Switcher/Scaler
