Kramer Electronics VP-725NA - Manual (Page 24)

VP-725NA - Connecting the VP-725NA Presentation Switcher/Scaler 19
3. Select Properties.
The Local Area Connection Properties window appears.
4. Select Internet Protocol (TCP/IP) and click the Properties Button (see
Figure 6 ).

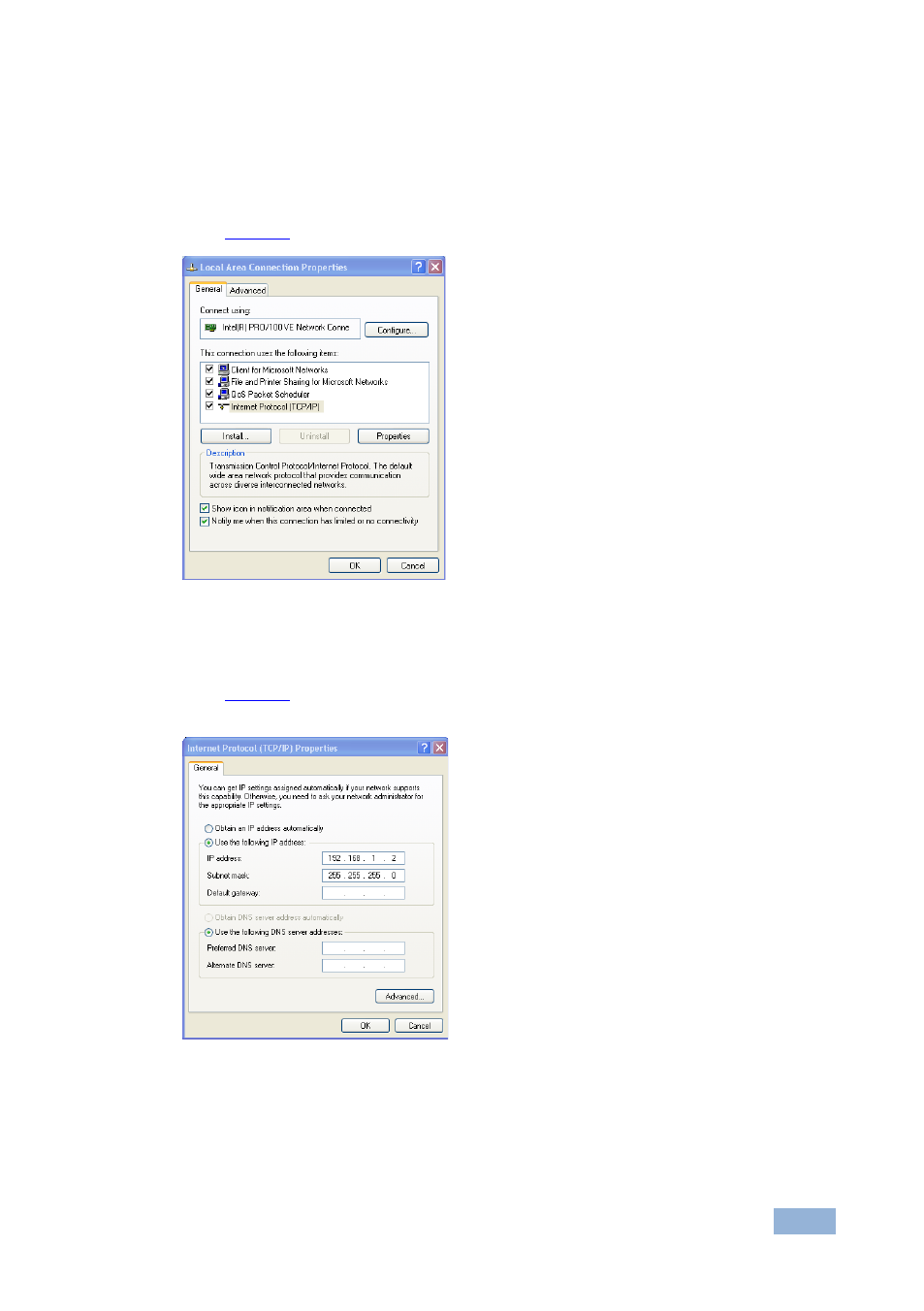

Figure 6: Local Area Connection Properties Window
5. Select Use the following IP Address, and fill in the details as shown in
Figure 7 .
This IP address is compatible with the factory default IP address of the unit.
Figure 7: Internet Protocol (TCP/IP) Properties Window
6. Click OK.
