VP-28 - Operating the VP-28 Remotely 21 21
7.5 Operating the Combined 5 x 1 HDMI/DP Switching
Group
The HDMI and DP inputs can be grouped together into a single 5 x 1 switching
group.
Figure 13: Combine Button
To combine the HDMI and DP inputs into a 5 x 1 switching group:
1. Click on the Combine button as shown in Figure 13 .
The following changes occur:
 The button changes to a locked icon
 The heading changes to HDMI & DisplayPort:
 An outline appears around both the HDMI and DP input buttons
 The inputs are combined into a single switching group as shown in
Figure 14 .

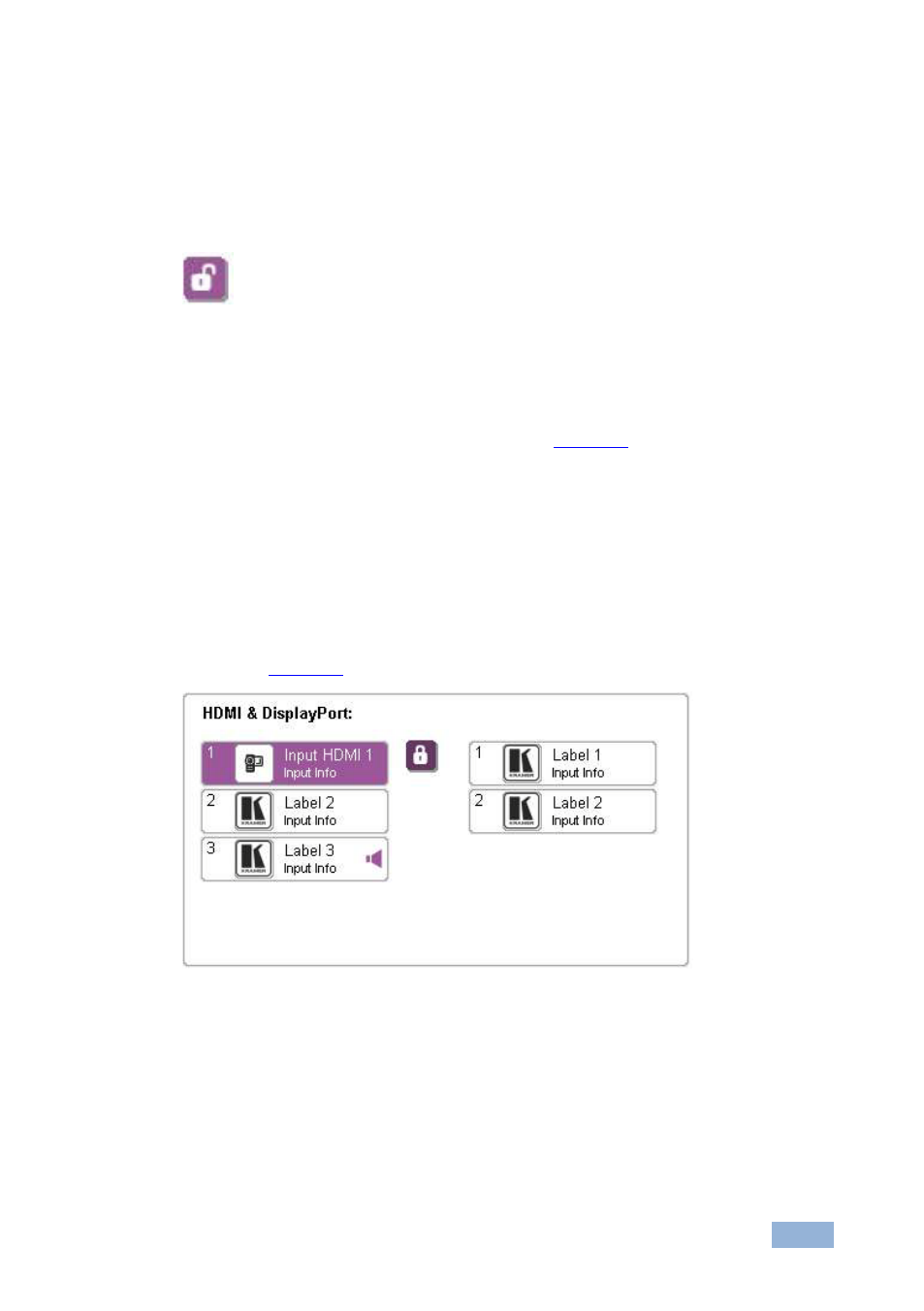

Figure 14: Combined HDMI and DP Inputs
2. To break the combined group into an HDMI and a DP group, press the
Combine button.
The button changes to an unlocked icon, the heading changes to
HDMI: and
DisplayPort:, the outline disappears and the inputs are no longer grouped.
