3. Installation
3−6
Festo SEC−ST−48−6−P01−EN en 0606c
3.2.2 Motor cable and current supply for the SEC−ST
Sub−D 9−pin
View of motor plug of
Festo stepper motor
type MTR−ST−...
Weidmüller BLZ 5.00
View of SEC−ST
String A
String A/
String B
String B/
+24...48VDC
GND
String A
String A/
String B
String B/
+24...48VDC
GND
Earthing band 6 mm
white
brown
green
yellow
grey
pink
Screening/Shield
GND brake +24V DC brake

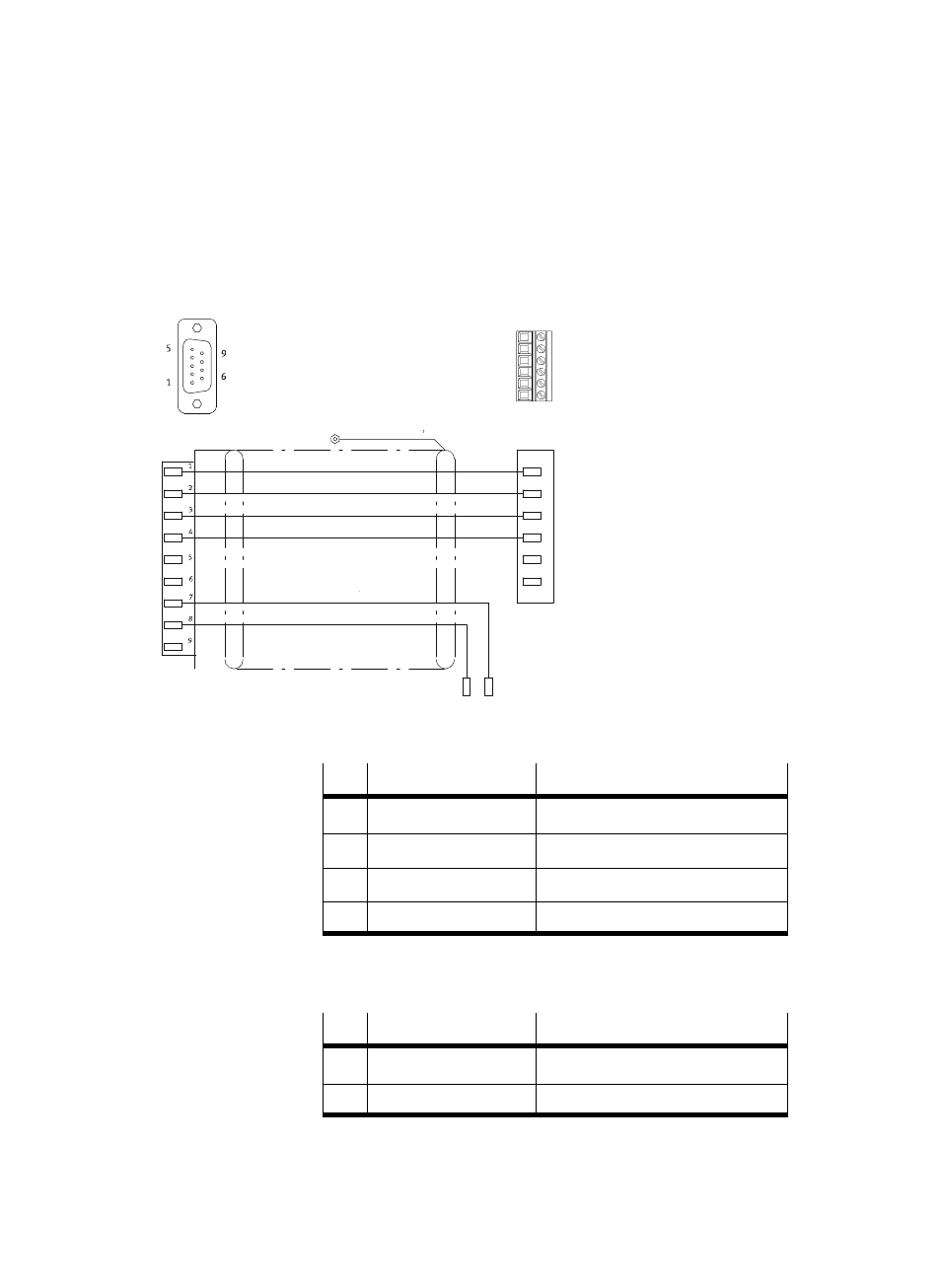

Fig. 3/3: Pin assignment of motor cable
Pin Brief description Meaning/remark
1 String A Motor connection winding A start
2 String A/ Motor connection winding A end
3 String B Motor connection winding B start
4 String B/ Motor connection winding B end
Fig. 3/4: Assignment of plug connector X2 (motor connection)
Pin Brief description Meaning/remark
1 + 24...48 V DC Current supply + 24...+48 V DC
2 GND GND current supply
Fig. 3/5: Assignment of plug connector X3 (current supply)
