1. System summary
1−7
Festo SEC−ST−48−6−P01−EN en 0606c
1.6.2 Direction input
The direction of rotation of the motor is determined via the
Direction input.
SEC−ST−48−6−P01
Optocoupler energized = direction +
Control
(e.g. SPC200)

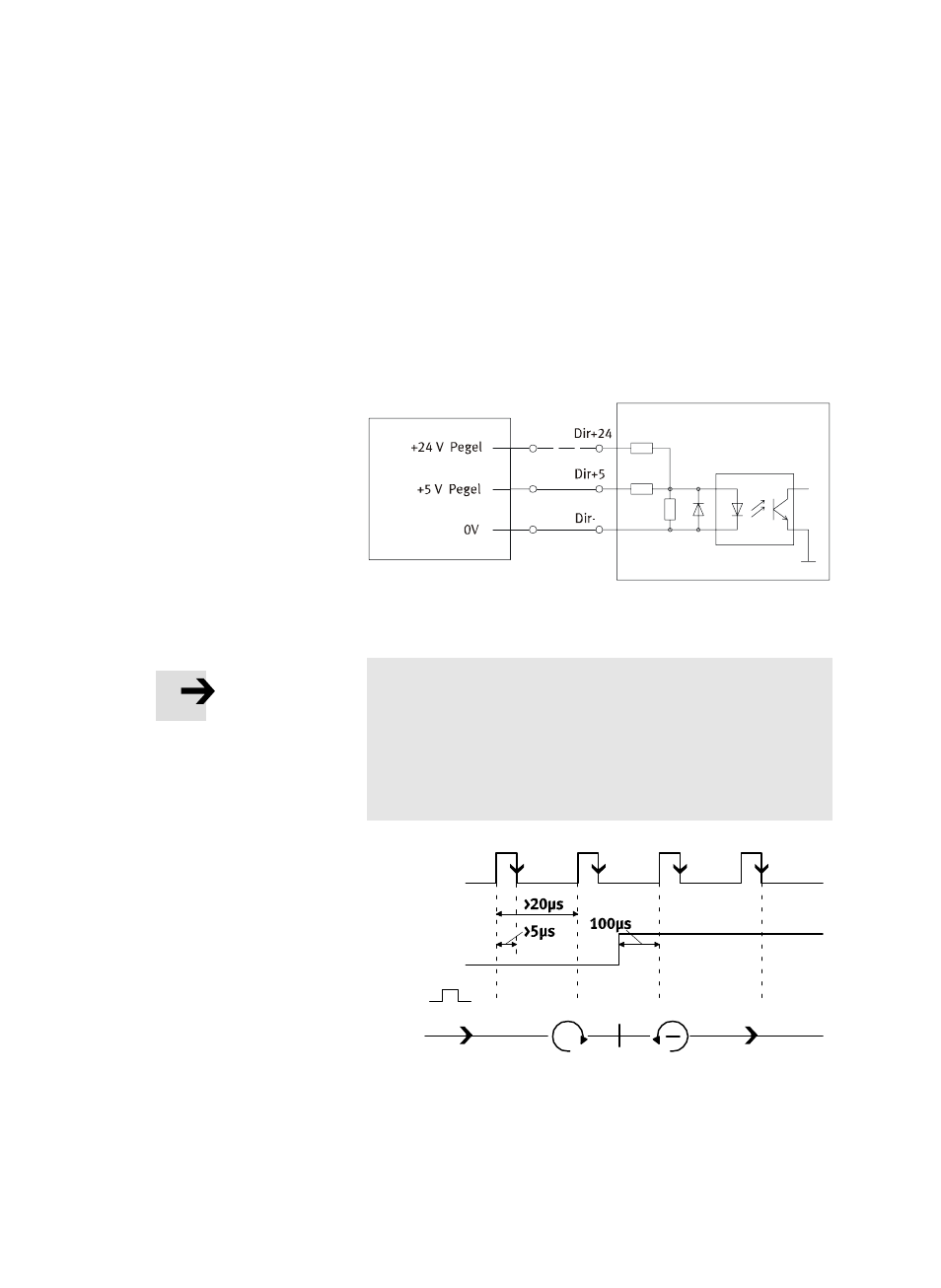

Fig. 1/2:
Please note
An incorrect connection may cause damage to the SEC−ST
or to the higher−order control.
· Please note the output levels of your higher−order conĆ
trol.
+24ĂV or +5ĂV can be used as signal level.
motor
step
0
1
0
1
DIR
CLK
6 7 6 5
+
Fig. 1/3:
