1. System summary

1−10

Festo SEC−ST−48−6−P01−EN en 0606c

1.7

Settings

1.7.1

The step mode

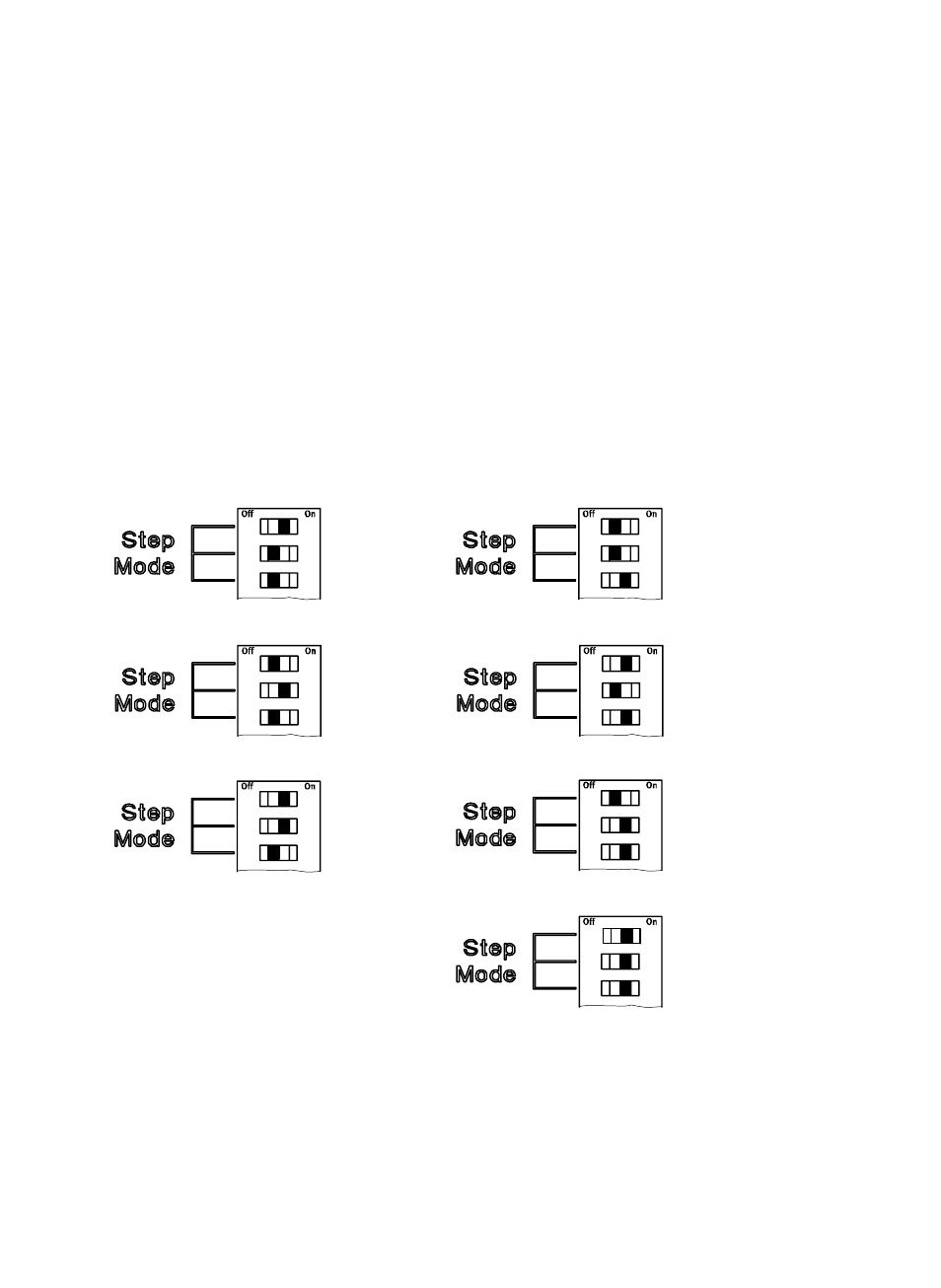

The step mode can be set by the user by means of dip
switches 1, 2 and 3. The default value (as at factory) is set as
half step.

1/32 step

1

2

3

1

2

3

1

2

3

1

2

3

1

2

3

1

2

3

1/10 step

1/2 step

1/4 step

1/1 step

1/8 step

1/5 step

1

2

3

Fig. 1/8:
