3. Installation
3−5
Festo SEC−ST−48−6−P01−EN en 0606c
3.2 Plug connectors and their pin assignments
3.2.1 X1 plug for control cable KSPC−SECST−1.5
* Plug connector: Weidmüller, BLZ 3.5/11 SN SW
Fig. 3/1:
Pin Brief description Meaning/remark
1 EN+24 Enable input + 24ĂV (7 mA)
2 En+5 Enable input + 5ĂV (10 mA)
3 Enć Enable input ć
4 Clk +24V Clock input + 24ĂV (7 mA)
5 Clk +5V Clock input + 5ĂV (10 mA)
6 Clkć Clock input ć
7 Dir +24V Direction input + 24ĂV (7 mA)
8 Dir +5V Direction input + 5ĂV (10 mA)
9 Dirć Direction input ć
10 Err+ Fault output + (max. 30 mA)
11 Errć Fault output ć

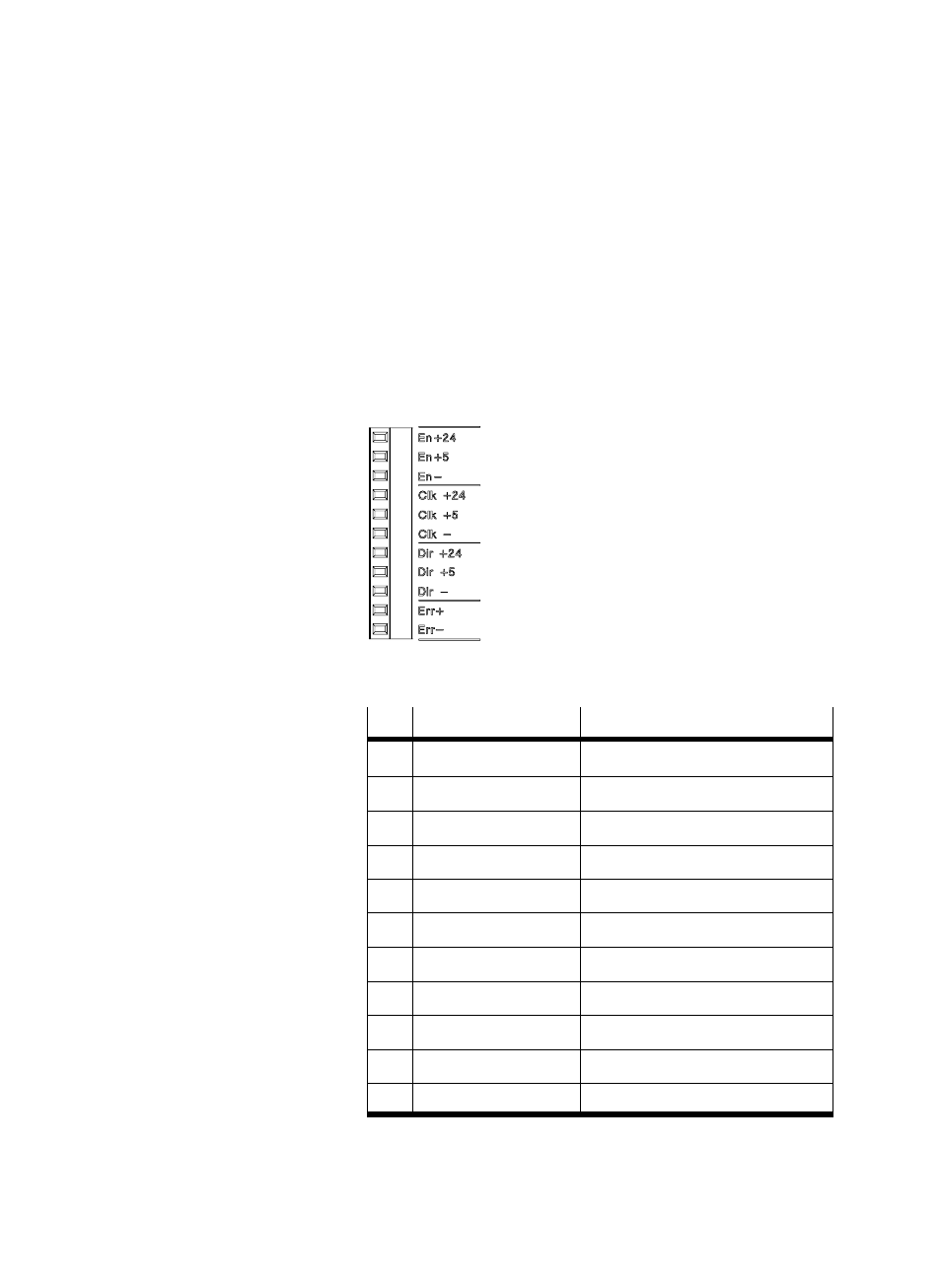

Fig. 3/2: Assignment of plug connector X1
