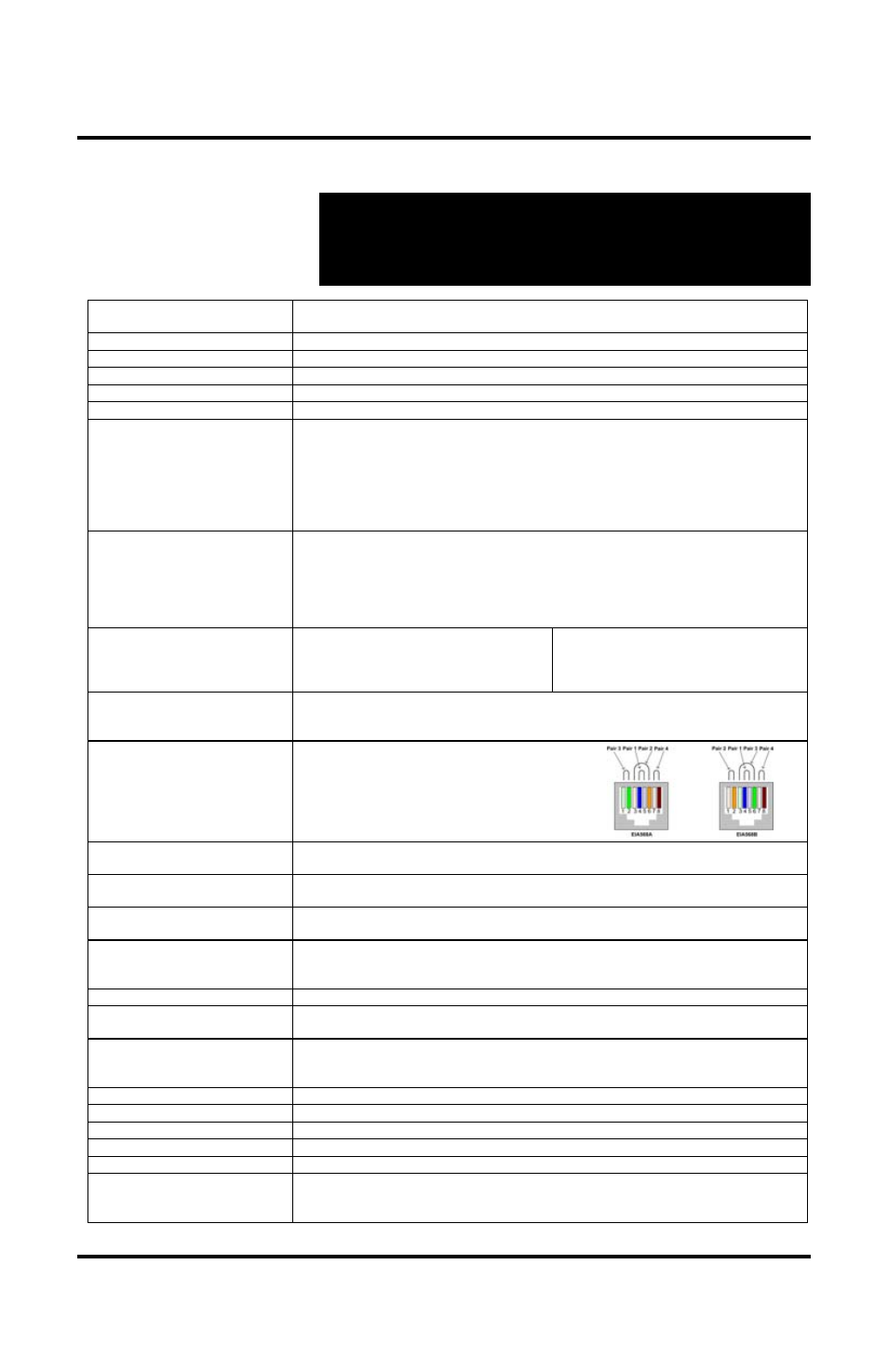

2.
Technical Specifications
Environment VGA, VESA VP&D 1.0, VIP ver 2.0. DDC1 and DDC2 with Analog Stereo and/or Digital
Audio, IR-Emitter Pass-Through, and RS232 control
Devices PCs, laptops, CRT monitors, LCD monitors, plasma screens, DLP projectors
Transmission Transparent to the user
Bandwidth Up to 220 MHz (1920 x 1200 resolution), 1080p
Input Impedance DB15HD: 75 ohms Stereo Audio: 2.2 Kohms
Output Impedance Cat 5e/6: 100 ohms
Connectors: Transmitter VGA/Component Input (PC): DB15HD-F
VGA/Component Output (Local Monitor): DB15HD-F
Stereo Audio Input and output: 2 x 3.5mm jack
Digital Audio Input: female RCA
IR-Emitter: 3.5mm Mono jack
RS232: DB9
Transmitter Output (Cat 5e/6): RJ45 shielded
Connectors: Receiver Receiver Input (Cat 5e/6): RJ45 shielded
VGA/Component Output (PC): DB15HD-F
Stereo Audio output: 3.5mm jack
Digital Audio output: female RCA
IR-Sensor: 3.5mm Stereo jack
RS232: DB9
Maximum Distance:
VGA via Cat 5e/6 UTP
Cable (or better) 640 x 480 (VGA): 1,000 ft (305 m)
800 x 600 (SVGA): 1,000 ft (305 m)
1024 x 768 (XGA): 1,000 ft (305 m)
1280 x 1024 (SXGA): 850 ft (260 m)
1600 x 1200 (UXGA): 800 ft (245 m)
1366 x 768 (WXGA): 850 ft (260 m)
1680x1050 (WSXGA): 850 ft (260 m)
1920 x 1200 (WUXGA): 600 ft (180 m)
Maximum Distance:
Audio via Cat 5e/6 UTP
Cable (or better) Analog Stereo Audio: 1,000 ft (305 m)
Digital Audio: 1,000 ft (305 m)
RJ45 Pin Configuration
Reverse Polarity Sensitive
Use EIA/TIA 568A or 568B
straight-through wiring Green (Y): Pin 4 (R) Pin 5 (T)
Blue (Pb): Pin 1 (R) Pin 2 (T)
Red (Pr): Pin 7 (R) Pin 8 (T)
IR-Emitter, IR-Sensor,
RS-232: Pin 3 (R) Pin 6 (T)
Brightness Adjustment Brightness control via rotary switch on the receiver
(Factory default setting: “None”)
Sharpness Adjustment Sharpness control via potentiometer on the receiver
(Factory default setting: Completely rotated counterclockwise)
Skew Adjustment Skew control via 3 potentiometers (R, G, B) on the receiver
(Factory default setting: Completely rotated counterclockwise)
LED Indicators Tx Balun: Power: One (1) green LED
Sync: One (1) green LED
Rx Balun:
Power: One (1) green LED
Cable Cat 5e/6 unshielded twisted pair (or better)
Power Supplies 110-240V/12VDC/0.5A, 12VDC power jacks
Removable AC blades included for North America, Continental Europe & UK
Temperature Operating: 0°C to 40°C
Storage: -10°C to 70°C
Humidity: Up to 95% non-condensing
Enclosure Black. ABS fire retardant plastic
Dimensions 6.00” x 4.25” x 1.50” (15.3 cm x 10.8 cm x 3.8 cm)
Weight 2 lbs (0.9 kg)
Regulatory FCC/CE, RoHS
Warranty Two (2) years
Order Information 500145: Active VGA/Audio Balun Kit
500146: Active VGA/Audio Balun, TX, incl PSU
500147 Active VGA/Audio Balun, RX, incl PSU
