21. After sharpness and brightness have been adjusted,
adjust the skew in order to align the red green and
blue bars. To do this, open the electronic version of
this manual and look at the skew correction pattern
on the screen (see Figure 6). The R G B
potentiometers adjust the red, green and blue colors
horizontally. Using the potentiometer, move the
three colored lines so they align perfectly. To move
a color to the right of the screen, turn the
corresponding potentiometer clockwise.

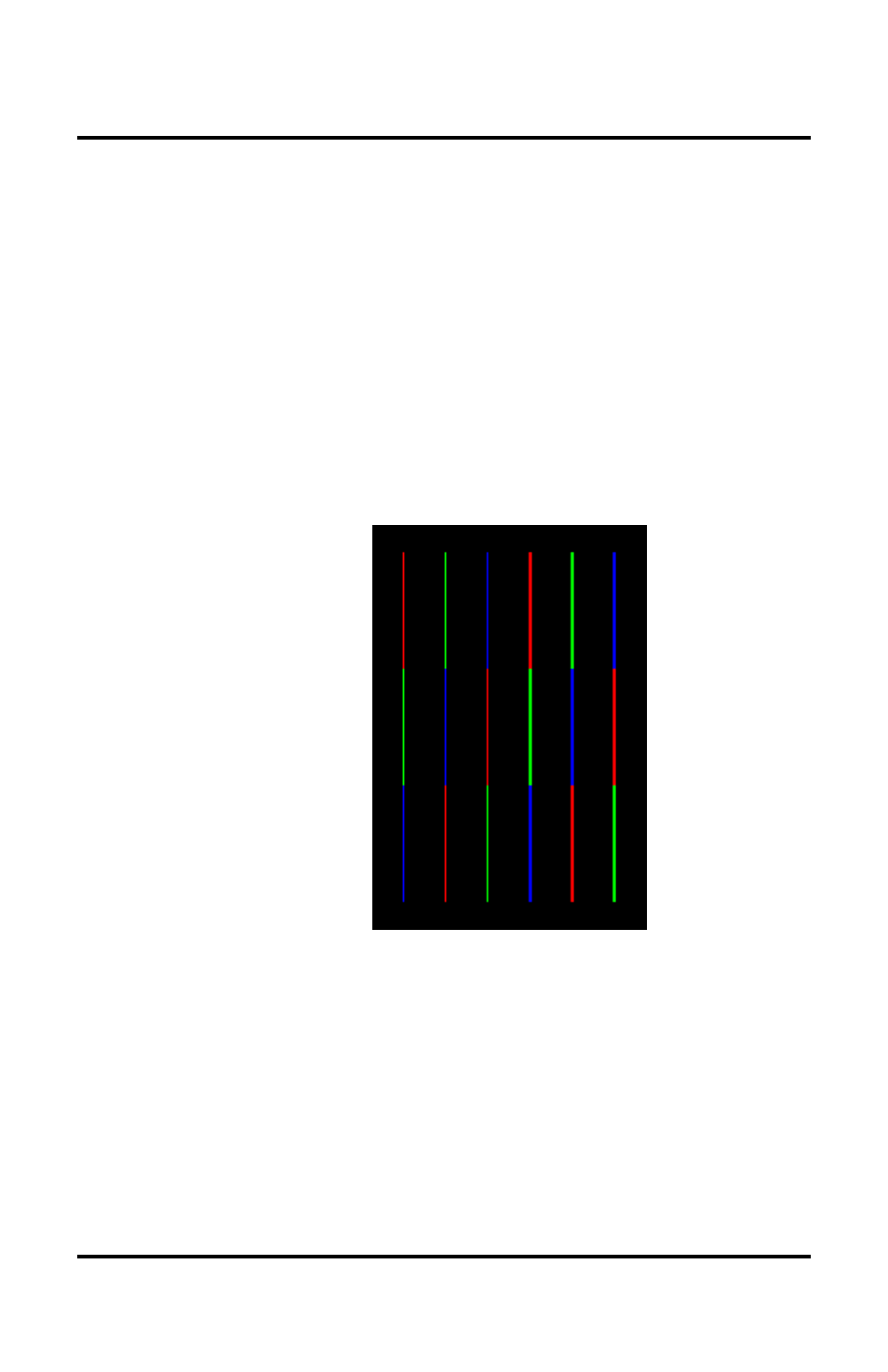

Figure 6: Pattern for Skew Correction
