Specifications
Environment Composite video (NTSC, PAL, SECAM). Line level analog audio. IR Remote.
Devices DVD players, VCR, satellite receivers, MPEG players, laptops, notebooks,
monitors, LCD projectors, CCD cameras, video switchers, sequencers, digital
video servers, video multiplexers, video splitters, video converters and other
composite video equipment.
Transmission Transparent to the user
Composite Video Audio
Bandwidth DC to 6 MHz 20 Hz to 20 KHz over the
distance range
Impedance 75 ohms 600 ohms min.
Max. Input 1.1 Vp-p 1.1 Vp-p
Insertion Loss Less than 2 dB per pair over the frequency
range from DC to 6 MHz Less than 2 dB per pair over the
frequency range
Return Loss Better than 15 dB over the frequency range N/A
Common Mode
Rejection Ratio Greater than 40 dB over the frequency range N/A
Max. Distance via
Cat 5E/6
UTP/STP Cable 2,200 ft (670 m)
IR: Please refer to IR vendor specifications 3,250 ft (990 m)
Pin Configuration
(RJ45) Video: Pins 7(R) & 8(T)
IR Pass-Thru: Pins 4(R) & 5(T)
Reverse Polarity Sensitive Audio 1: Pins 1(R) & 2(T)
Audio 2: Pins 3(R) & 6(T)
Cable:
Cat 5E/6
UTP/STP 24 AWG or lower solid copper twisted pair wire
Impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pf/ft
Attenuation: 6.6 dB/1,000 ft at 1 MHz
Connectors 500048: Three RCA-M connectors: Video (yellow) & stereo audio (red, white)
500049: Three RCA-F connectors: Video (yellow) & stereo audio (red, white)
One (1) 2-pole terminal block for IR emitter pass-through
One (1) RJ45 for Cat 5E/6
Temperature Operating: 0º to 55ºC
Storage: -20º to 85ºC
Humidity: Up to 95% non-condensing
Enclosure Fire retardant plastic
Dimensions 500048: 2.40” x 2.25” x 1.00” (6.10 x 5.72 x 2.54 cm) plus 6” (15 cm) cable
leads for video and stereo audio
500049: 2.40” x 2.25” x 1.00” (6.10 x 5.72 x 2.54 cm)
Weight 3.1 oz (89 g)
Warranty Lifetime
Order
Information 500048 Stereo AV/IR Pass-Thru Balun, M
500049 Stereo AV/IR Pass-Thru Balun, F

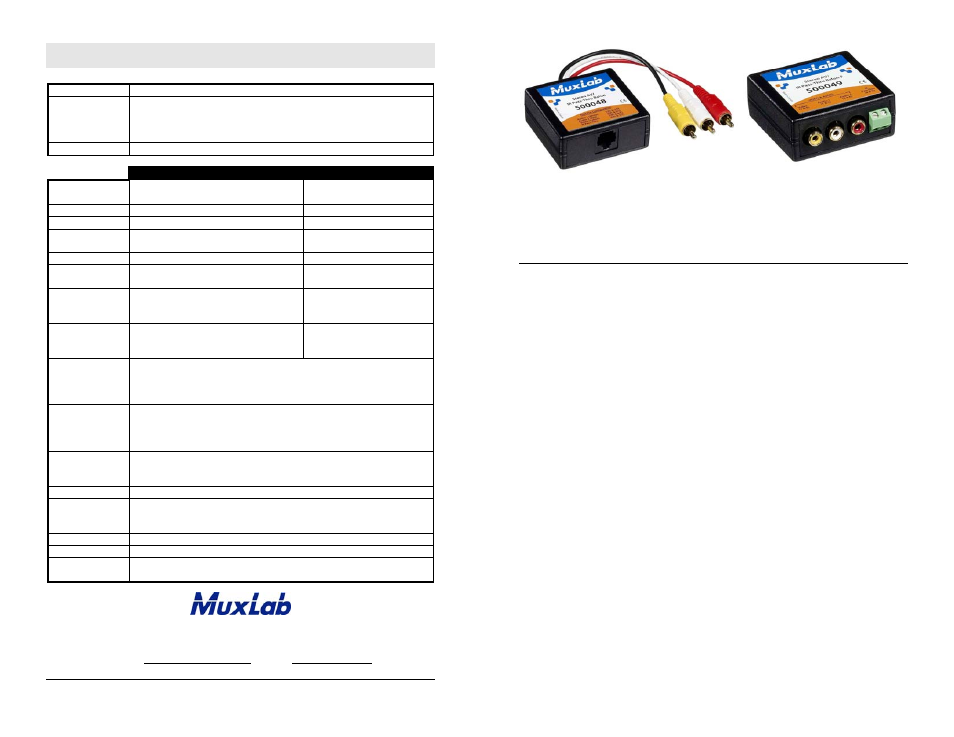

Stereo AV / IR Pass-Thru Balun
500048, 500049
Quick Installation Guide
Overview
The Stereo AV/IR Pass-Thru Balun (500048, 500049) allows one (1) composite video,
one (1) stereo audio and one (1) IR emitter signal to be transmitted via a single Cat 5E/6
cable in a point-to-point connection. The Stereo AV/IR Pass-Thru Balun features full
audio bandwidth response for high fidelity applications and features built-in color-coded
cable leads for ease of installation. The Stereo AV/IR Pass-Thru Balun also works in
conjunction with third party IR Remote Control equipment. This enables the IR Emitter
to connect to the IR control module using the same Cat 5E/6 cable as video and audio,
allowing for more cost-efficient cabling. Some applications include: Classroom video
distribution, commercial and home audio/video systems, hospital video training, video
conferencing, and video kiosks
