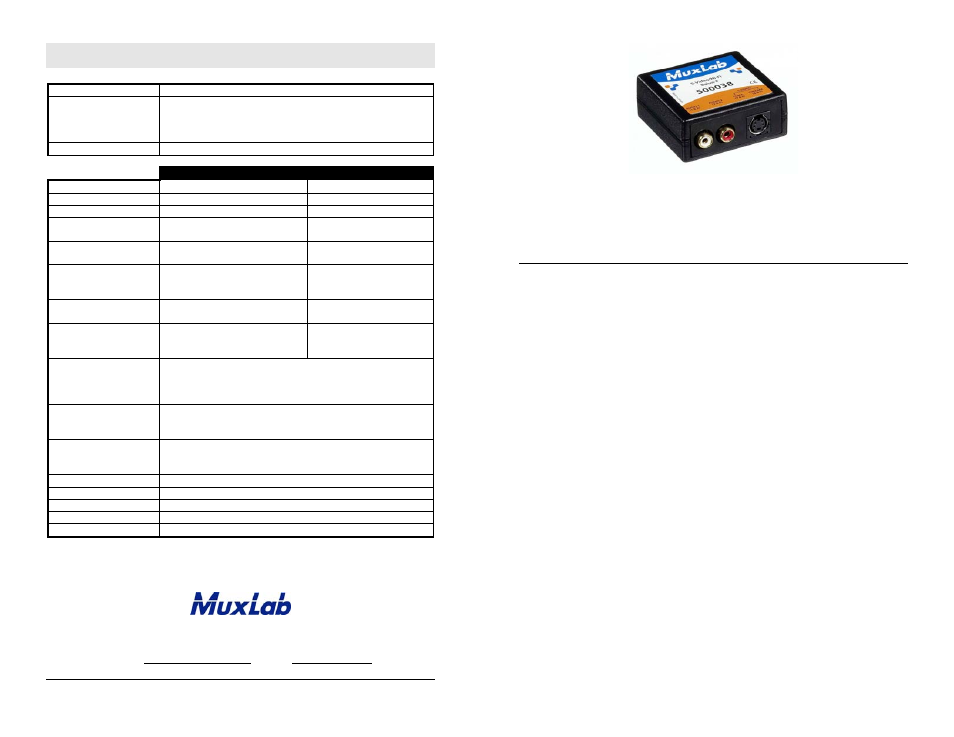

Specifications
Environment S-Video equipment
Devices DVD players, VCR, satellite receivers, MPEG players, laptops,
notebooks, monitors, LCD projectors, CCD cameras, video switchers,
sequencers, digital video servers, video multiplexers, S-Video splitters,
S-Video converters and other S-Video equipment.
Transmission Transparent to the user
S-Video Audio
Bandwidth DC to 6 MHz 20 Hz to 20 kHz
Impedance 75 ohms 600 ohms min.
Maximum Input 1.1 Vp-p 1.1 Vp-p
Insertion Loss Less than 2 dB per pair over the
frequency range from DC to 6 MHz Less than 2 dB per pair over the
frequency range
Return Loss Better than 15 dB over the frequency
range N/A
Common Mode Rejection
Ratio (CMRR) Greater than 40 dB over the
frequency range Greater than 60 dB at 1 kHz
Greater than 40 dB over the
frequency and distance range
Max. Distance via
Cat 5E/6 UTP/STP Cable 1,000 ft (305 m) 3,250 ft (990 m)
Pin Configuration (RJ45)
EIA 568 A or B S-Video Luma: Pins 7(R) & 8(T)
S-Video Chroma: Pins 4(R) & 5(T)
Reverse Polarity Sensitive
Audio 1: Pins 1(R) & 2(T)
Audio 2: Pins 3(R) & 6(T)
Cable:
Cat 5E/6 UTP/STP 24 AWG or lower solid copper twisted pair wire
Impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pf/ft
Attenuation: 6.6 dB/1,000 ft at 1 MHz
Connectors One (1) 4-pin Mini DIN jack for S-Video
Two (2) RCA audio jacks for stereo audio
One (1) RJ45 for Cat 5E/6
Temperature Operating: 0º to 55ºC
Storage: -20º to 85ºC
Humidity: Up to 95% non-condensing
Enclosure Fire retardant plastic
Dimensions 2.40” x 2.25” x 1.00” (6.10 x 5.72 x 2.54 cm)
Weight 2.1 oz (60 g)
Warranty Lifetime
Order Information 500038 S-Video/Hi-Fi Balun, Female
S-Video / Hi-Fi Balun
500038
Quick Installation Guide
Overview
The S-Video/Hi-Fi Balun allows one S-Video signal and one hi-fidelity stereo audio
channel to be transmitted via an unshielded twisted pair (UTP) cable in a point-to-point
connection for more versatile cabling. Used in pairs, the S-Video/Hi-Fi Balun eliminates
costly and bulky S-Video and audio cable, allowing S-Video equipment to be connected
or moved to any convenient modular outlet. The S-Video/Hi-Fi Balun also works in
conjunction with MuxLab’s Audio/Video Distribution Hub (500200) to allow S-Video
programming to be distributed via UTP. Applications include: Classroom video
distribution, commercial and home audio/video systems, hospital video training, video
conferencing, and video kiosks.
