Specifications
Environment Line level unbalanced analogue audio
Devices DVD players, satellite receivers, MPEG players, laptops, hi-fidelity stereo
audio amplifiers, audio switchers, AV monitors and other line level audio
equipment.
Transmission Transparent to the user.
3dB Bandwidth 20 Hz to 20 KHz over the distance range.
Maximum Input 1.1Vp-p (unbalanced)
Insertion Loss per balun
pair Less than 2 dB over the frequency range.
Common Mode Rejection Greater than 60 dB @ 1 KHz
Greater than 40 dB over the frequency range.
THD Less than 0.007% @ 1KHz
Audio Source Impedance 100 ohms maximum
Audio Receiver Impedance 10 k ohms minimum
Max. Distance – Cat 5 UTP 3,250 ft (1 km)
Pin Configuration (RJ45) Audio 1 (White): pins 1[R] & 2 [T]
Audio 2 (Red): pins 3 [R] & 6 [T]
Cable – UTP 24AWG or lower solid copper twisted pair wire
Impedance: 100 ohms at 1 MHz; Maximum capacitance: 20 pf/foot.
Attenuation: 6.6 dB/1000 ft at 1 MHz
Cable - Coax Shielded audio cable.
Connectors 500028: Two (2) RCA-M 6” cable leads
500028-F: Two (2) RCA jacks
One (1) RJ45
Temperature Operating: 0º to 55º C. Storage:-20º to 85º C. Humidity: up to 95%
Enclosure ABS. Fire retardant plastic
Dimensions 2.40” x 2.25” x 1.00” plus 6” audio lead
Weight 3.1 oz (89 gms)
Warranty Lifetime
Order Information 500028 Stereo Hi-Fi Balun, M
500028-2PK Stereo Hi-Fi Balun, M, 2-Pack
500028-F Stereo Hi-Fi Balun, F
500028-F-2PK Stereo Hi-Fi Balun, F, 2-Pack
8495 Dalton Road, Mount Royal, Quebec, Canada, H4T 1V5
Tel.: (514) 905-0588 Fax: (514) 905-0589
Toll Free (North America): (877) 689-5228
E-mail: [email protected] URL: www.muxlab.com
94-000556-A SE-000589-B

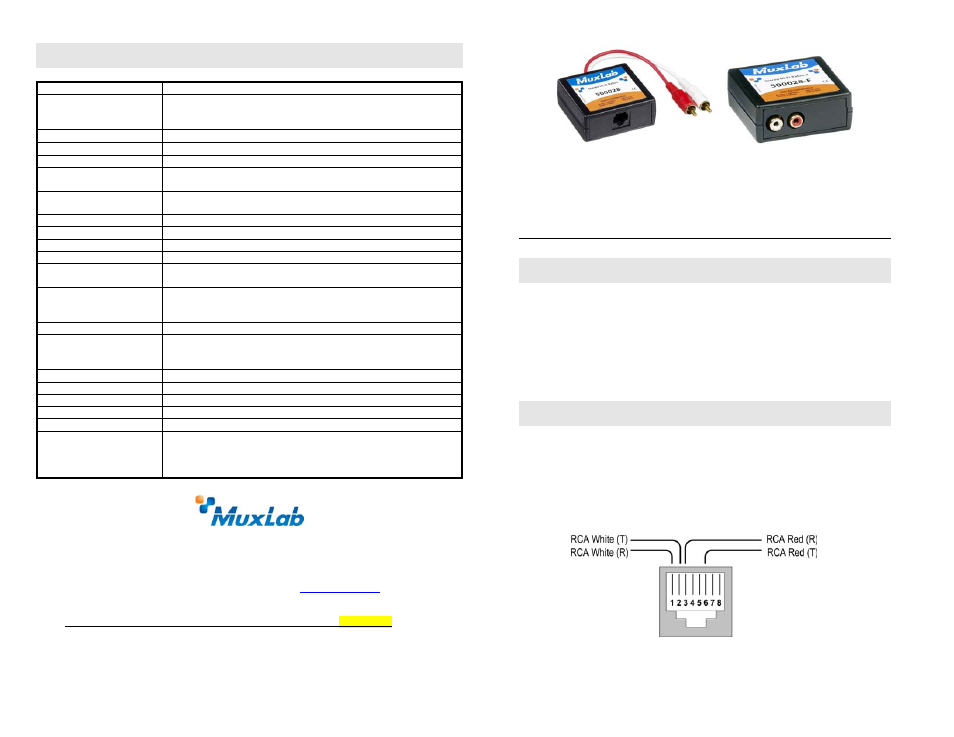

Stereo Hi-Fi Balun (500028 & 500028-F)
Quick Installation Guide
Introduction
The Stereo Hi-Fi Balun (500028, 500028-F) allows unbalanced line level stereo audio to
be transmitted up to 5,000 ft (1.5km) via unshielded copper twisted pair (UTP) in a
point-to-point connection. Used in pairs, the product is designed for high fidelity
applications where full audio bandwidth (20Hz to 20 KHz) is required. Used in pairs, the
Stereo Hi-Fi Balun eliminates costly and bulky audio cable, allowing audio equipment to
be connected or moved within a structured cabling environment. Applications include;
audio distribution, high-fidelity sound systems, custom residential audio systems.
Installation
To install the Stereo Hi-Fi Baluns, perform the following steps:
1. One pair of Stereo Hi-Fi Baluns is required for each stereo channel.
2. Identify the pin configuration of the baluns. Two (2) twisted pairs are required
as shown in the following diagram.
