3.4. Installation Procedure
Verify that the distance between the Active VGA/Audio
Balun transmitter and receiver are within MuxLab
specifications (see Technical Specifications). In order to
install the transmitter, please follow the steps below:
1. Connect the transmitter to the audio-video source
with the appropriate VGA video & audio cables.
2. If the Analog Audio (AA) interface is used (Stereo
3.5 mm), toggle the Audio switch to the “AA”
position. If the Digital Audio (DA) interface is used
(RCA), toggle the Audio switch to the “DA”
position.

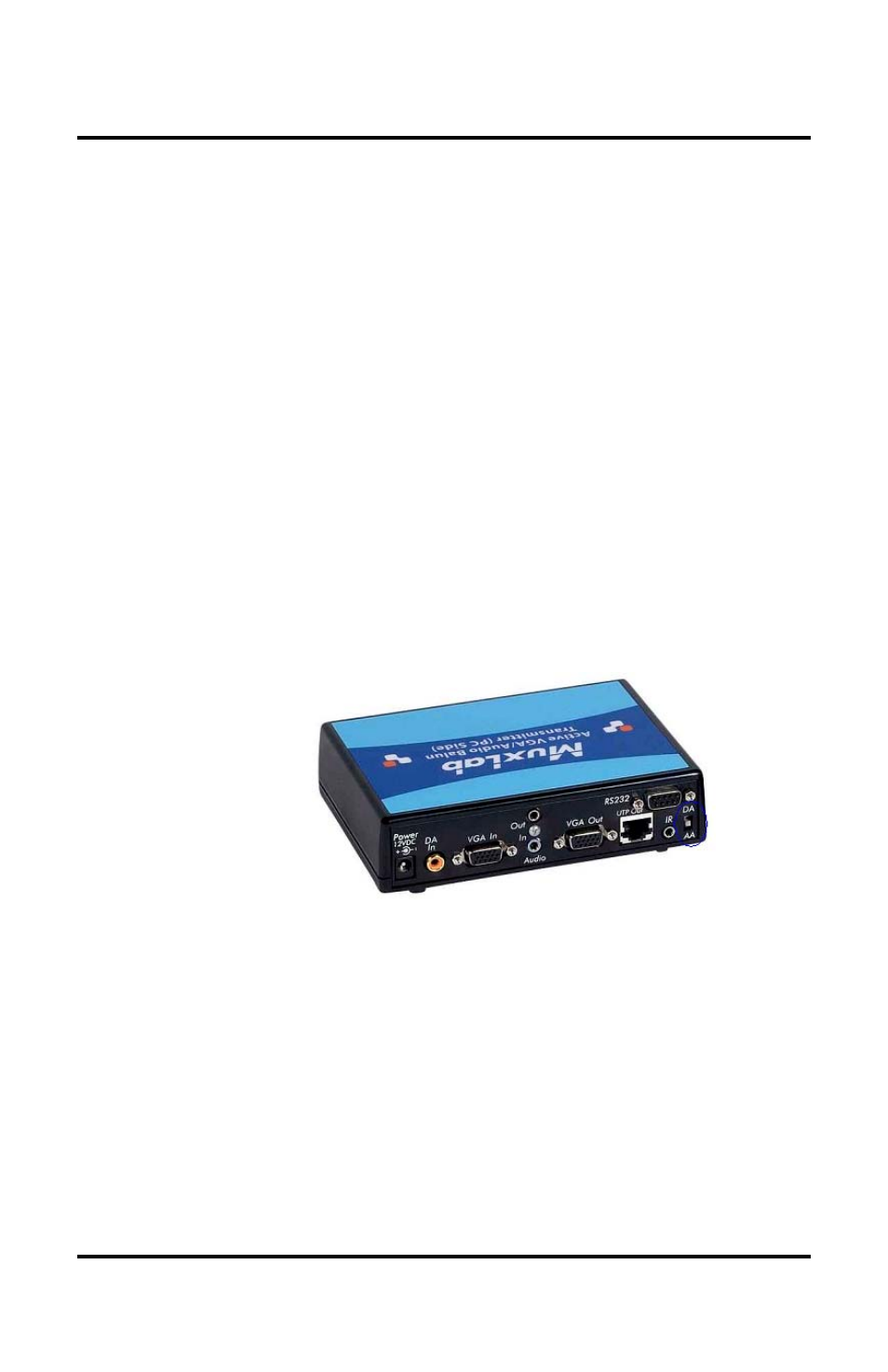

Figure 2: Position of the Audio Switch on the Transmitter
3. (Optional) Connect an infrared transmitter to the
3.5 mm connector.
4. (Optional) Connect the RS232 to the control source
with the appropriate DB9 to DB9 cables. Note: If the
infrared 3.5 mm connector is plugged, the RS232
interface is disabled.
