RMS Technologies Page 7 Version 1.10
IMD23/23DE Manual 12/3/2007
4 MECHANICAL SPECIFICATIONS
Motor Front Shaft Extension Length
Standard length is 0.81”.
Motor Shaft Diameter
Standard shaft diameter is 0.25”.
Overall Body Length (A)
Motor body length is available in various lengths
IMD23-S-XX (2.52”)
IMD23-M-XX (2.96”)
IMD23-L-XX (3.89”)
Note: This plug is for the new configuration module, sold separately. It enables you to
update the run, hold currents, step resolution, and other settings.

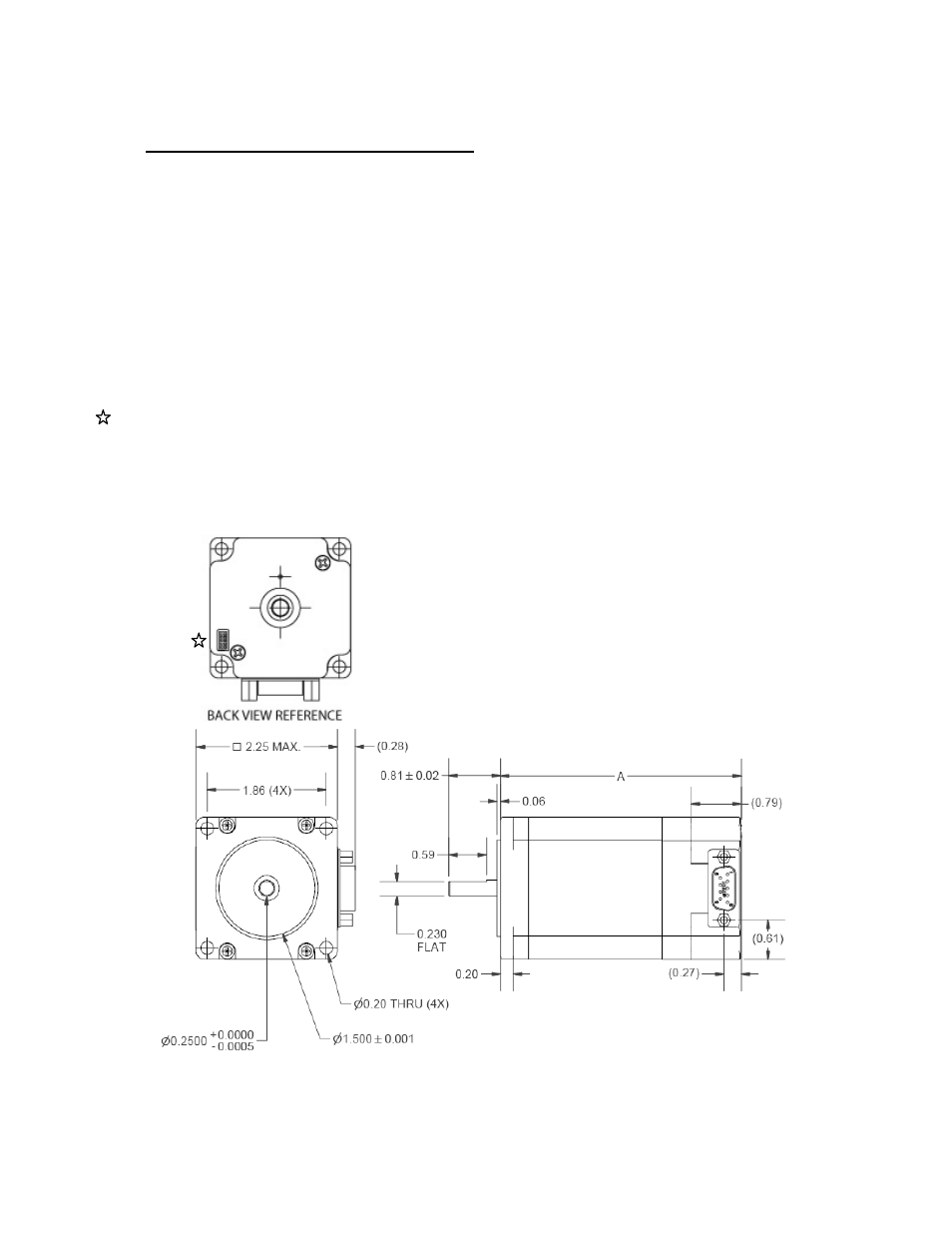

Dimensions
Dimensions Diagram
