RMS Technologies

Page 22

Version 1.10

IMD23/23DE Manual

12/3/2007

9

Appendix A


Recommended Cable Configurations: DC Supply to Driver


Cable length, wire gauge and power conditioning devices play a major role in the
performance of your RMS Technologies Driver and Motor.

NOTE: The length of the DC power supply cable to the Driver should not exceed 50 feet.

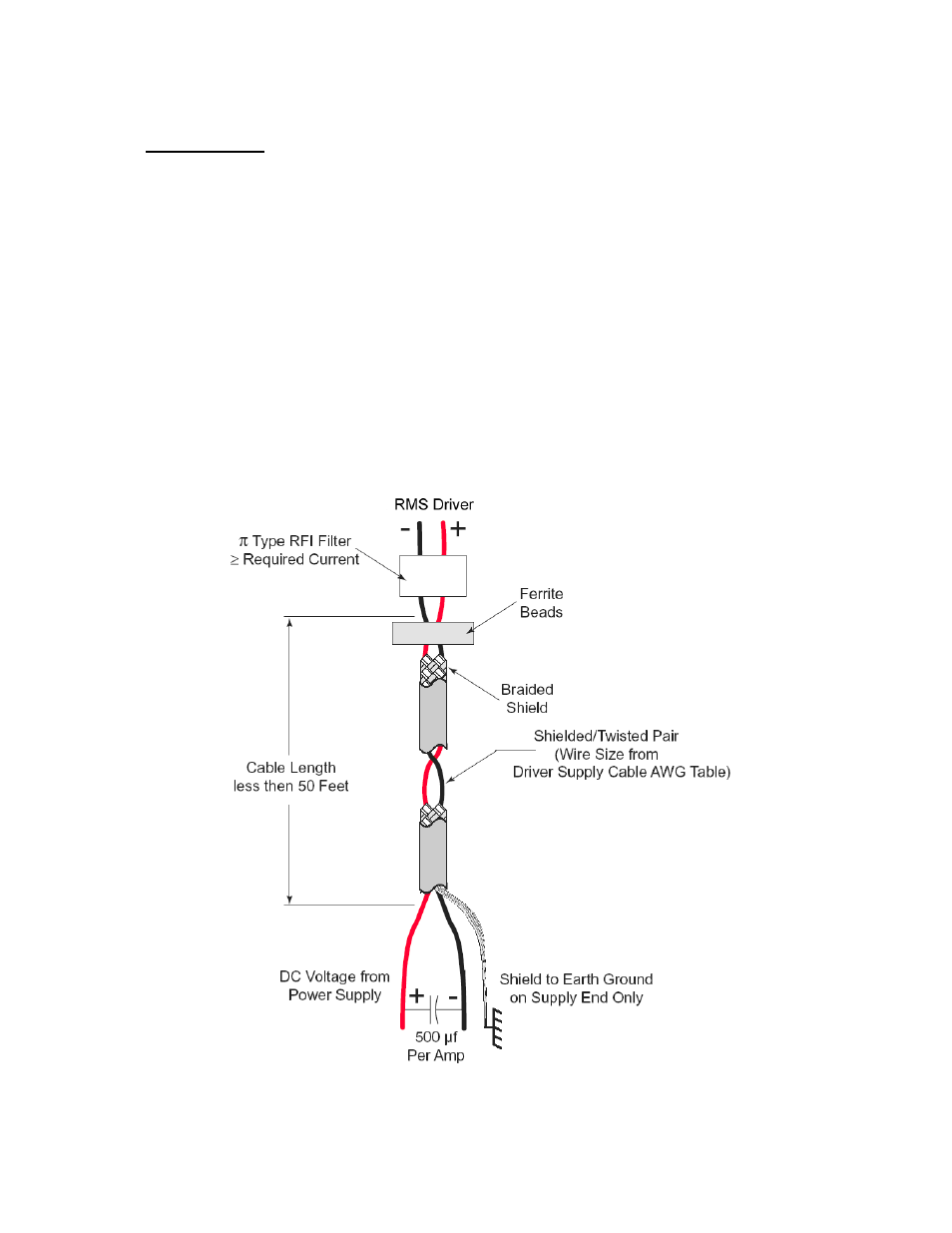

Example A demonstrates the recommended cable configuration for DC power supply cabling
under 50 feet long. If cabling of 50 feet or longer is required, the additional length may be
gained by adding an AC power supply cable (see Examples B & C).

Correct AWG wire size is determined by the current requirement plus cable length. Please
see the Driver Supply Cable AWG Table in this Appendix.
