RMS Technologies

Page 13

Version 1.10

IMD23/23DE Manual

12/3/2007

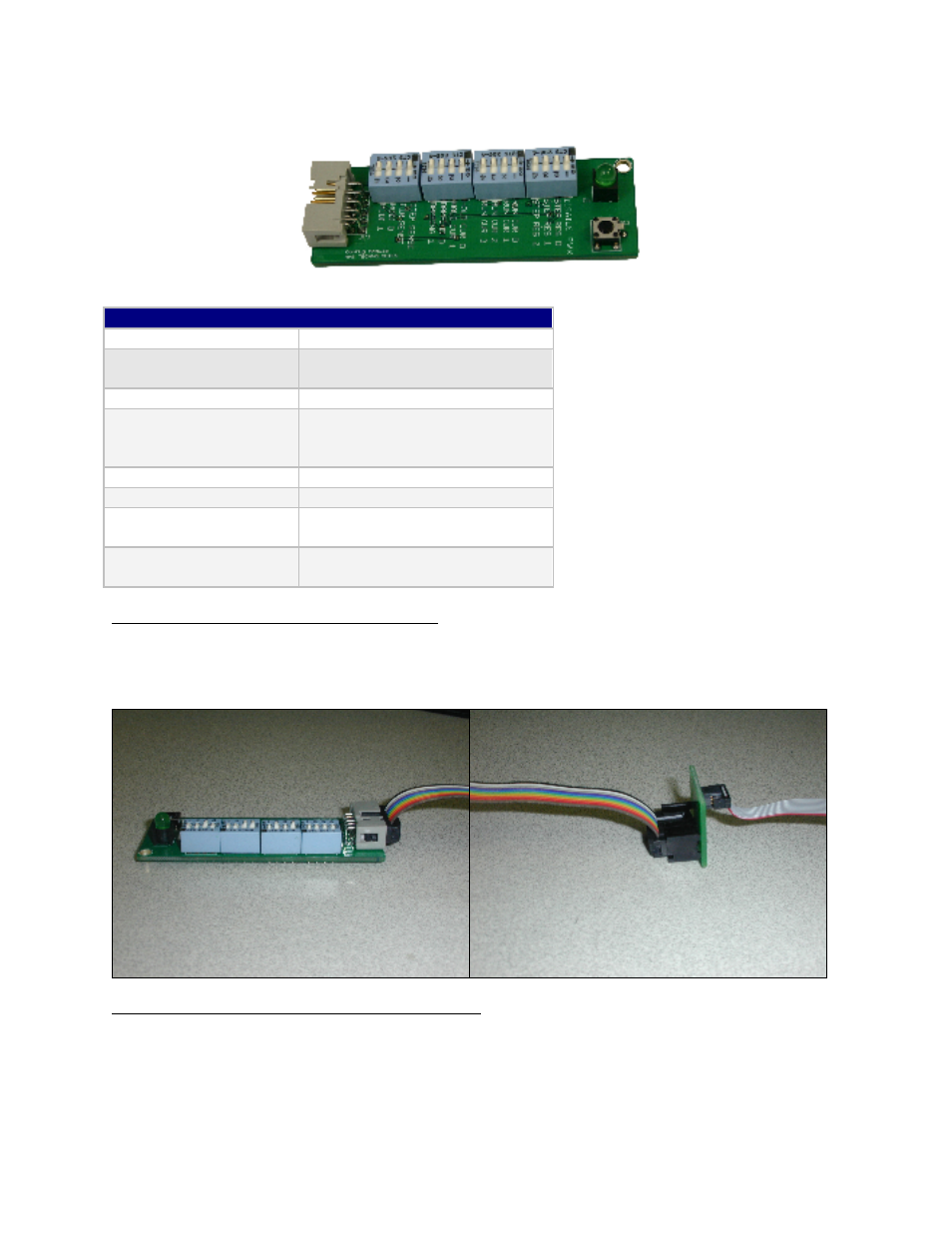

Configuring Settings using Configuration Module (for new RoHS products)

Default Settings of the IMD23 or DE

Direction of rotation

Counterclockwise

Disable Power

On – motor power is disabled
when disabling unit

Step Resolution

8x step (3200 steps/rev)

Run Current

Motor’s rated current or up to
3 Amps Peak if motor is rated
for 3 or higher.

Holding Current

25% of motor’s rated Current

Damping Mode

37% damping

Step signal sensing

Senses on the Falling edge or
Negative edge

Direction signal
sensing

Senses on the Falling edge or
Negative edge

How to Connect the Configuration Module

Align configuration module and small adapter board in the following orientation, and insert
ribbon cable without twisting the cable:

Instructions on Using the Configuration Module

1. Power Off the power supply and Opto Supply and disconnect or power off any step,

direction, and disable/enable signals. If using the internal opto supply, disconnect it.

2. Set all the DIP switches on the Config Module to the required positions
