RMS Technologies

Page 19

Version 1.10

IMD23/23DE Manual

12/3/2007

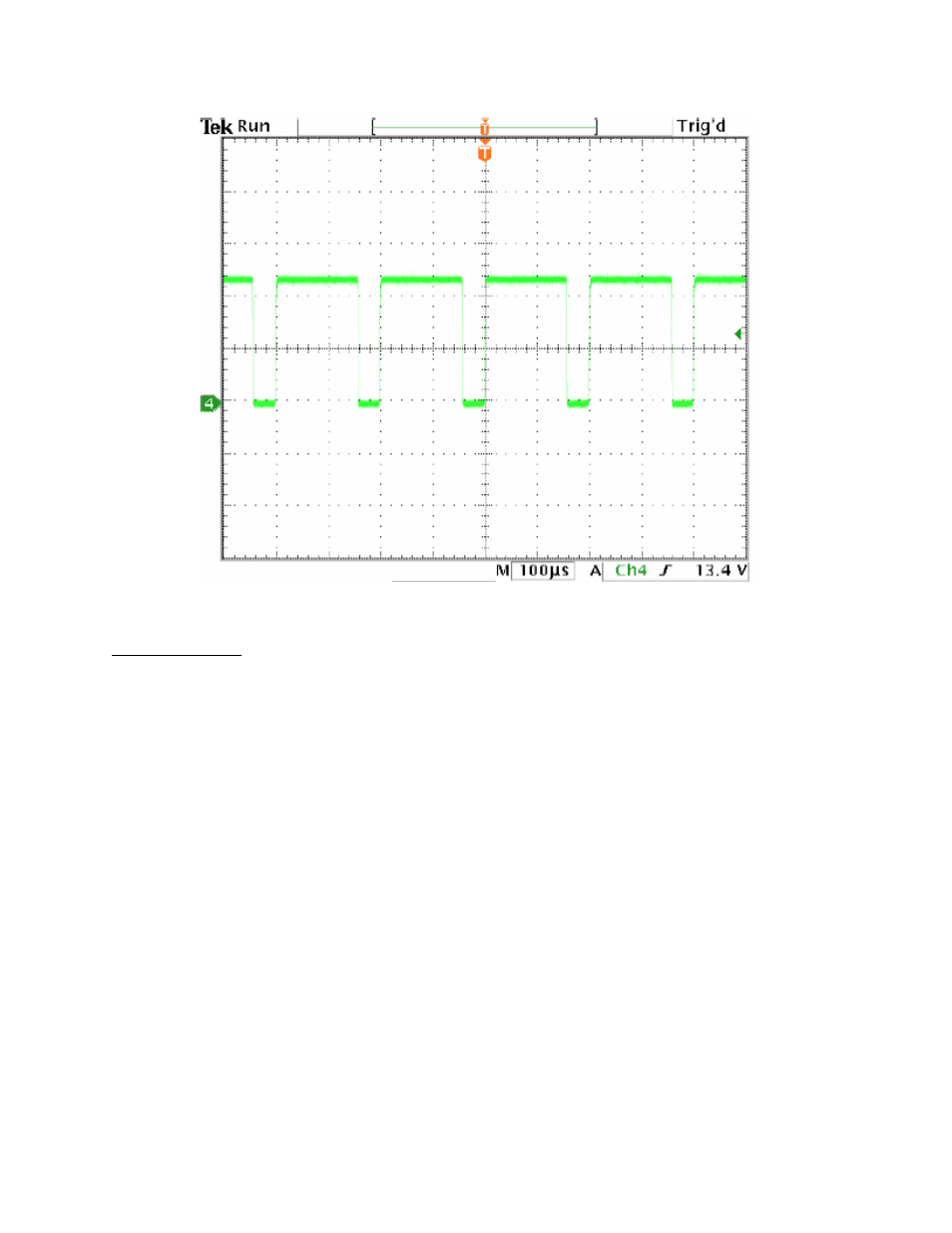

Example of a good waveform


Direction Sense:

This is similar to the “step sense” feature where the direction of rotation can change upon
seeing the rising edge of a signal or the falling edge of a signal.

The switch has two options:
ON: Changes direction on a rising edge signal (looks for a low to high transition)
OFF: Changes direction on a falling edge signal (looks for a high to low transition)
