RMS Technologies

Page 18

Version 1.10

IMD23/23DE Manual

12/3/2007

ON: Reads the step signal on the rising edge or positive edge
OFF: Reads the step signal on the falling edge or negative edge

Below depicts a step pulse train waveform where the rising edge is more of a curve. If the
IMD23 and configuration module is set to read this type of signal on the rising edge,
inaccurate steps and unsmooth motion may occur.

It is best to switch the step sensing to the negative edge, or falling edge. Notice in this
example, the falling edge is a clear signal and a definite difference between high to low.

Example of a bad rising edge waveform

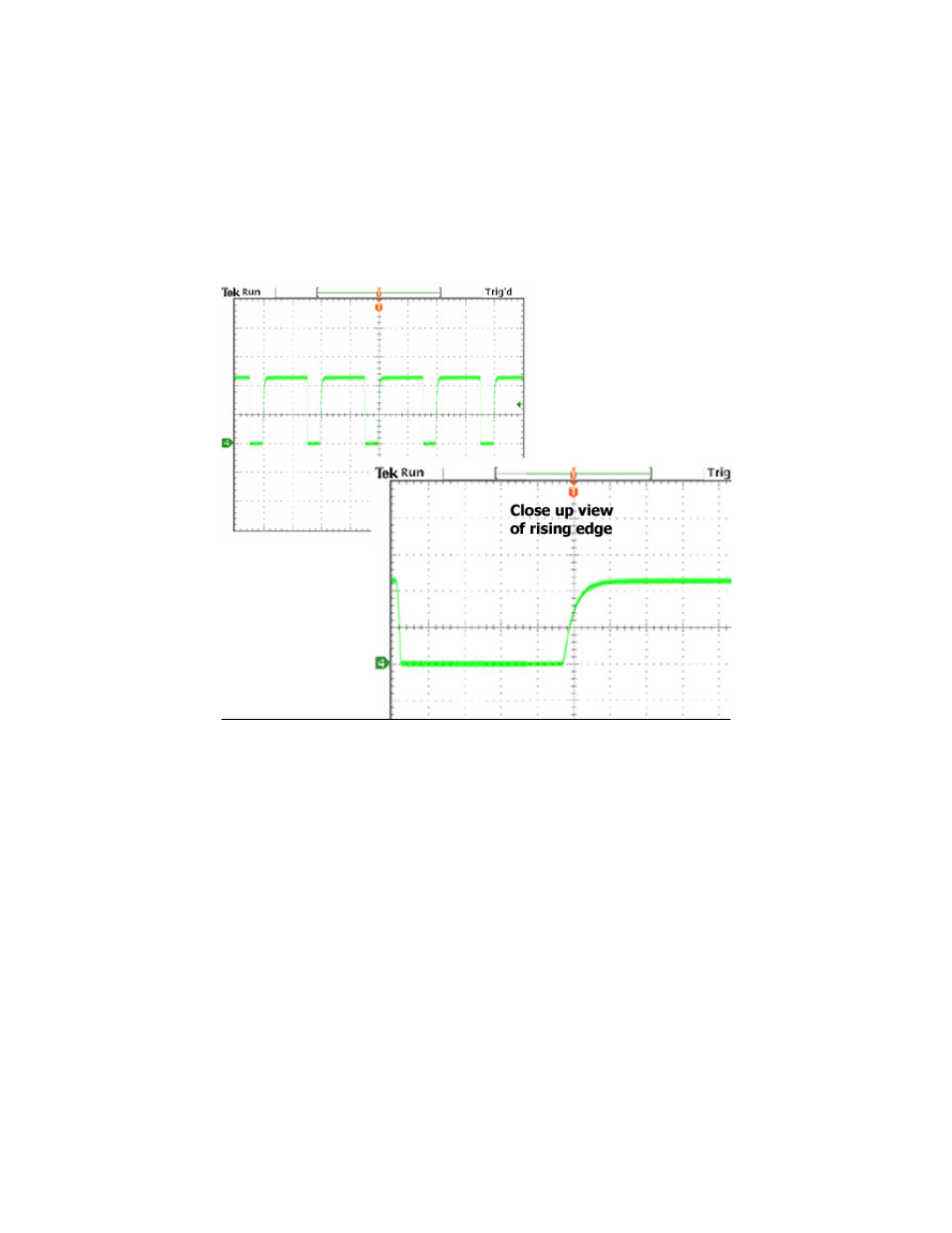

Below is an example of a good step pulse waveform where sensing the step on either edge
would be fine:
