Configuring The Settings

PLEASE READ

As of August 31, 2007, the IMD23 and DE23 units have new RoHS compliant boards along
with a few upgrades. Below describes the jumpers on the old revision:

Configuring Settings using Jumpers (for old non-RoHS products)

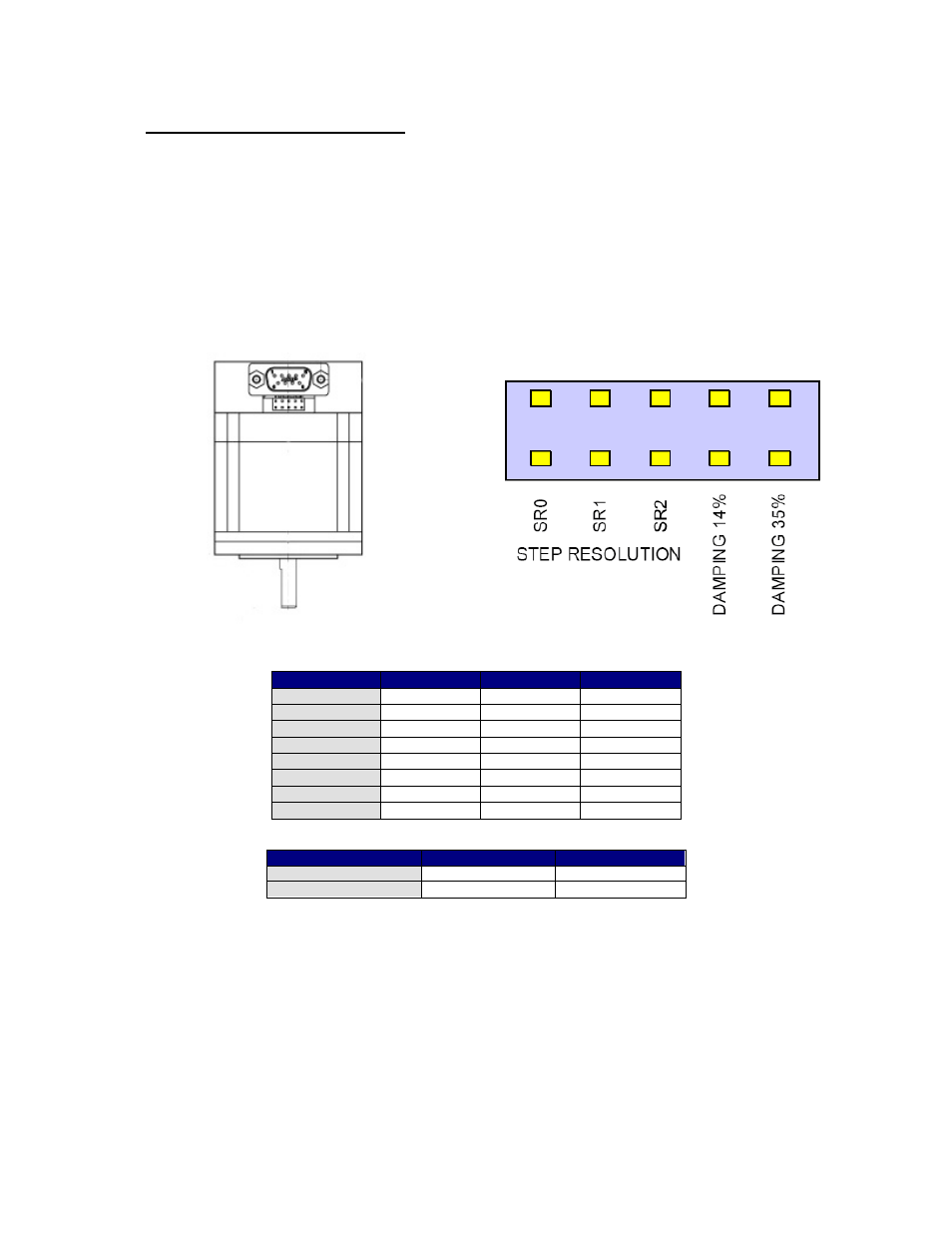

Orientation of Jumpers in relation to IMD23 unit

Jumper Pin Layout

RESOLUTION

SR0

SR1

SR2

2X

OFF

OFF

OFF

4X

ON

OFF

OFF

8X

OFF

ON

OFF

16X

ON

ON

OFF

32X

OFF

OFF

ON

64X

ON

OFF

ON

128X

OFF

ON

ON

256X

ON

ON

ON

Table: Step Resolution Jumper Settings

Damping Mode

Damping 14%

Damping 35%

14%

ON

OFF

35%

OFF

ON

Table: Damping Mode Jumper Settings

.

.

.

.

.

.

This manual is related to the following products:
