RMS Technologies

Page 17

Version 1.10

IMD23/23DE Manual

12/3/2007

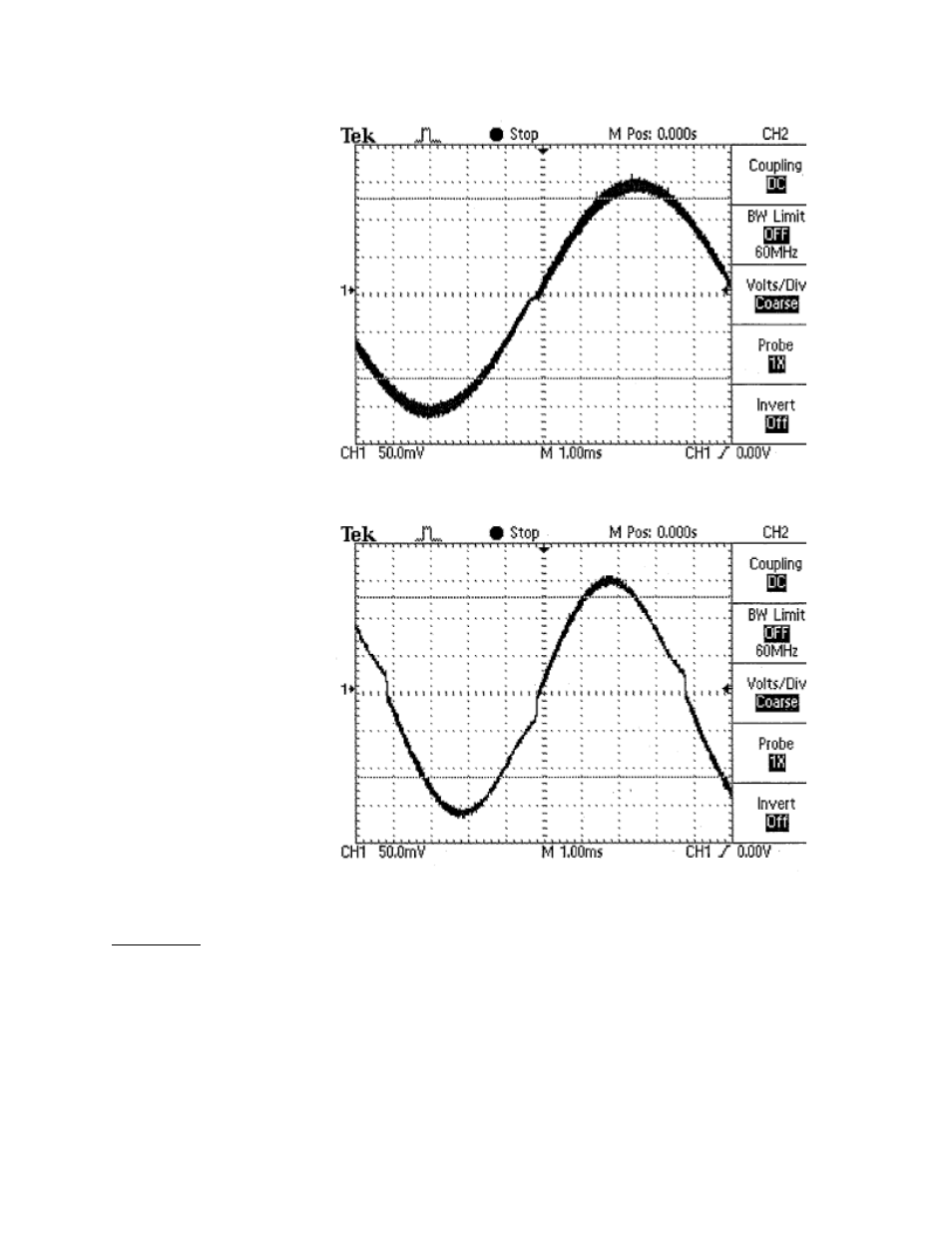

PF value 2

Slow speeds

Bad waveform




PF value 1

Fast speeds

Bad waveform





Step Sense

This feature allows for more compatibility with controllers and PLC’s. The IMD23 driver
board receives step pulses from a pulse train, normally a TTL signal, sensing each pulse,
one by one.

The “step sense” feature can choose where to sense each pulse: on the rising edge of the
step or the falling edge (also known as the positive or negative edge).

The switch has two options:
