RMS Technologies

Page 11

Version 1.10

IMD23/23DE Manual

12/3/2007

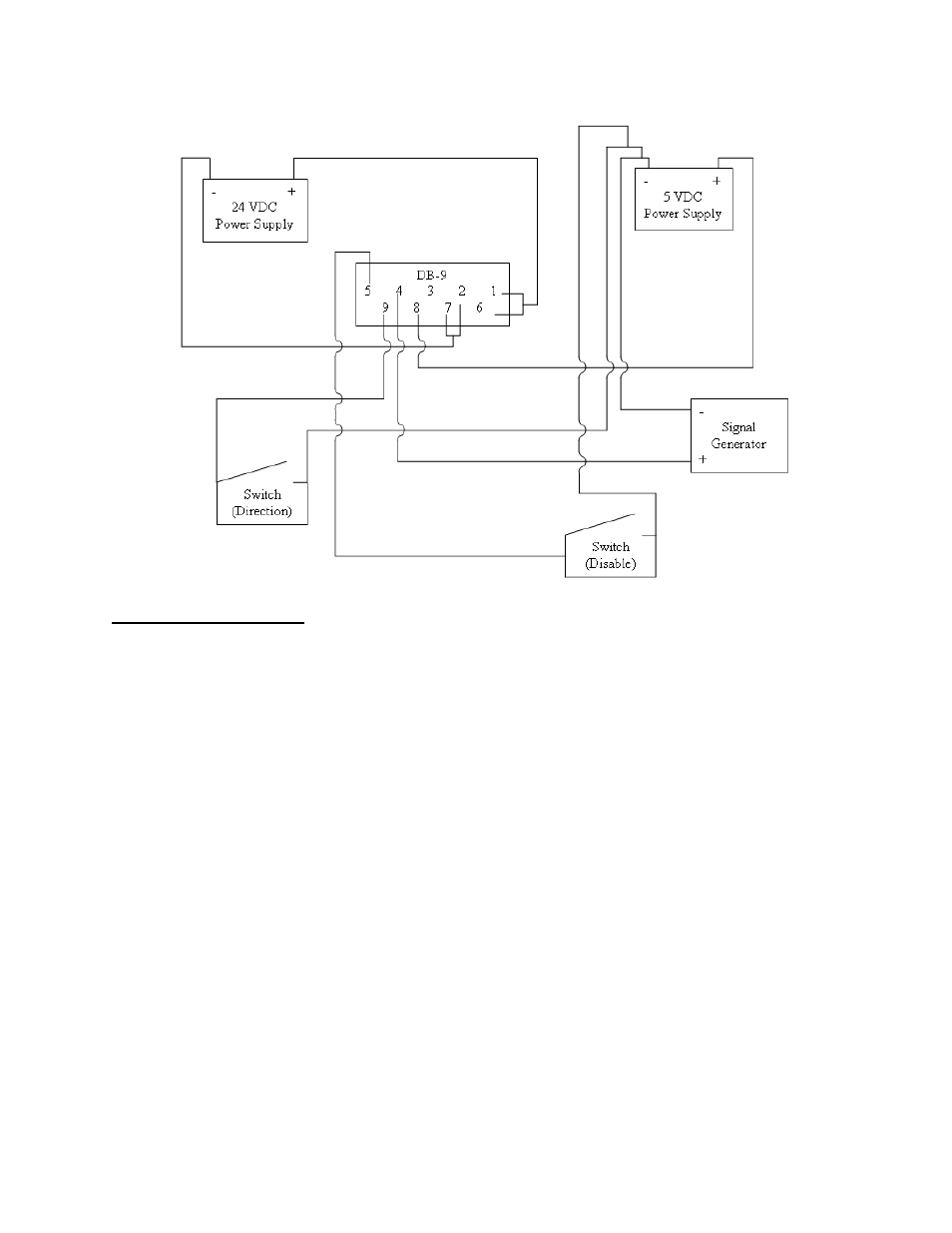

Example Connection Schematic – Connecting to a Signal Generator

Connecting the Power

The IMD23 requires a supply voltage of +12-48 VDC. First, connect the positive end of the
power supply to Power (Pins 1 & 6), and then connect the negative of the power supply to
the Ground (Pins 2 & 7) on the IMD23.

WARNING!

Be careful not to reverse the polarity from the power supply to the driver.

Reversing the connection will destroy your driver and void the warranty.
