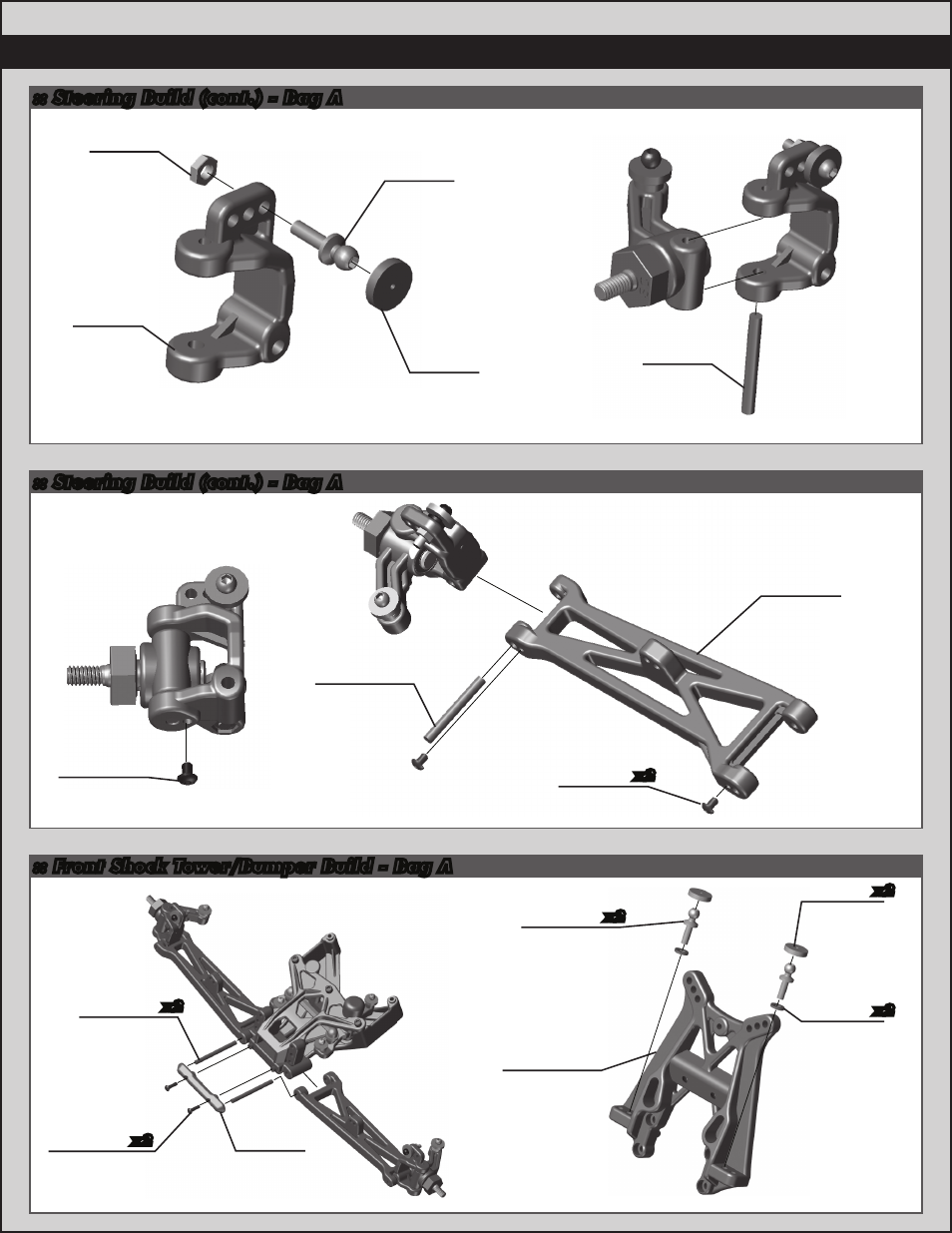

:: Steering Build (cont.) - Bag A
:: Steering Build (cont.) - Bag A
:: Front Shock Tower/Bumper Build - Bag A
7927
Outer
hinge pin
9621
Inner
hinge pin
6277
Balstud
.30 silver
(long)
9825
Front shock
tower
4334
2-56 x 5/16
bhcs
9645
2-56 x 1/8
bhcs
9645
2-56 x 1/8
bhcs
7260
4-40
small
plain nut
7922
Caster
block
(30˚)
7927
Outer
hinge
pin
x2
x2
x2
x2
x2
x2
Build left and
right sides!
Build left and
right sides!
6272
Foam
dust
cover
6272
Foam
dust
cover
9630
Ballstud
washer,
aluminum
(.030”)
9564
Front
hinge pin
brace
3983
Ballstud
.30 black
(long)
7917
Front arm
(left &
right)
