Team Associated SC10GT - Manual (Page 22)

22

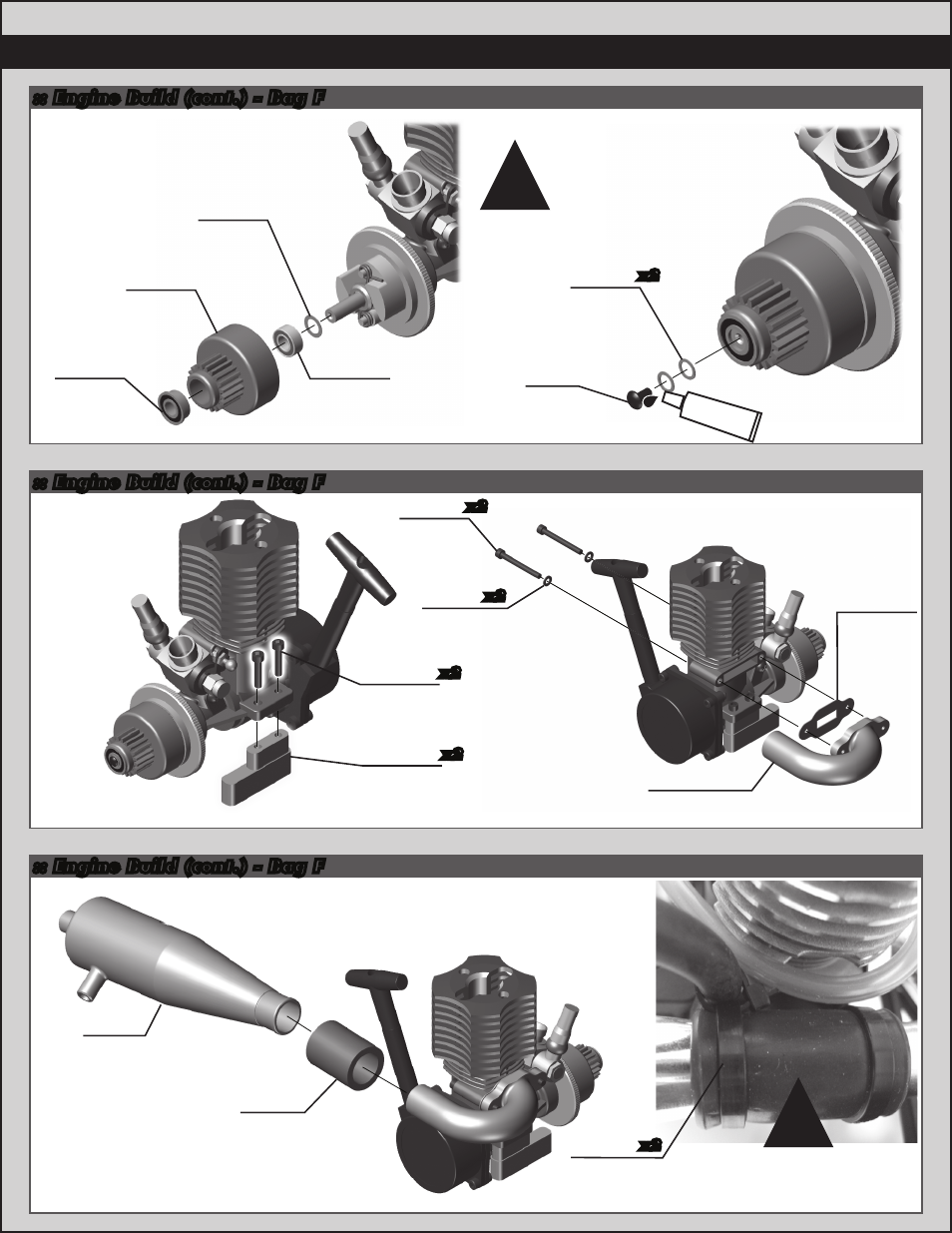

:: Engine Build (cont.) - Bag F
:: Engine Build (cont.) - Bag F
:: Engine Build (cont.) - Bag F
The amount of shims
may vary depending
on engine type.
Min. shims - 2
Max shims - 4
Shim until clutch spins
freely with minimal play.
!
Attach nylon wire ties to the
exhaust coupler. Attach nylon
wire tie from the pull start to
the exhaust coupler wire tie.
!
3719
6”
Nylon
wire ties
7731
Tuned
muffler
7733
Exhaust
coupler
7735
Side exhaust
manifold
7778
3x30mm
manifold
shcs
7778
Manifold
washer
2321
4.8mm
clutch
shim
2321
Clutch
shim
2321
3mm
bhcs
2320
5x9x3
flanged
bearing
7968
20T
clutch
bell
7734
Side
exhaust
manifold
gasket
2340
Engine
mounts,
pullstart
6925
4-40 x 1/2
shcs
2320
5x10x4
bearing
x2
x2
x2
x2
x2
x2
Build left and
right sides!
#1596
thread lock
