Team Associated SC10GT - Manual (Page 20)

20

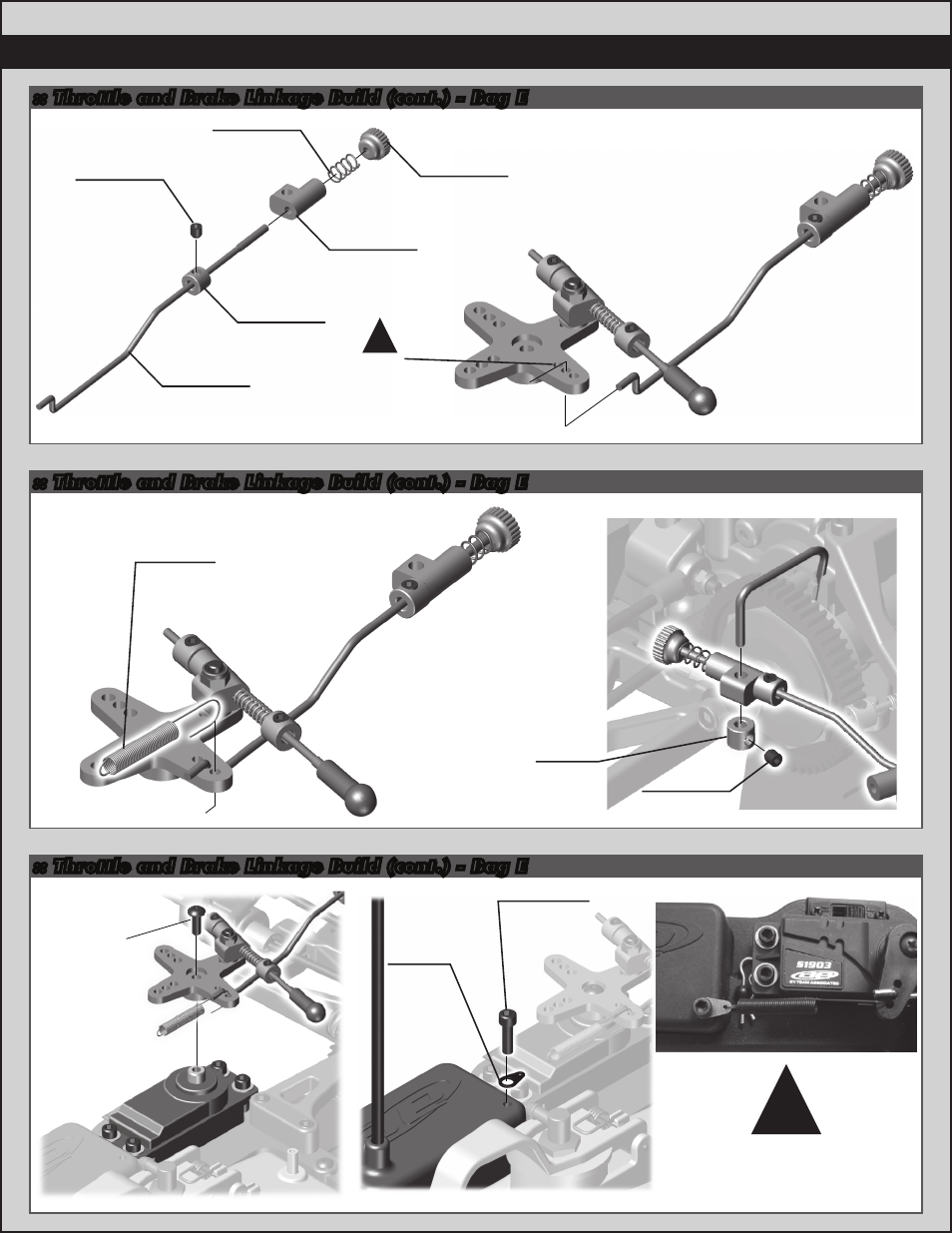

:: Throttle and Brake Linkage Build (cont.) - Bag E
:: Throttle and Brake Linkage Build (cont.) - Bag E
:: Throttle and Brake Linkage Build (cont.) - Bag E
6924
4-40 x 3/8
shcs
7562
Throttle
return
spring
Install throttlr
return spring to
throttle return
spring mount.
!
7975
Set
collar
7975
Set
collar
7562
Throttle
return
spring
mount
7975
Throttle
pivot
7975
Brake
adjustment
knob
7975
Brake
linkage
wire
25225
M3x3
setscrew
25225
M3x3
setscrew
8427
.018
spring
Screw
included
with servo
Use
small
hole
!
