Team Associated SC10GT - Manual (Page 4)

4

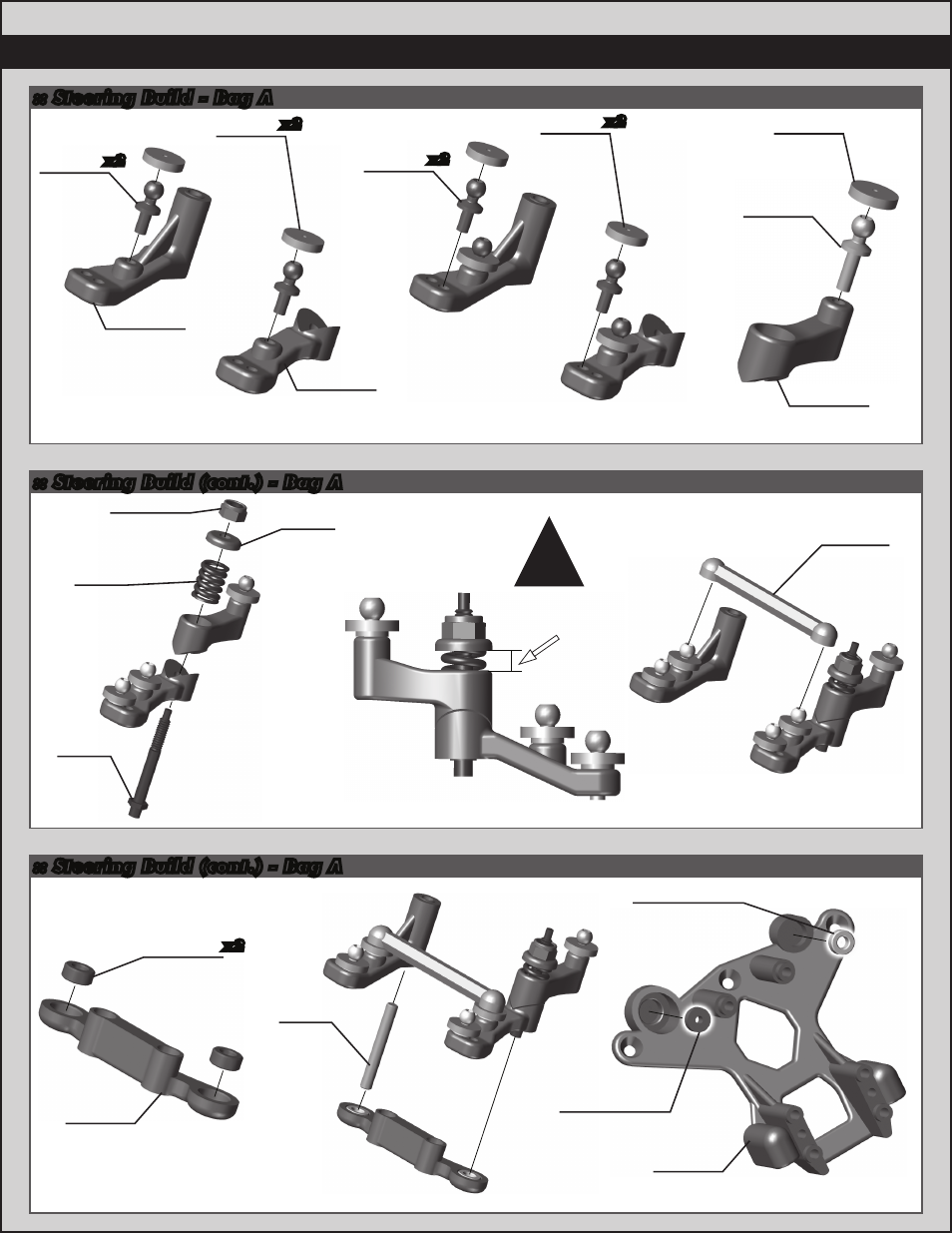

:: Steering Build - Bag A
:: Steering Build (cont.) - Bag A
:: Steering Build (cont.) - Bag A
7908
Idler
post
7908
Lower
bearing
cap
7893
Top
plate
7908
5/64” x 1/4”
bushing
2234
1/8” x 1/4”
bushing
7908
Servo
saver
post
7908
Servo
saver
spring
7908
Servo
saver
spring
7908
Steering
draglink
6276
Ballstud
.20 silver
(short)
6276
Ballstud
.20 silver
(short)
6277
Ballstud
.30 silver
(long)
6272
Foam
dust
cover
6272
Foam
dust
cover
6272
Foam
dust
cover
2234
1/8” x 1/4”
bushing
6629
5-40
locknut
7908
Servo saver
arm, lower
7908
Servo saver
arm, upper
7908
Idler arm
x2
x2 x2
x2 x2
Tighten to
2.5mm
(0.1”)
!
