Team Associated SC10GT - Manual (Page 15)

15

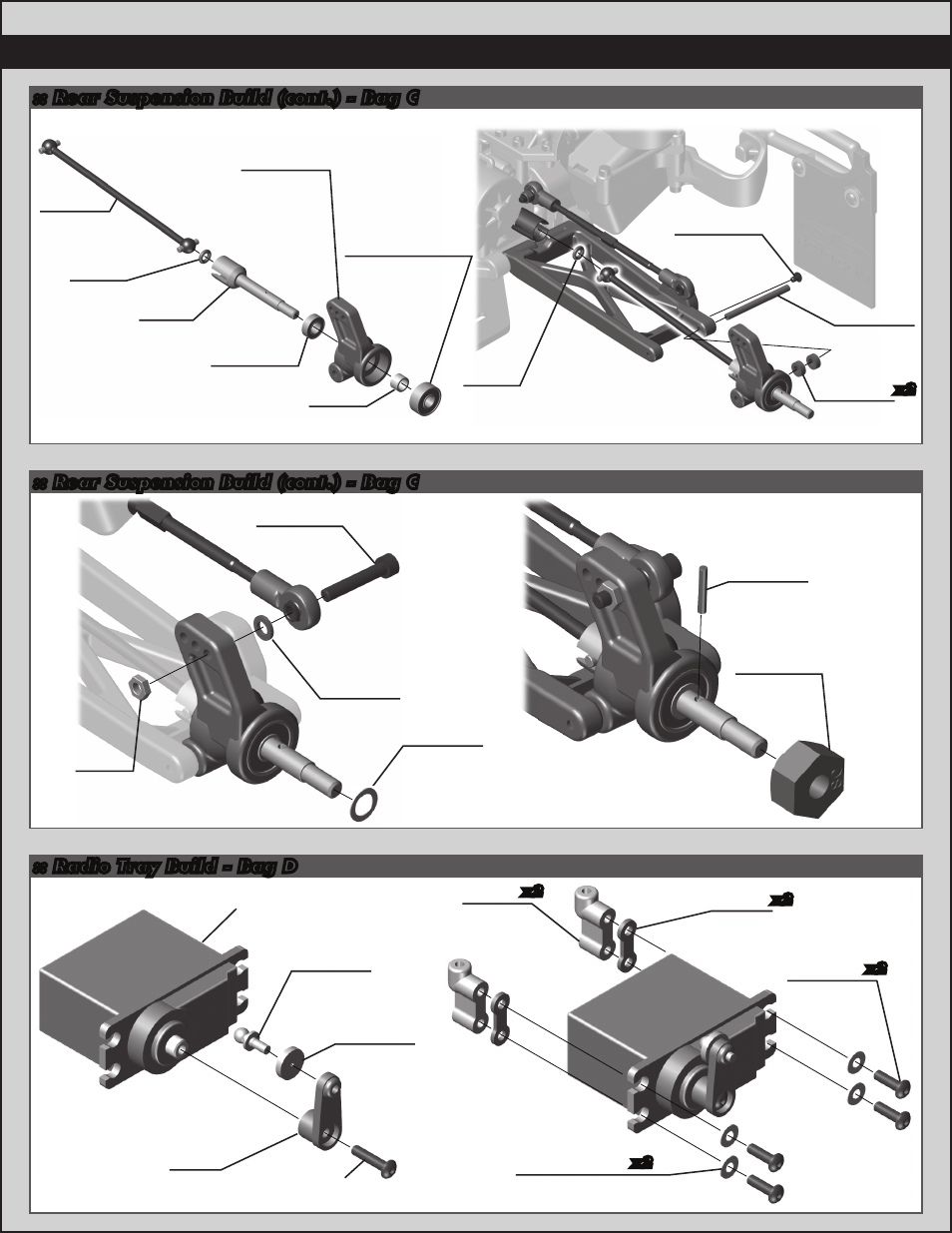

:: Rear Suspension Build (cont.) - Bag C
:: Rear Suspension Build (cont.) - Bag C
:: Radio Tray Build - Bag D
6917
4-40 x 3/8
bhcs
7337
.250 x .125 x .015
washer
7336
Servo
mounts
9180
Servo
horn
Steering
servo
Screw supplied
with servo
9883
Wheel hex
adapters
(thick)
7462
Dogbone
5407
Red
o-ring
5407
Red
o-ring
9645
2-56 x 1/8
bhcs
9670
3/16
rear
axle
3977
3/16 x 3/8
bearing
7935
.187x.50x.196
bearing
7933
Crush
tube
7260
3/16
plain
nut
7932
1.5 degree
rear hubs
(1 left &
1 right)
7336
Servo
mount
spacers
6272
Foam dust
cover
3981
Ballstud
.20 black
(short)
7369
1/16”
universal
roll pin
6926
4-40 x 5/8
shcs
9630
.030
washer
7368
3/16
axle
shims
9273
1/8 x 1/4
spacer
7927
Outer
hinge pin
x2
x2
x2
x2
x2
Build left and
right sides!
Build left and
right sides!
