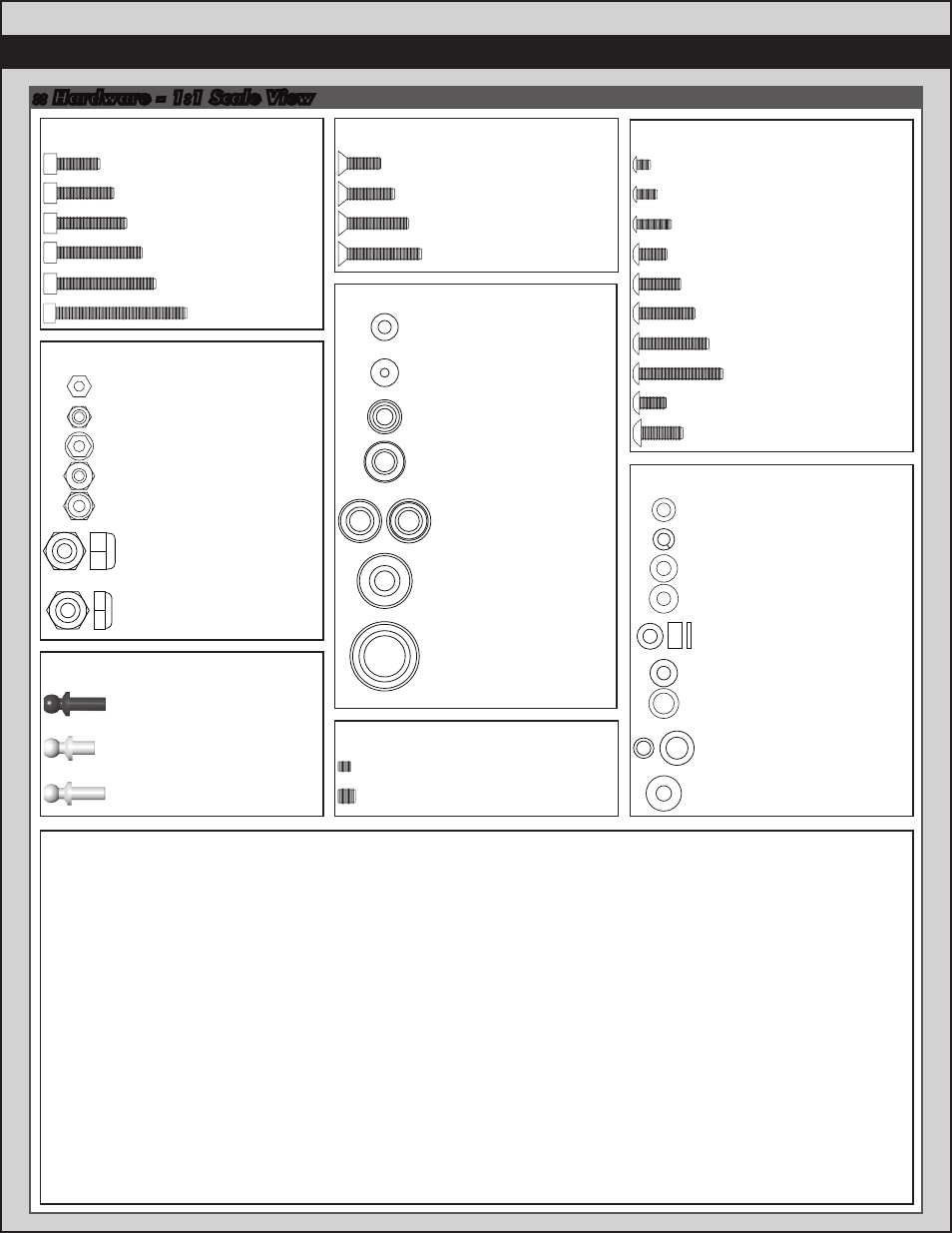

:: Hardware - 1:1 Scale View
3x3mm (25225)
4x4mm (7732)
Setscrew
Socket Head (shcs)
4-40 x 3/8 (6924)
4-40 x 1/2 (6925)
4-40 x 5/8 (6926)
4-40 x 3/4 (6927)
4-40 x 7/8 (7738)
3x30mm (7778)
Notes:
4-40 x 3/8 (6292)
4-40 x 1/2 (6922)
4-40 x 5/8 (6915)
4-40 x 3/4 (6923)
Flat Head (fhcs)
2-56 x 1/8 (9645)
2-56 x 3/16 (9146)
2-56 x 5/16 (4334)
4-40 x 1/4 (6288)
4-40 x 3/8 (6917)
4-40 x 1/2 (6918)
4-40 x 5/8 (7633)
4-40 x 3/4 (7413)
Clutch screw (2321)
6-32 x 3/8 (7773)
Button Head (bhcs)
Ballstuds
.30” Black short (3983)
Ti Nitride .30” - short (9799)
.20” Silver short (6276)
Ti Nitride .20” - short (9798)
.30” Silver long (6277)
Ti Nitride .30” - long (9796)
1/8 x 1/4 bushing (2234)
5/64 x 1/4 bearing (7908)
5/32 x 5/16 x .125 bearing
(6589)
3/16 x 3/8 RS bearing (3977)
Clutch bearings (2320)
.187 x .50 x .196 bearing
(7935)
3/8 x 5/8 RS bearing (3976)
Ball Bearings
4-40 small plain nut (7260)
4-40 aluminum lock nut (4449)
Shock mount nut (6472)
4-40 nut (6295)
5-40 lock nut (6629)
8-32 lock nut, steel (6952)
8-32 low profile lock nut, steel
(6953)
Nuts (lock/plain)
Ballstud washer (9630)
Manifold lock washers (7778)
.03 nylon washer (4187)
Gold washer (7337)
Shock downstops, travel limiters
(6466)
Dogbone spacer (9273)
3/16” axle shim (7368)
Clutch shims (2321)
Washer 3x8mm (89218)
Shims and Washers
