Team Associated SC10GT - Manual (Page 16)

16
7337
.250 x .125 x .015
Washer
:: Radio Tray Build (cont.) - Bag D
:: Radio Tray Build (cont.) - Bag D
:: Radio Tray Build (cont.) - Bag D

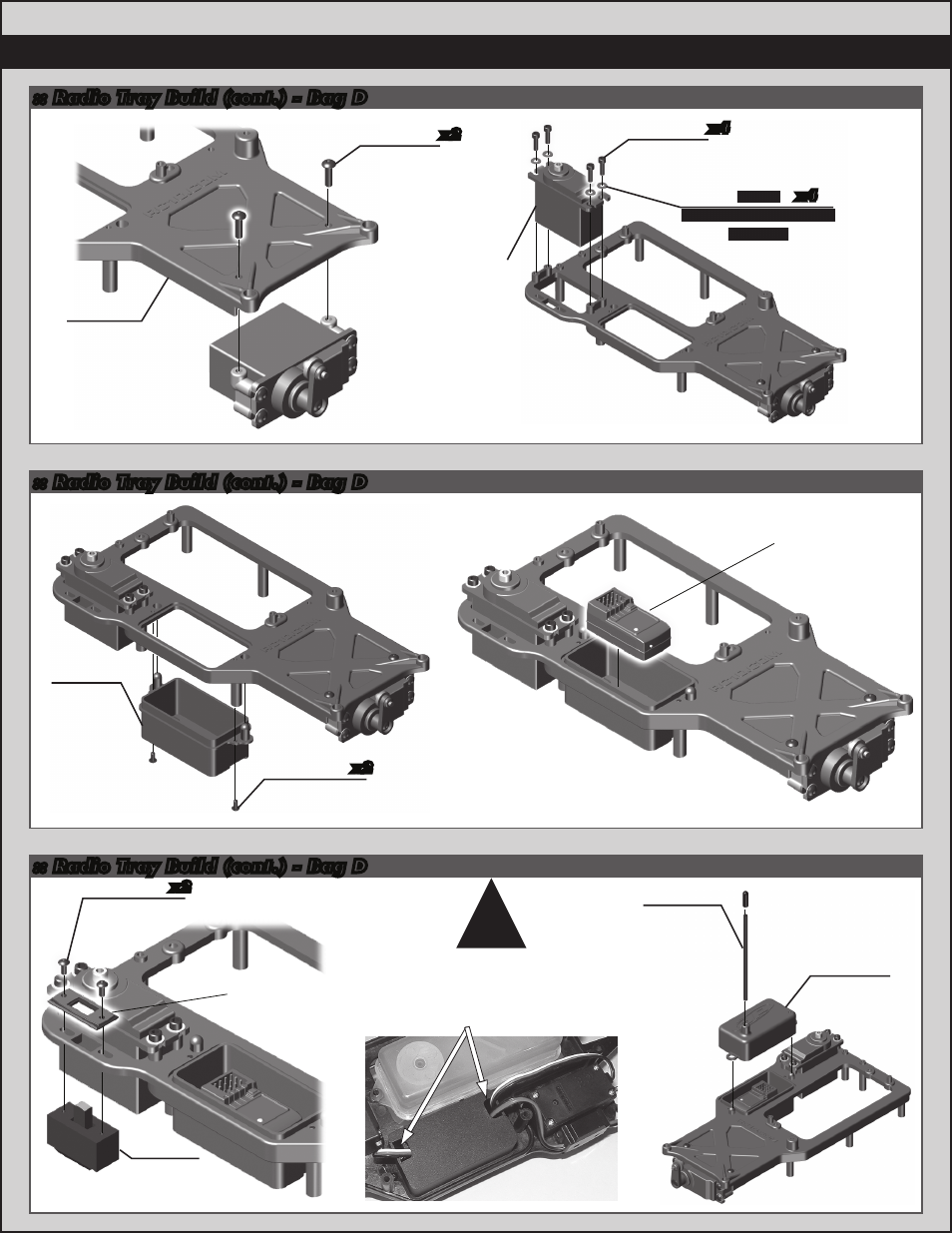

Route the two servos and the
receiver pack wires into receiver
box. To avoid pinching the wires,
route them around the standoffs
as shown.
!
6338
Antenna
tube and
cap
7896
Radio
box,
lower
7106
Radio
tray
(SC10GT)
Throttle
servo
Receiver
7896
Radio
box lid
9146
2-56 x 3/16
bhcs
9146
2-56 x 3/16
bhcs
29115
Switch
harness
tr-404a
6917
4-40 x 3/8
bhcs
6924
4-40 x 3/8
shcs
x2
x2
x2
x4
x4
On/Off
switch
plate
