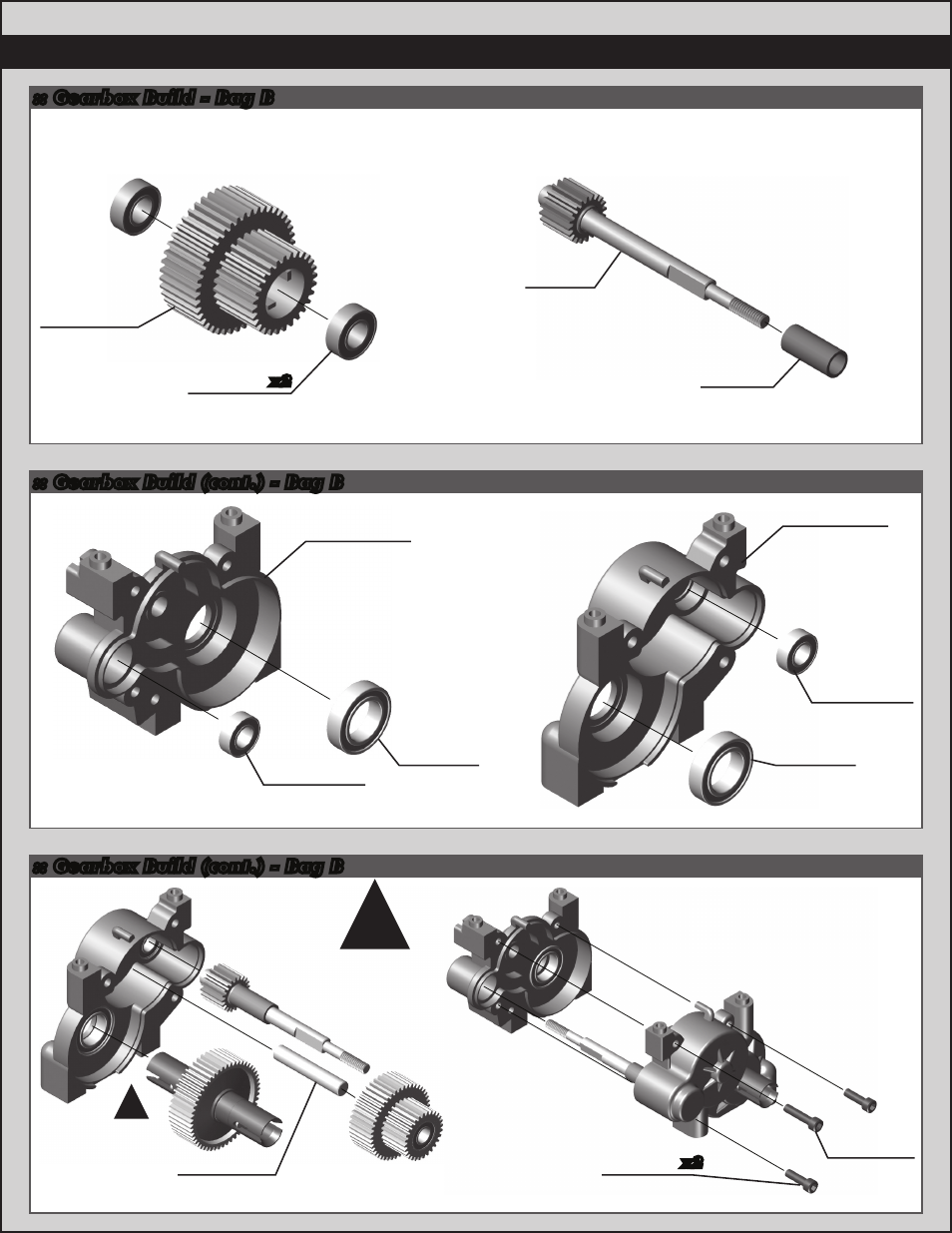

:: Gearbox Build - Bag B
:: Gearbox Build (cont.) - Bag B
:: Gearbox Build (cont.) - Bag B
6924
4-40 x 3/8
shcs
3977
3/16 x 3/8
ball bearing
7963
Idler gear
cluster 44-28T
7964
Idler gear
shaft
7961
top shaft
spacer
7960
top
shaft
7874
4-40 x 7/16
shcs
7945
Transmission
case
(right side)
7945
Transmission
case
(left side)
3976
3/8 x 5/8
ball
bearing
3976
3/8 x 5/8
ball
bearing
3977
3/16 x 3/8
ball bearing
3977
3/16 x 3/8
ball bearing
x2
x2
Note:
Diff adjustment
bolt head on
same side as
spur gear
!
!
