Team Associated SC10GT - Manual (Page 11)

11

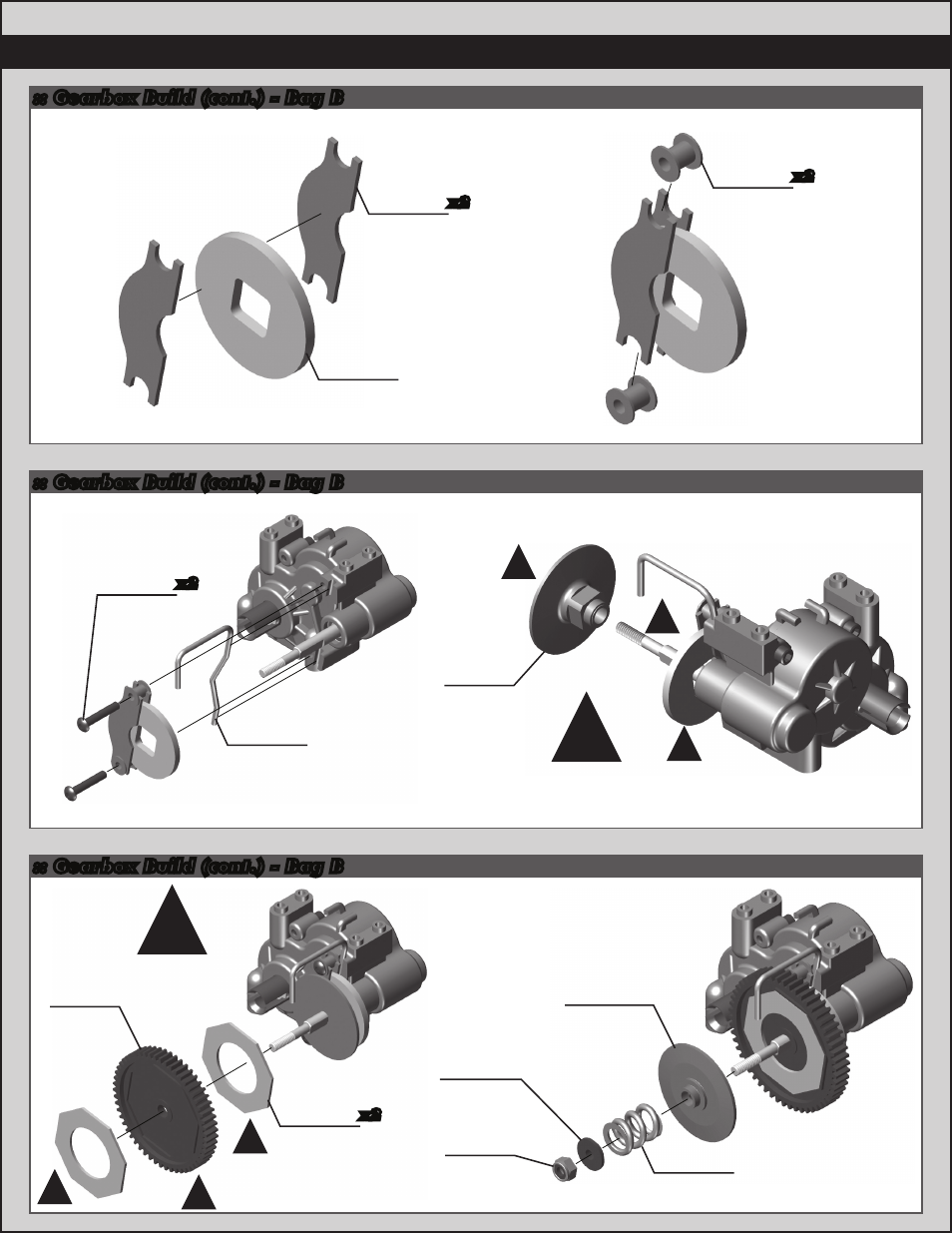

:: Gearbox Build (cont.) - Bag B
:: Gearbox Build (cont.) - Bag B
:: Gearbox Build (cont.) - Bag B
Align
pads into
spur gear.
Align the flat spots
on the inner slipper
plate to the brake
disc and top shaft.
!
!
6629
5-40
locknut
7486
V2 slipper
spring
7485
V2 slipper
plate
7955
54T
spur
gear
7953
Slipper
plate,
inner
7486
V2 slipper
spring
9603
Slipper
pads
7948
Brake
cam
7633
4-40 x 5/8
bhcs
7947
Brake
top hat
bushing
7949
Brake
pad
7950
Brake
disc
x2
x2
x2
x2
!
!
!
!
!
!
