Team Associated SC10GT - Manual (Page 26)

26

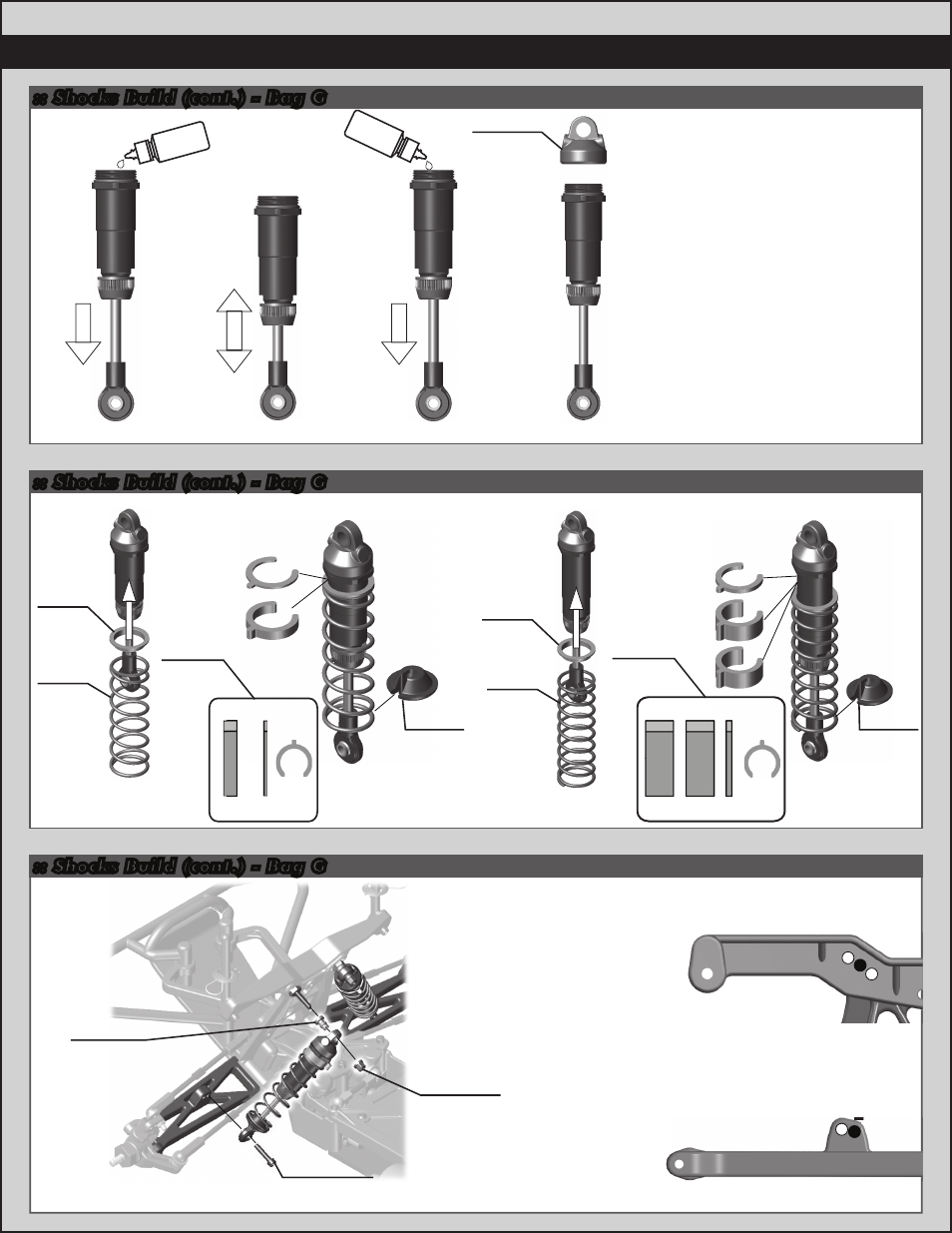

:: Shocks Build (cont.) - Bag G
:: Shocks Build (cont.) - Bag G
:: Shocks Build (cont.) - Bag G
1
3 2
I O
* Shock Bleeding Steps:
1. Pull shock shaft down.
2. Fill shock body 3/4 full with silicone fluid.
3. Slowly move the shock shaft up and
down to remove air from under piston.
4. Wait for bubbles to come to surface.
5. Fill shock body to top with silicone fluid.
6. Place several drops of oil in the cap and
on cap threads.
7. Install cap and tighten completely.
8. Slowly compress shaft all the way to
the top. If there is pressure at the top
of the stroke, there is too much oil or air.
You must bleed it out.
9. Slowly pull shaft down.
10. Unscrew the cap 3/4 turn and tilt the
shock at a slight angle.
11. Slowly compress the shaft to push out
excess oil and air. You should see
bubbles coming out from under the cap.
12. With the shaft compressed, tighten the
cap and re-check for pressure at the top
of the stroke. If there is still pressure,
repeat steps 9 thru11.
Step 7 Step 5-6 Step 3-4 Step 1-3
7425
Front
spring
(gold)
3.70lb
6480
Rear
spring
(green)
1.90lb
6475
Spring
collar
6473
Shock
bushings
6475
Spring
collar 8846
Preload
spacers
8846
Preload
spacers
6441
Shock
cap
(molded)
6472
Shock
mounting
nut
6475
Spring
cup
6475
Spring
cup
Shock fluid
30wt #5422
Shock fluid
30wt #5422
x1 x1
.12 .03 .25 .25 .06
x1 x1 x1
Front
Shock
Front
Shock
Rear
Shock
Build left and
right sides!
6925
4-40 x 1/2
shcs
