10.3.1 Current Calibration Factor

The current calibration factor shows the factor which is used to calculate the displayed block
temperature on the device.

Displayed Block Temperature = Instruments Sensor Temperature x Calibration Factor

To calculate a new calibration factor the instrument uses the following equation.

New Calibration Factor Calculation:

Calibribration = Expected Melting Point

Factor

Please see the following calibration procedure for more details on calibrating the instrument.

10.3.2 Calibration Procedure

The SMP40 allows the user to perform either a single or dual point calibration by using the following
procedure.

1 Using a suitable certified reference material,

perform a melt determination as described in
section 7.

2 If a dual point calibration is required, perform

a second melt determination on a certified
reference material with a different melting
point to that used in step 1.

3 If manual events need to be added to a result

file, they should be added using the steps
described on page 22 before starting the
recalibration procedure below.

4 In the Settings and Calibration screen select

the Manage device calibration section of the
screen.

5 In the Calibration screen press the “Calibrate

this device” button on the Command toolbar.

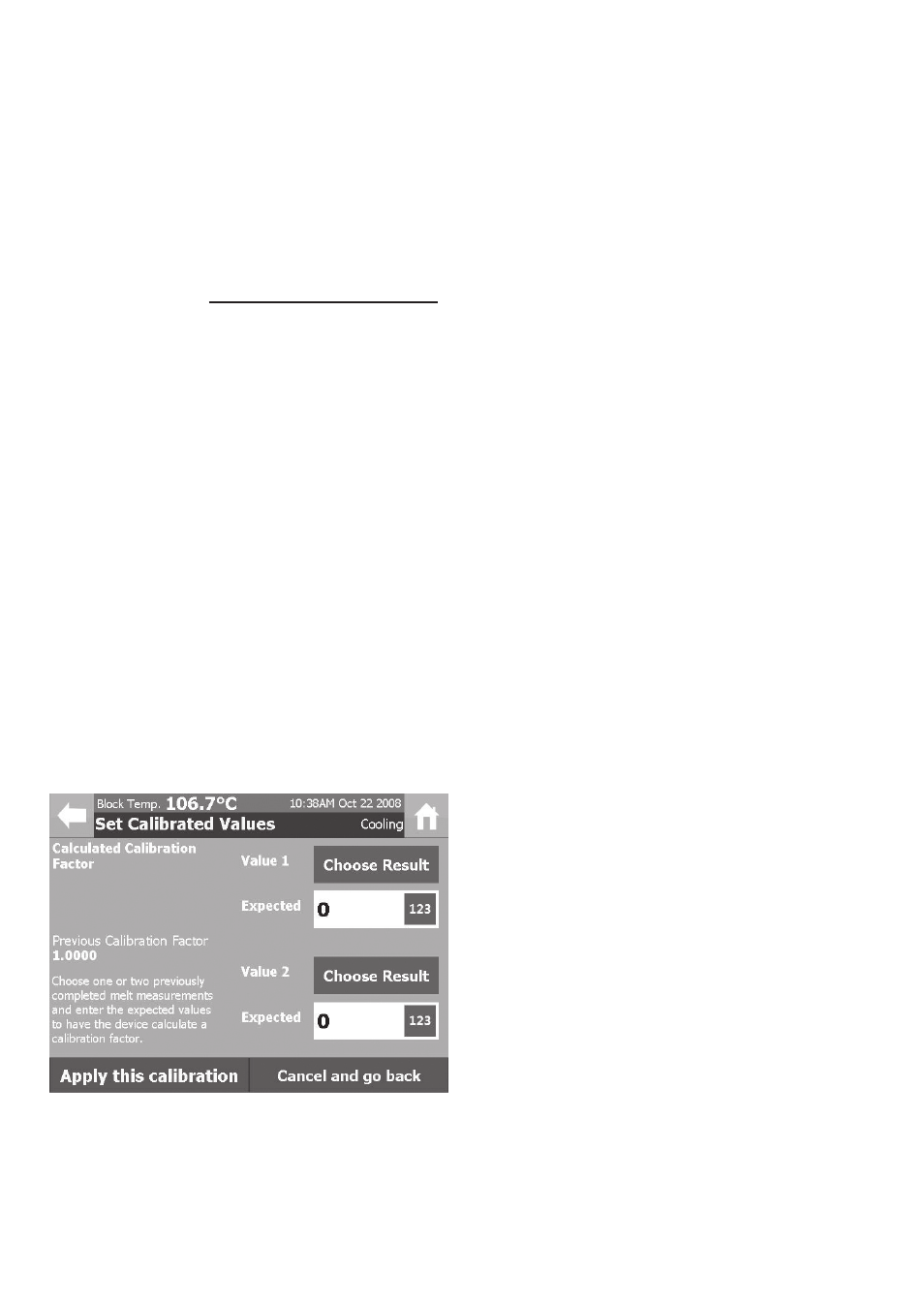

6 The Set Calibrated Values screen is used to

select the result files that will be used to
calibrate the instrument.

7 Select the first result to be used by pressing the

“Choose Result” field next to Value 1.

33

10.3.1 Current Calibration Factor

The current calibration factor shows the factor which is used to calculate the displayed block
temperature on the device.

Displayed Block Temperature = Instruments Sensor Temperature x Calibration Factor

To calculate a new calibration factor the instrument uses the following equation.

New Calibration Factor Calculation:

Calibribration = Expected Melting Point

Factor

Actual Melting Point

Results Calibration Factor

Please see the following calibration procedure for more details on calibrating the instrument.

10.3.2 Calibration Procedure

The SMP40 allows the user to perform either a single or dual point calibration by using the following
procedure.

1 Using a suitable certified reference material,

perform a melt determination as described in
section 7.

2 If a dual point calibration is required, perform

a second melt determination on a certified
reference material with a different melting
point to that used in step 1.

3 If manual events need to be added to a result

file, they should be added using the steps
described on page 22 before starting the
recalibration procedure below.

4 In the Settings and Calibration screen select

the Manage device calibration section of the
screen.

5 In the Calibration screen press the “Calibrate

this device” button on the Command toolbar.

6 The Set Calibrated Values screen is used to

select the result files that will be used to
calibrate the instrument.

7 Select the first result to be used by pressing the

“Choose Result” field next to Value 1.

33
