Dynalab SMP40 User Manual
Page 25

23

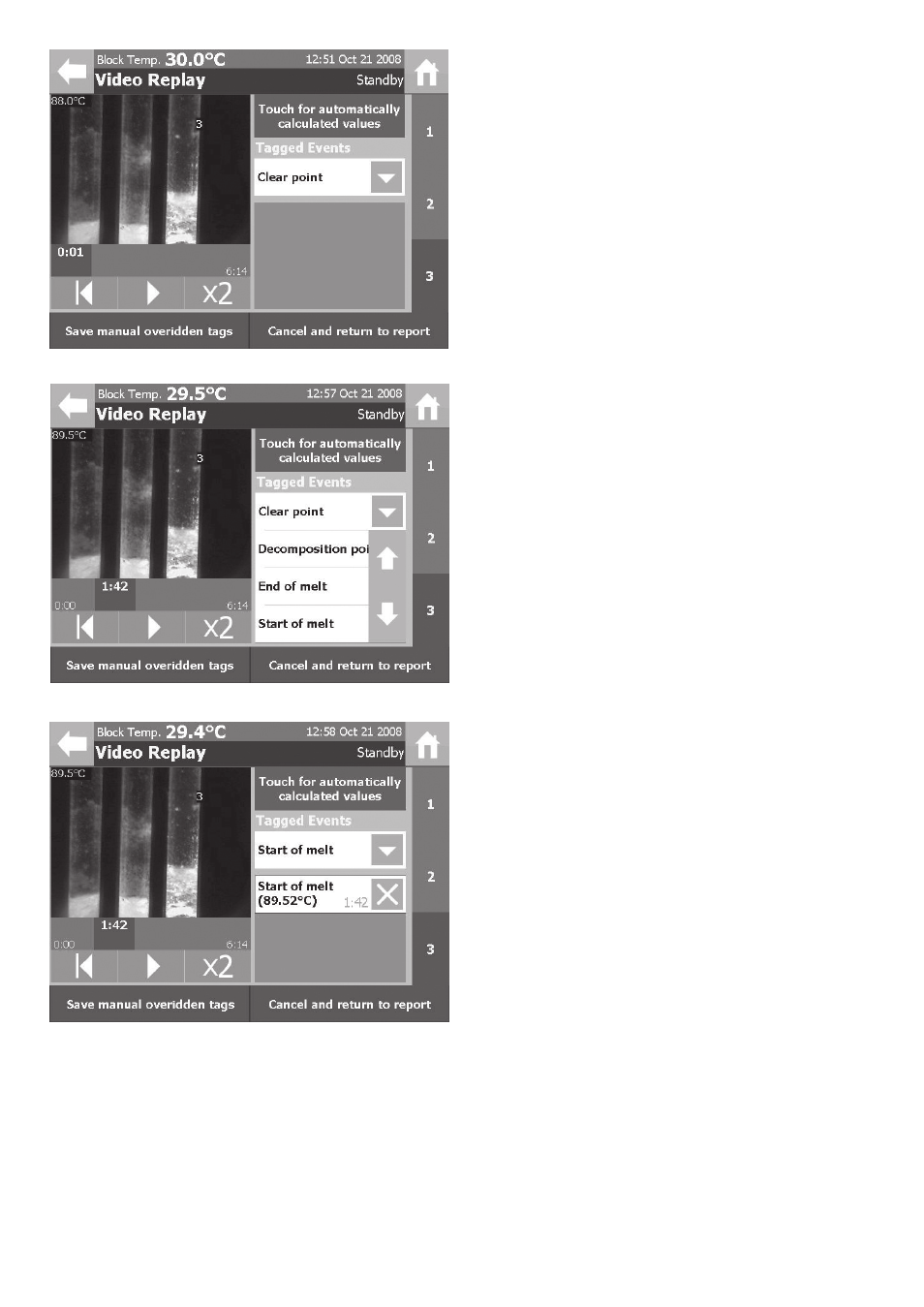

1 Select the capillary tube to which the manual
event is to be added by pressing the relevant
“Capillary selection” button.
2 Select the timeframe in the video file, where
the manual event is to be added, using the
video replay scrollbar and the video controls.
3 A manually determined event is added to the
timeframe by pressing the “Tagged Events”
field and selecting the required event from
the drop down list.
Manual events can only be used once in each
capillaries report. e.g. A capillary cannot
have more than one Meniscus Point.
4 Additional manual events can be added by
repeating the process described in steps 2
and 3.
5 If a manual event needs to be deleted,
pressing the X next to the manual event will
delete that event.
6 After the manual events have been added for
each capillary tube select “Save manual
overridden tags”. The screen will then go
back to the previously displayed screen.
