Appendix A – Specifications

Pump Model

RGT 10

RGT 12

Maximum Flow, GPM (LPM) @ 3450 RPM

14.5 (55.0)

23.3 (88.3)

Maximum Flow, GPM (LPM) @ 2875 RPM

11.0 (41.7)

19.0 (72.0)

Maximum Flow, GPM (LPM) @ 1725 RPM

4.5 (17.1)

9.8 (37.1)

Maximum Head, FT ( METERS)

427 (130)

693 (211)

Maximum Discharge Pressure, PSIG (Bar)

300 (20.7)

300 (20.7)

Maximum Suction Pressure, PSIG (Bar)

100 (6.9)

100 (6.9)

Suction Size

1” FNPT/FBSPT

1” FNPT/FBSPT

Discharge Size

1” FNPT/FBSPT

1” FNPT/FBSPT

Temperature Range, Neodymium

-150º to +300º F

-101º to +149º C

-150º to +300º F

-101º to +149º C

Temperature Range, Samarium

-150º to +450º F

-101º to +232º C

-150º to +450º F

-101º to +232º C

Maximum Viscosity* cp

100

100

Speeds RPM

3450, 2875, 1725

3450, 2875, 1725

Weight, LBS, (KG)

36 (16.40)

40 (18.1)

Maximum Power

5 HP

7-1/2 HP

*Consult factory for viscosity requirements higher than 100 cp

Appendix B – Bolt Pattern

1. Torque all six fasteners to

110 in-lbs (12.4 N-m)

first, following the sequence in the Figure 10

below.

2. Then torque all fasteners to the final value of

220 in-lbs (24.8 N-m)

, again following the same

sequence.

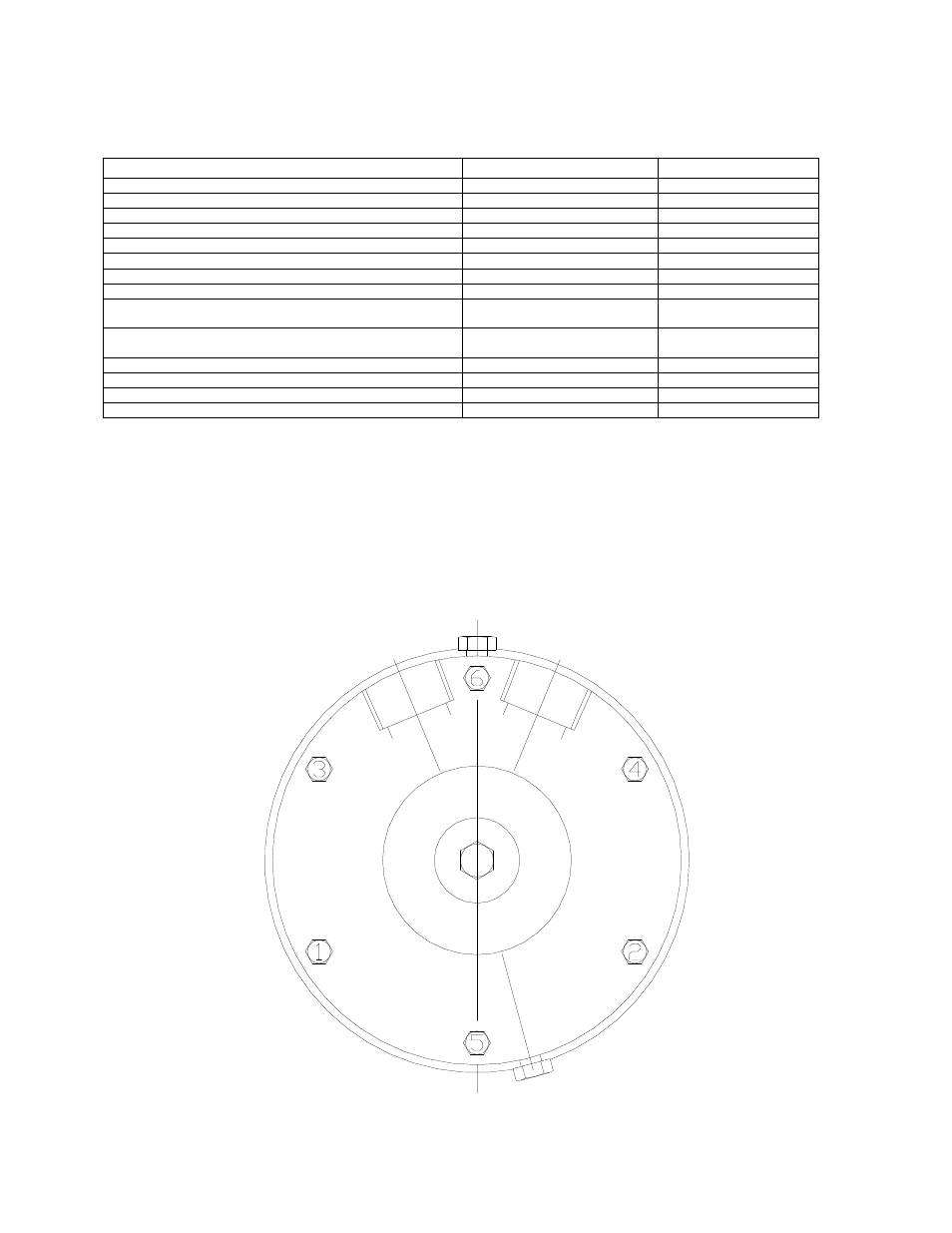

Figure 10
