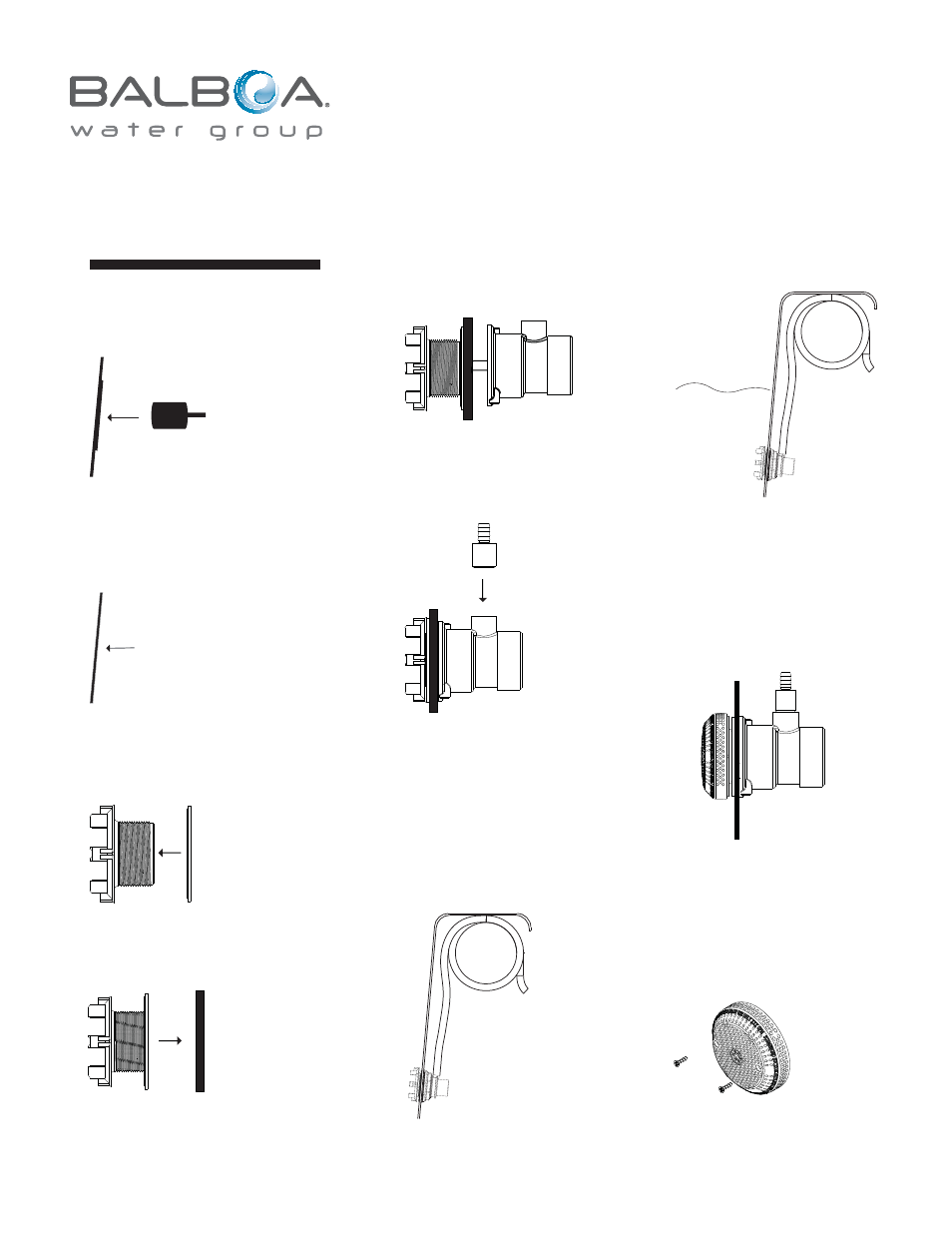

Step One

Do not locate suction outlets on seating areas
or on the brackets for such areas.

Step Two

Cut a 2

3/8”

hole into the spa wall for a flat gasket.

Step Four

Place gasket on wall fitting.

Step Five

Place wall fitting through the hole.

Step Eight

A tubing resistant to kink or
pinching shall be used
(or provided) for use with the
suction adaptor. Attach the
provided tubing 3/8” to the
barb on the adaptor fitting with
glue and a clamp to secure.

Step Three

Back face the backside of the wall as
necessary so that it is parallel to the
front side of the wall.

Step Six

Thread the adaptor with 1/2” socket onto
the wall fitting. Ensure 1/2”socket is
pointed upwards. Attach schedule 40
plumbing to the adaptor.

Step Seven

Glue barb into 1/2” socket on adapter.

Step Nine

Run 3/8” vinyl tubing above the
highest possible water level,
creating a Hartford loop, and
attach securely.

Step Ten

Place suction cover on wall fitting
with blank portion (no holes)
pointed down.

Step Eleven

Insert stainless steel screws in
cover and tighten securely.
(Do not over-tighten plastic
will strip).

VGB 2008

124 GPM Suction Flow

Installation Instructions

40751 Rev A May 21, 2012

Patented under U.S. Patent No. 8,191,183.

©2012 Balboa Water Group. All rights reserved.
