1a. Flat Gasket: Locate and drill a 3-1/8 in. hole in a vertical wall section of the spa or jetted tub. Be sure the area located is flat

and large enough for the entire lip of the flange. Make sure the wall thickness is uniform.

1b. “L” Gasket: Locate and drill a 3-3/8 in. hole in a vertical wall section of the spa or jetted tub. Be sure the area located is flat and

large enough for the entire lip of the flange. Make sure the wall thickness is uniform.

(NOTE: “L” Gasket

must be used with the Compensating Spacer.)

2. Install the gasket on the flange over the threaded area making sure the gasket is flush against the flange lip.

3. Insert the flange into the drilled hole from inside the spa or tub with the gasket located between the backside of the flange and

the mounting surface.

NOTE: Make sure the portion of the “L” gasket that is located in the hole between the flange and wall is not crimped or

folded.

NOTE: Silicone can be used in addition to the gasket, if desired.

4. Install the nut onto the flange threads and hand tighten the nut. Be sure flange is positioned square in the spa or tub. DO NOT

OVER TIGHTEN.

5. Glue the elbow, tee, or straight fitting into place. Be sure to orient the fitting in the desired direction before the glue sets up.

NOTE: Tee Inlet Fitting is to be installed/used as follows: a) one end of Tee is connected to pump and b) the other Tee end is

connected to other suction fitting or capped closed.

CAUTION

This is a PVC to PVC connection. Improper gluing or improper cement selection can cause leaks at glued

connection which can result in property damage.

WARNING

Install grate onto flange using screw provided and orient word “TOP” to top side of grate.

Failure to do so may result in serious personal injury including death.

6. Orient grate with the word “TOP” to the top side of the grate. With the cover held firmly in place, use the supplied stainless

steel screw to install the cover securely to the flange and press fit the deco plate screw cover into place.

White is standard. For custom colors add two digits to the ends of the part number:

(11) Black, (81) Silver, (WW) Gray.

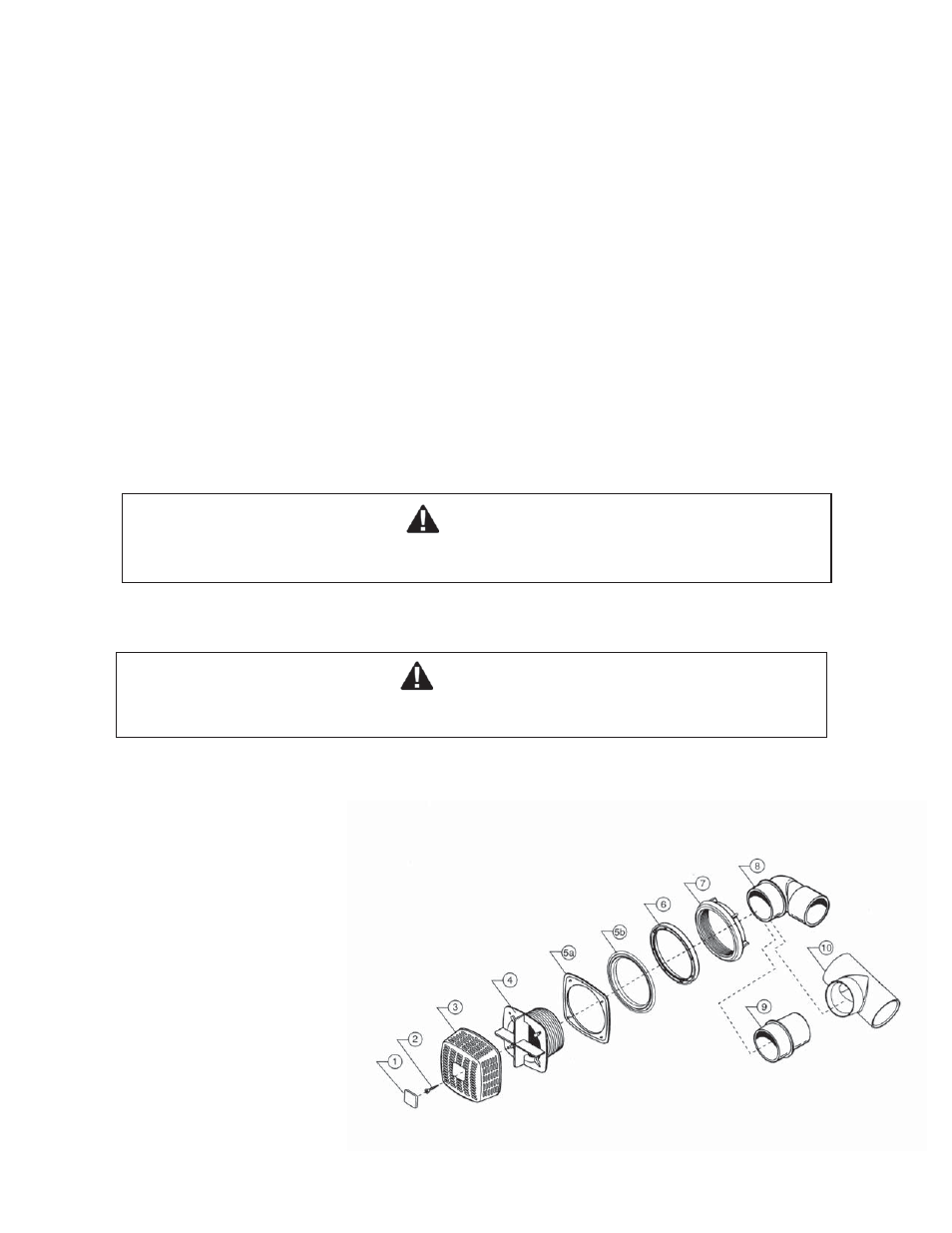

Item PIN No.

Description

1.

451195XX

Deco Plate

2.

98202900 Screw

3.

452260XX Grate

4.

47223000 Flange

5a.

46135600

Gasket .. Flat design

5b.

985713

Gasket .. "L" design

6.

981000

Compensating Spacer

7.

980700

Nut

8.

47223100

Adapter .. Elbow

9.

47223200

Adapter .. Straight

10.

943515

Adapter - Tee

452554XX

Hyper Flow complete assy. (adapter - straight)

452555XX

Hyper Flow complete assy. (adapter .. elbow)

99560100 Rev. E October 9, 2009

Parts List
