PCH 5120
12.1” industrial Panel PC
IP67 rated fully enclosure
5.4 PnP/PCI

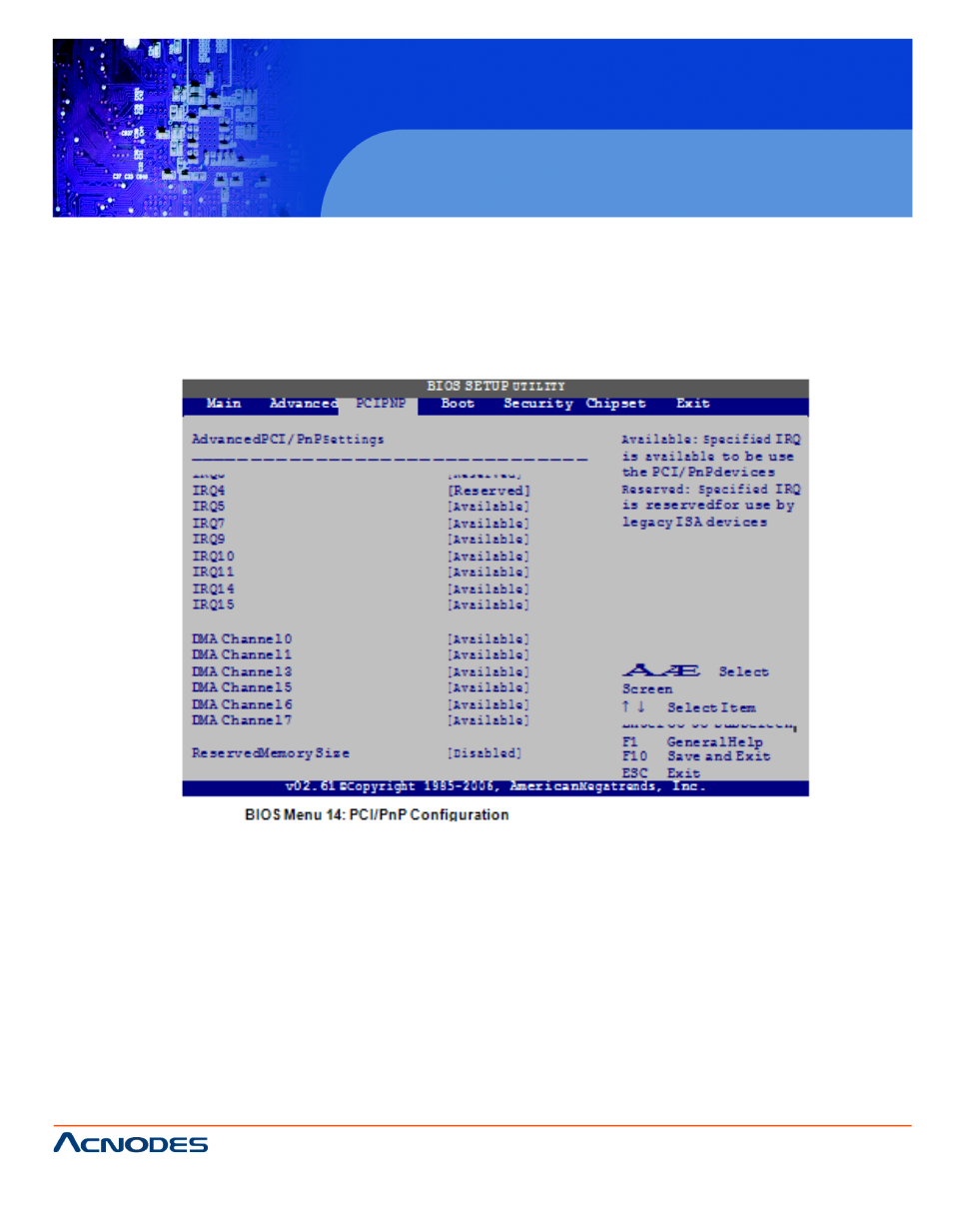

Use the PCI/PnP menu (BIOS Menu 14) to configure advanced PCI and PnP settings.
WARNING!
Setting wrong values for the BIOS selections in the PCIPnP BIOS menu may cause the system to malfunc-
tion.
ƒ IRQ# [Available]
Use the IRQ# address to specify what IRQs can be assigned to a particular peripheral device.
Available DEFAULT The specified IRQ is available to be used byPCI/PnP devices
Reserved The specified IRQ is reserved for use by Legacy ISA
devices
Available IRQ addresses are:
ƒ IRQ3
ƒ IRQ4
ƒ IRQ5
ƒ IRQ7
ƒ IRQ9
