12 English

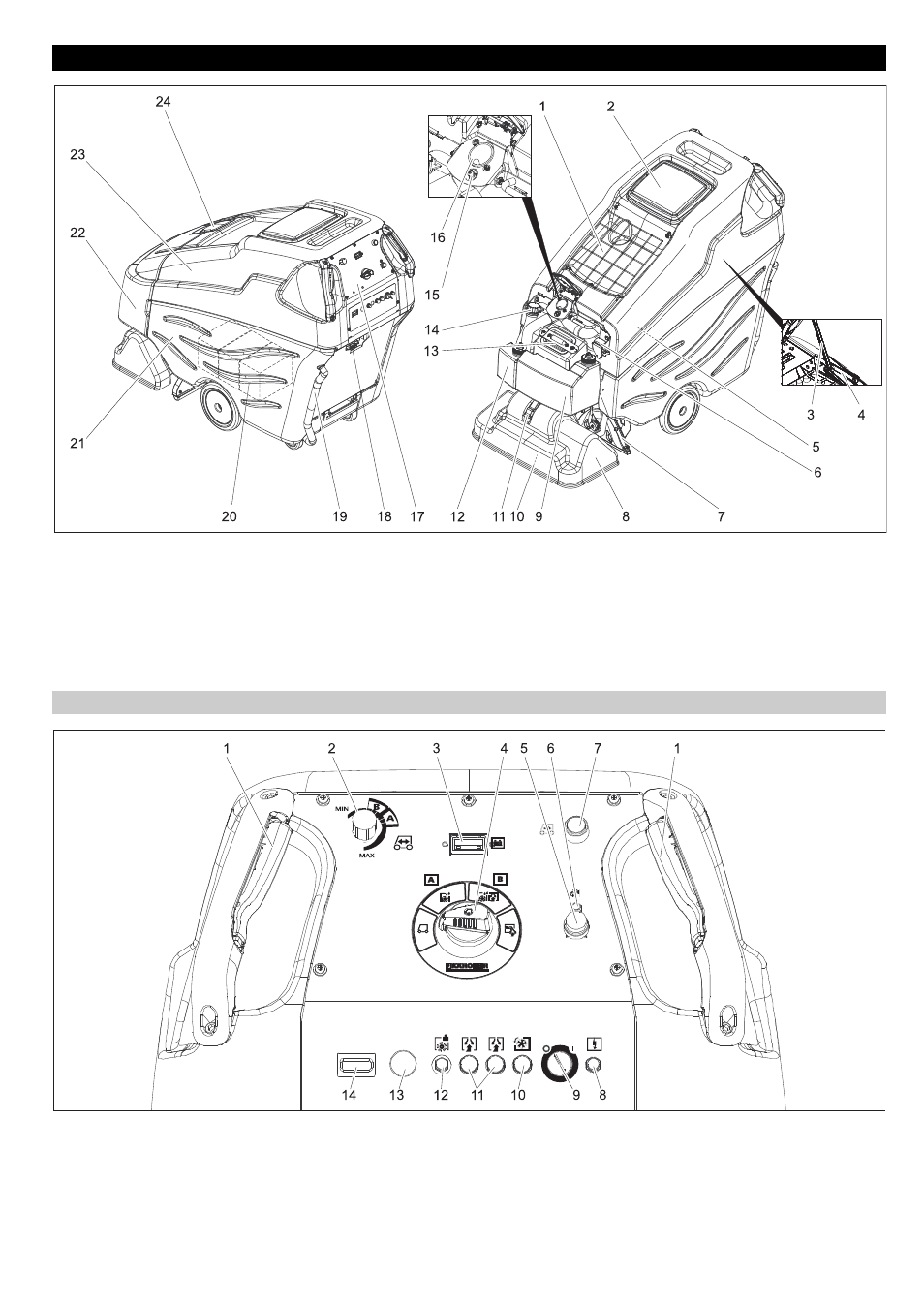

1 Rest
2 Cover dirt water reservoir
3 Waste water reservoir support
4 Locking
5 Fresh water strainer
6 Ventilation switch
7 Vacuum bar
8 Cleaning head 9 Detergent tank A
10 Nozzles
11 Lock for cleaning head housing
12 Detergent tank B
13 Filling nozzle for fresh water tank
14 Dirt water discharge hose
15 Detergent hose coupling
16 Coupling of suction hose 17 Operator console
18 Battery socket
19 Drainage hose for fresh water
20 Battery
21 Fresh water tank
22 Front panel
23 Dirt water reservoir
24 Cover of accessory tool
1 Sliding handle with drive switch
2 Rotating button for drive speed
3 Battery control display
4 Program selection switch
5 Key to apply detergent solution
6 Control lamp to apply detergent solution
7 Switch for reverse drive 8 Fuse for controls
9 Key switch
10 Fuse for traction drive
11 Fuse for suction turbine
12 Fuse for brush drive
13 Emergency-stop button (turn to release)
14 Operating hour counter
Operating and Functional Elements
Operator console
