Karcher KM 130-300 BAT - Manual (Page 16)

- 3
1 Driver cabin (optional)
2 Lashing point (4x)
3 Roller brush access
4 Front wheel
5 Side brushes
6 Lighting system (optional)
7 Waste container
8 Lock of appliance hood
9 Windshield wiper (option)
10 Lock lever of cab
11 Engine cover
12 Rear wheel
13 Cab lock
14 Beacon lamp
15 Brush roller adjustment (not pictured)
16 Battery set
1 x 36 V, 360 Ah
17 Battery socket
1 Programme switch
2 Function keys
3 Multifunction display
4 Fuse box - work station
5 Steering wheel
6 Ignition lock
Position 0: Switch off engine
Position 1: Ignition on
Position 2: Start the engine
7 Parking brake
8 Seat (with seat contact switch)
9 Brake pedal
10 Drive pedal
1 Work lights on/off (option)
2 Beacon lamp on/off
3 Horn
4 Filter dedusting
5 Blinker switch
6 Blower
7 Open/close container lid
8 Raise/lower waste container

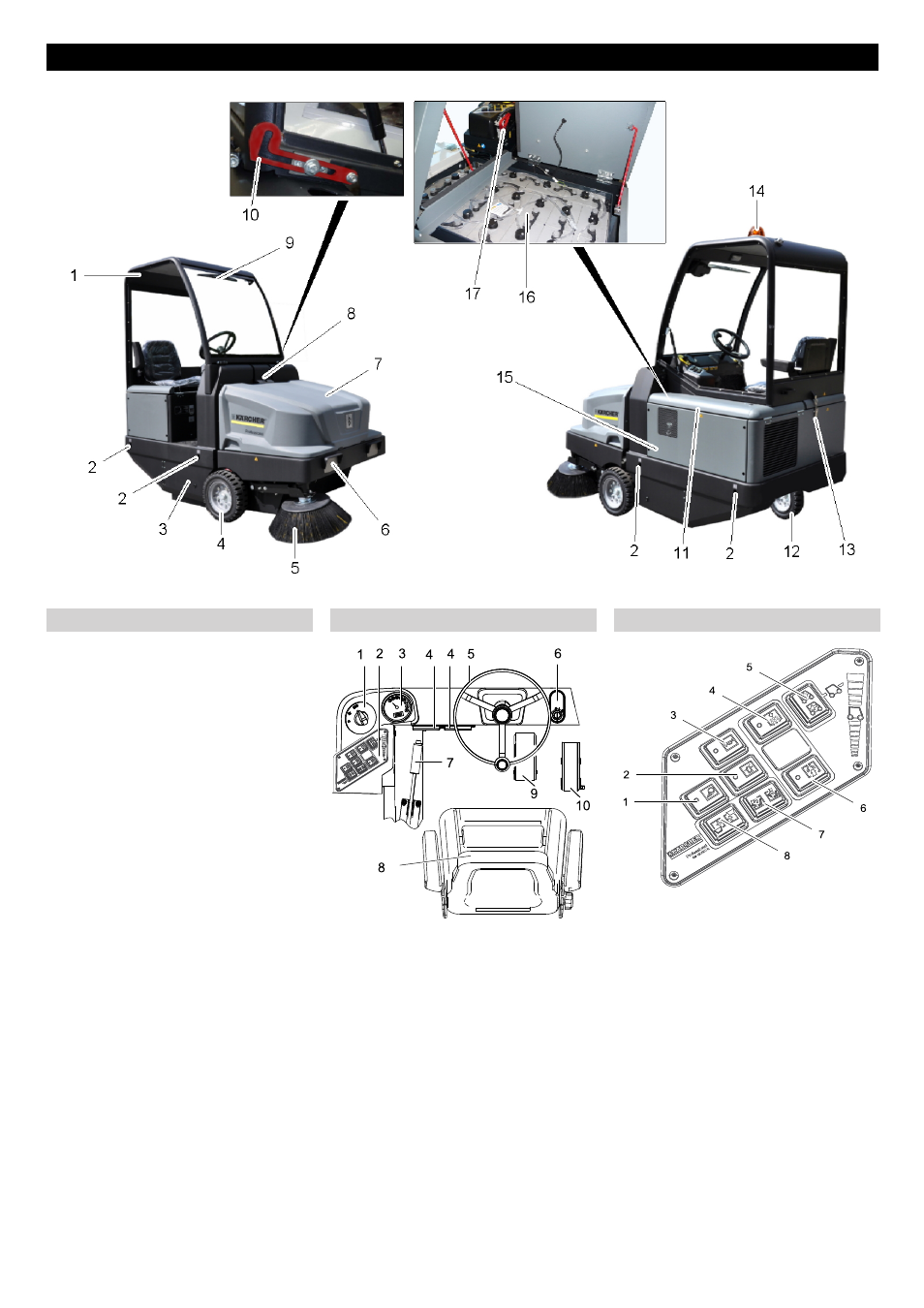

Operating and Functional Elements
Illustration of sweeper Operating field Function keys
16 EN
